Basic Diagnostic Procedure - With VDC

Basic Diagnostic Procedure

PROCEDURE

CAUTION: Remove foreign matter (dust, water, oil etc.) from the VDCCM & H/U connector during removal and installation.

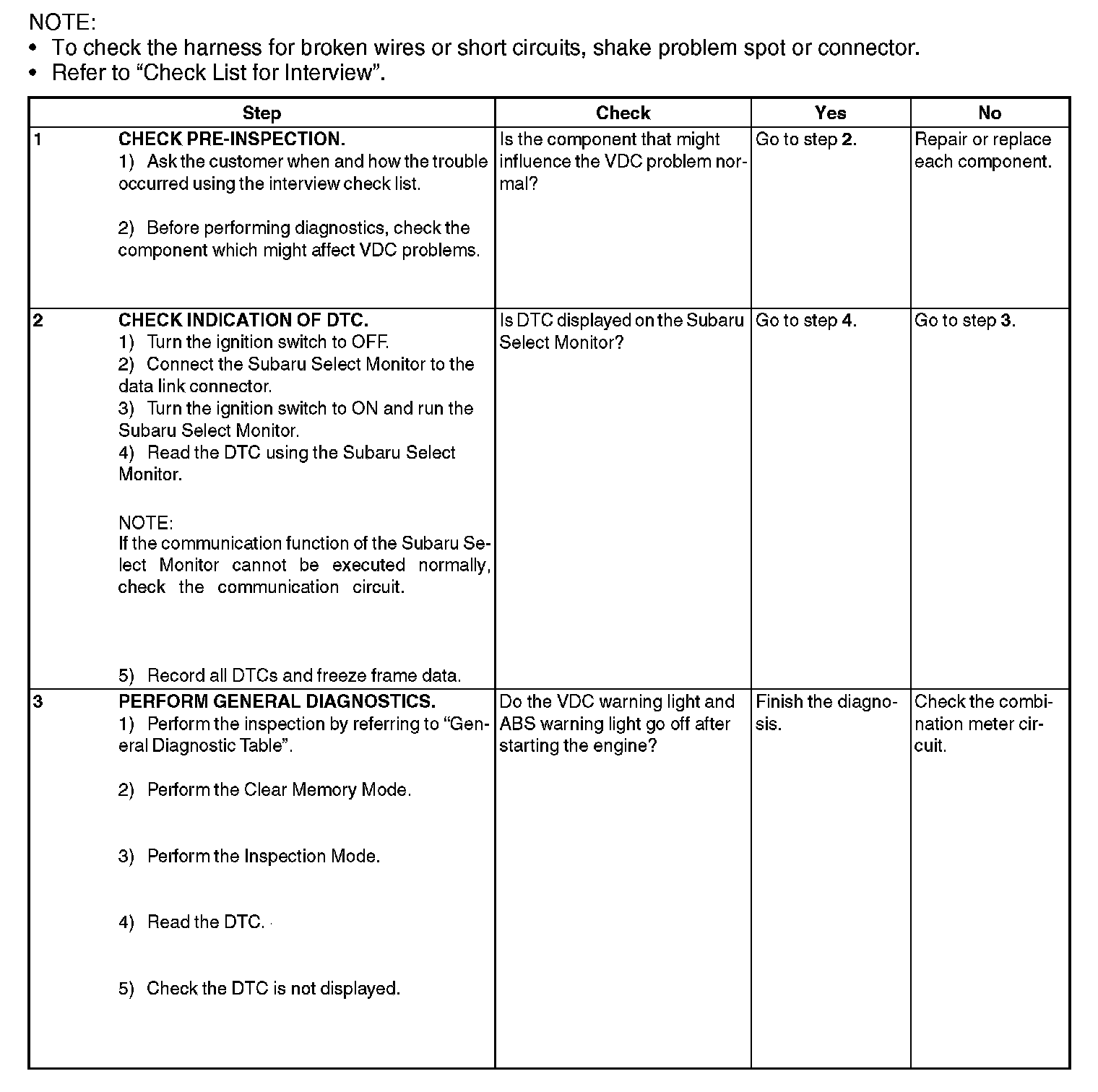

Step 1-Step 3:

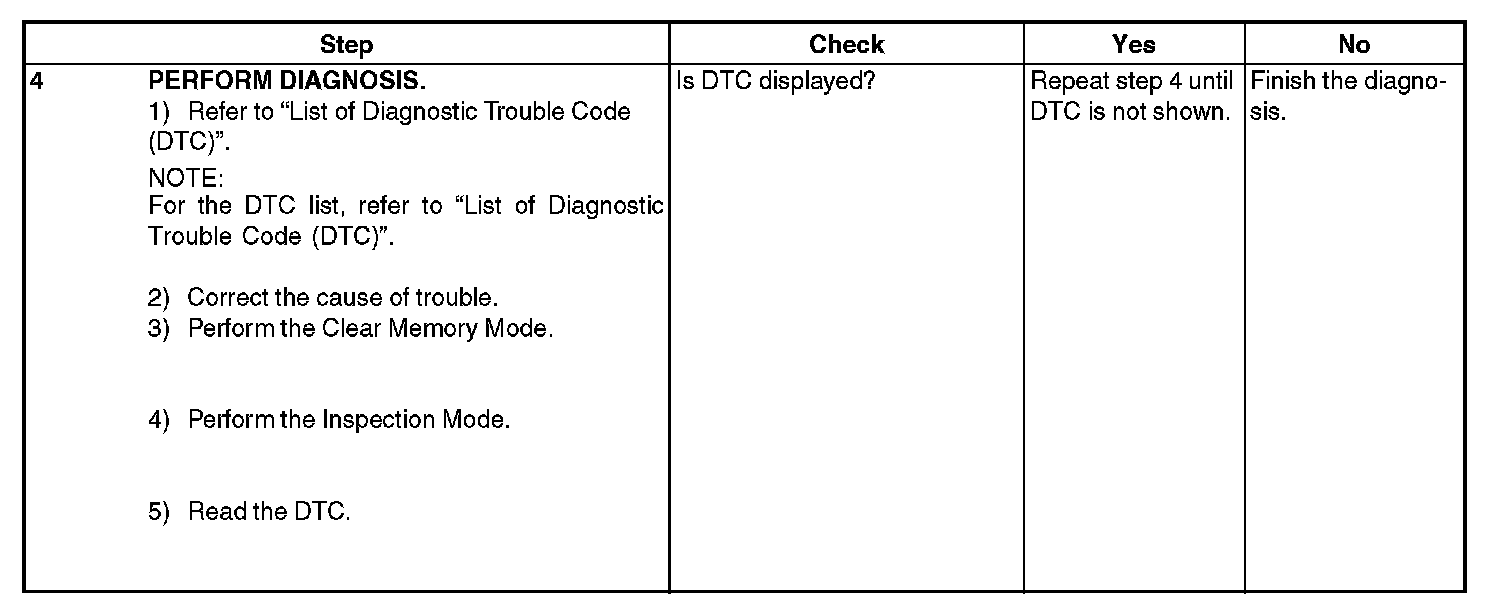

Step 4:
