Basic Diagnostic Procedure - With ABS

Basic Diagnostic Procedure

PROCEDURE

CAUTION: Remove foreign matter (dust, water, oil etc.) from the ABSCM & H/U connector during removal and installation.

NOTE:
^ To check harness for open or short circuits, shake the suspected trouble spot or connector.
^ Refer to "Check List for Interview".

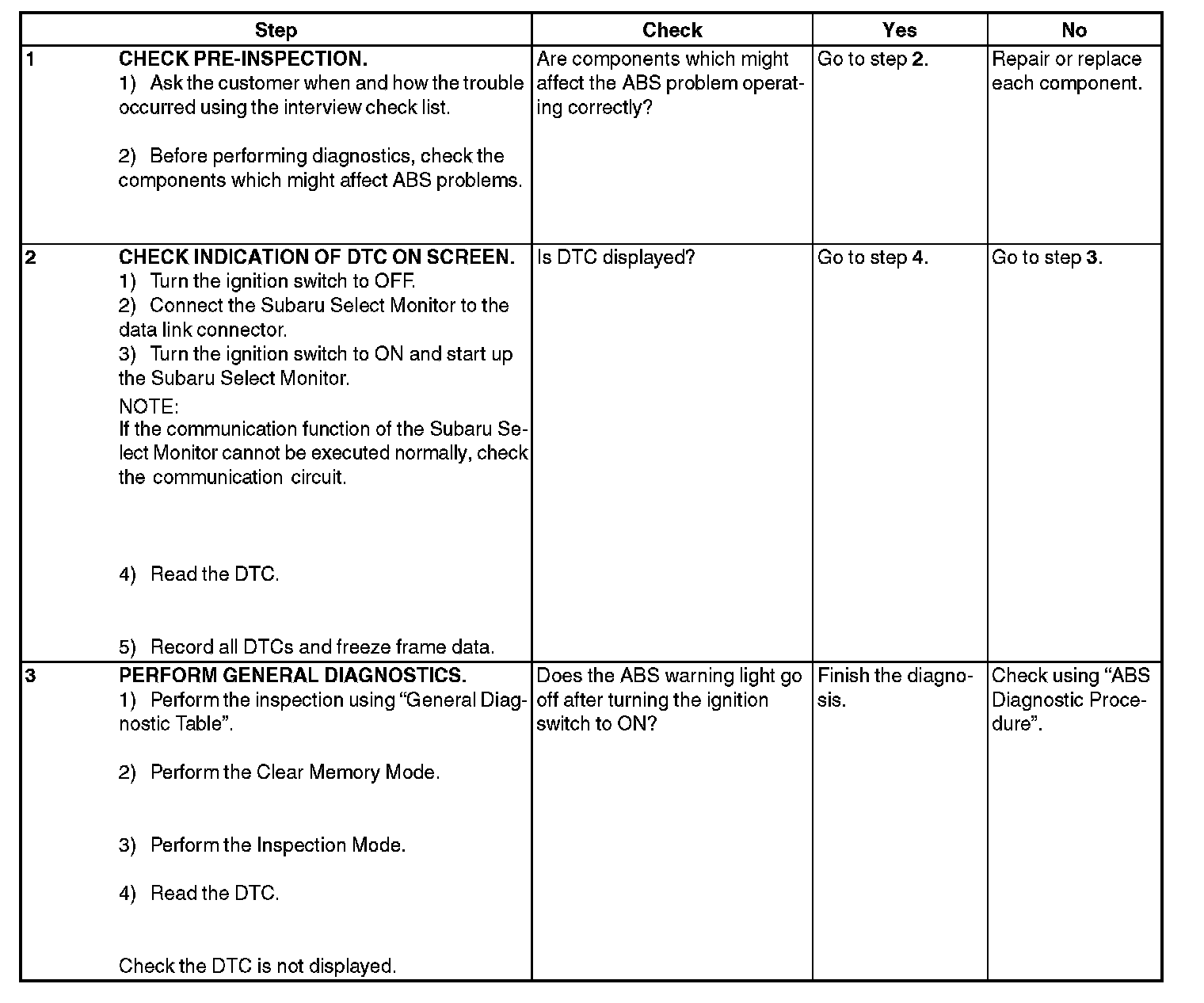

Step 1-Step 3:

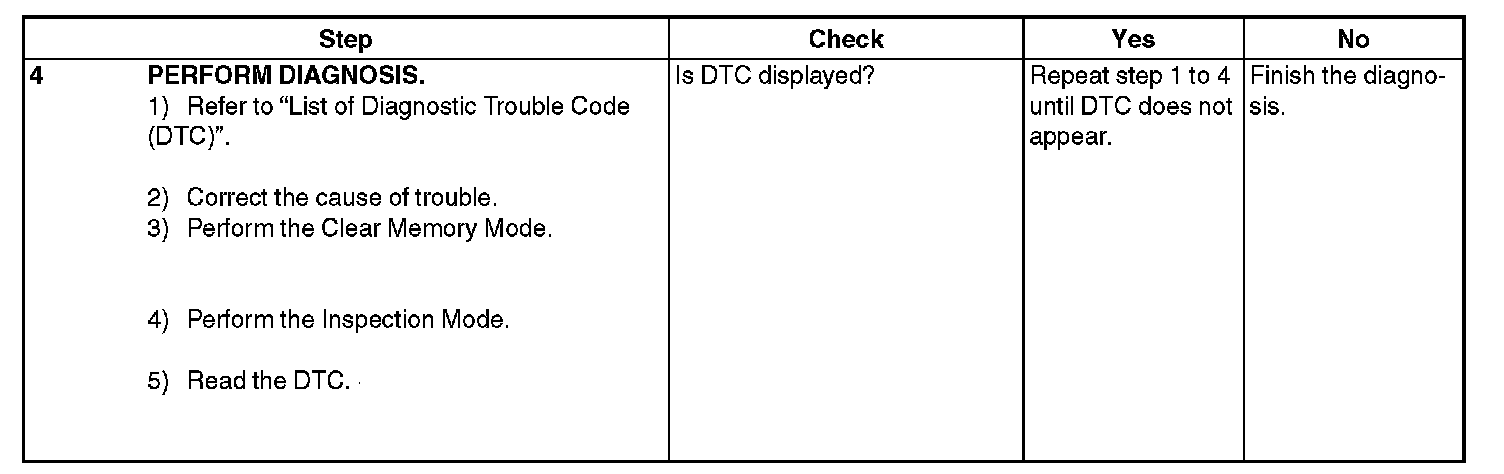

Step 4:

Check List for Interview

CHECK
Check the following items regarding condition of the vehicle.

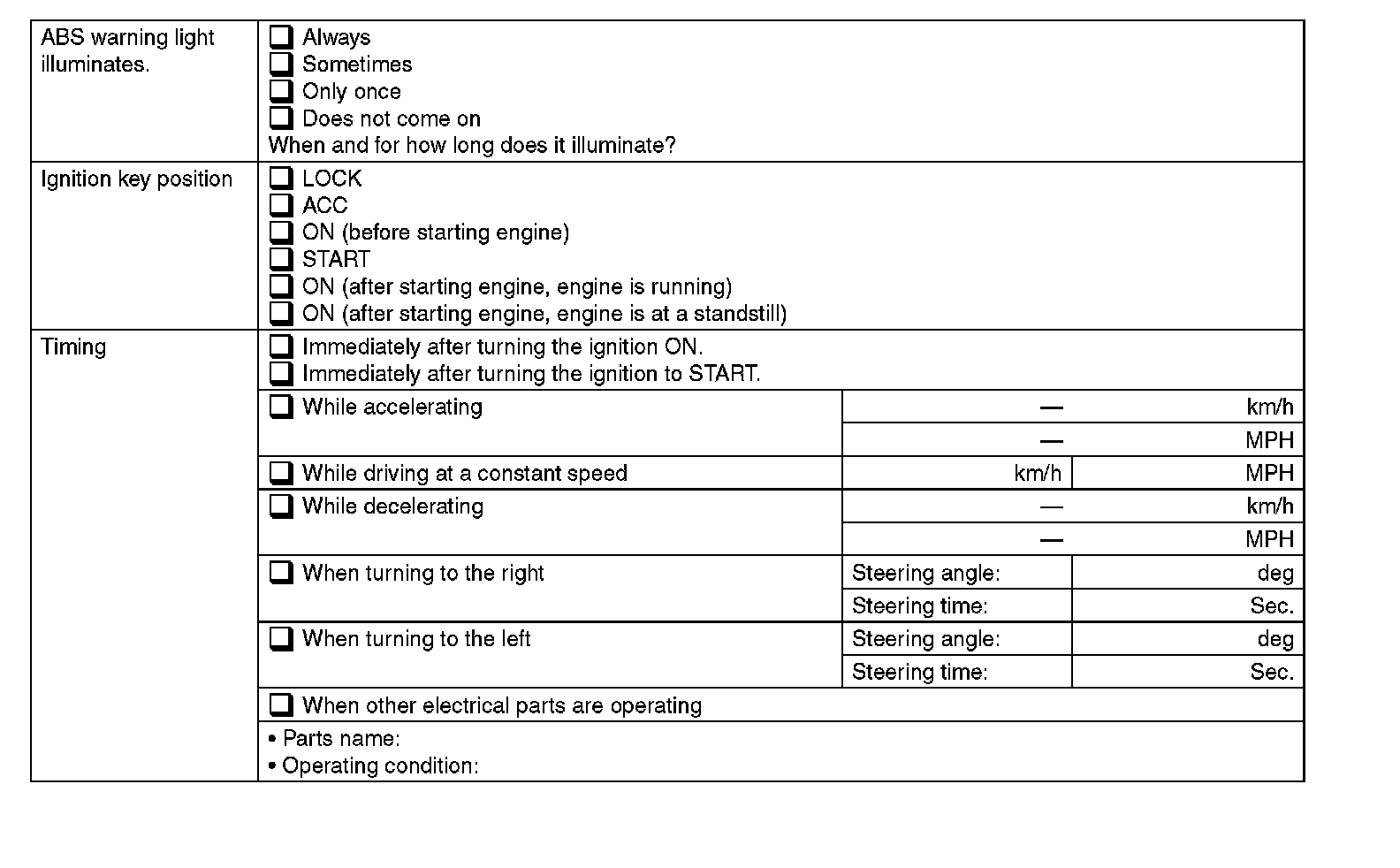

STATE OF ABS WARNING LIGHT

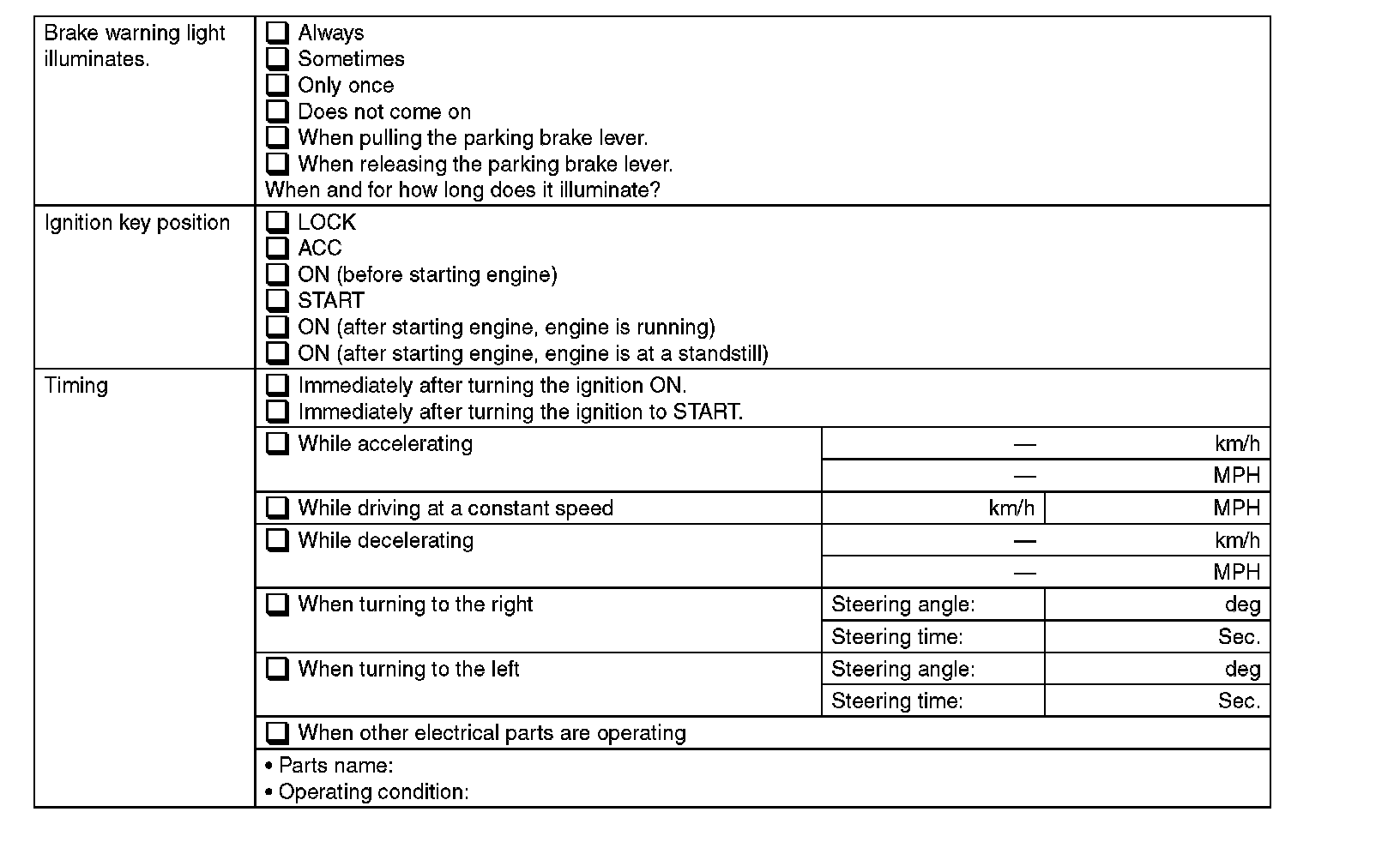

STATE OF BRAKE WARNING LIGHT

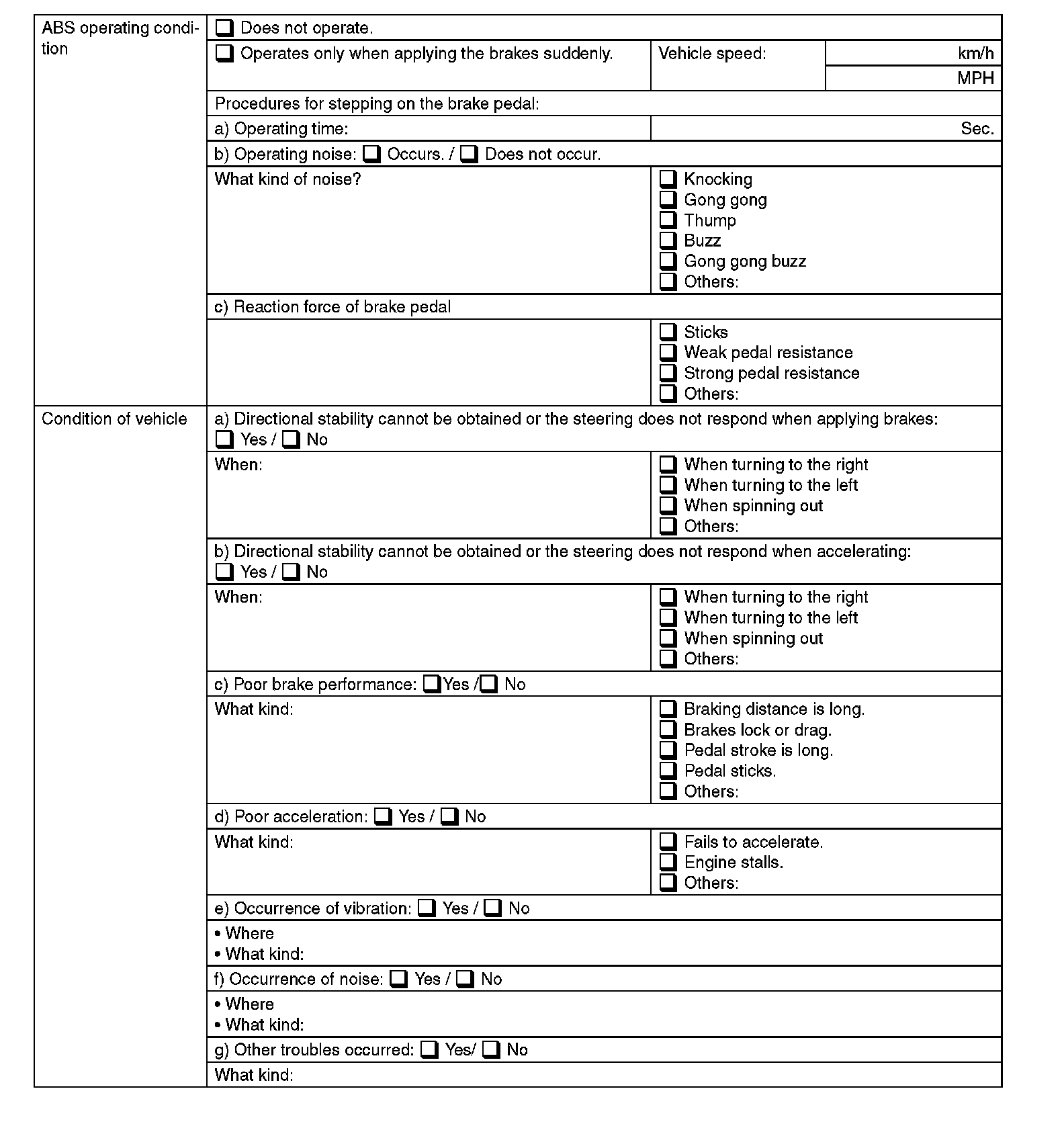

SYMPTOMS

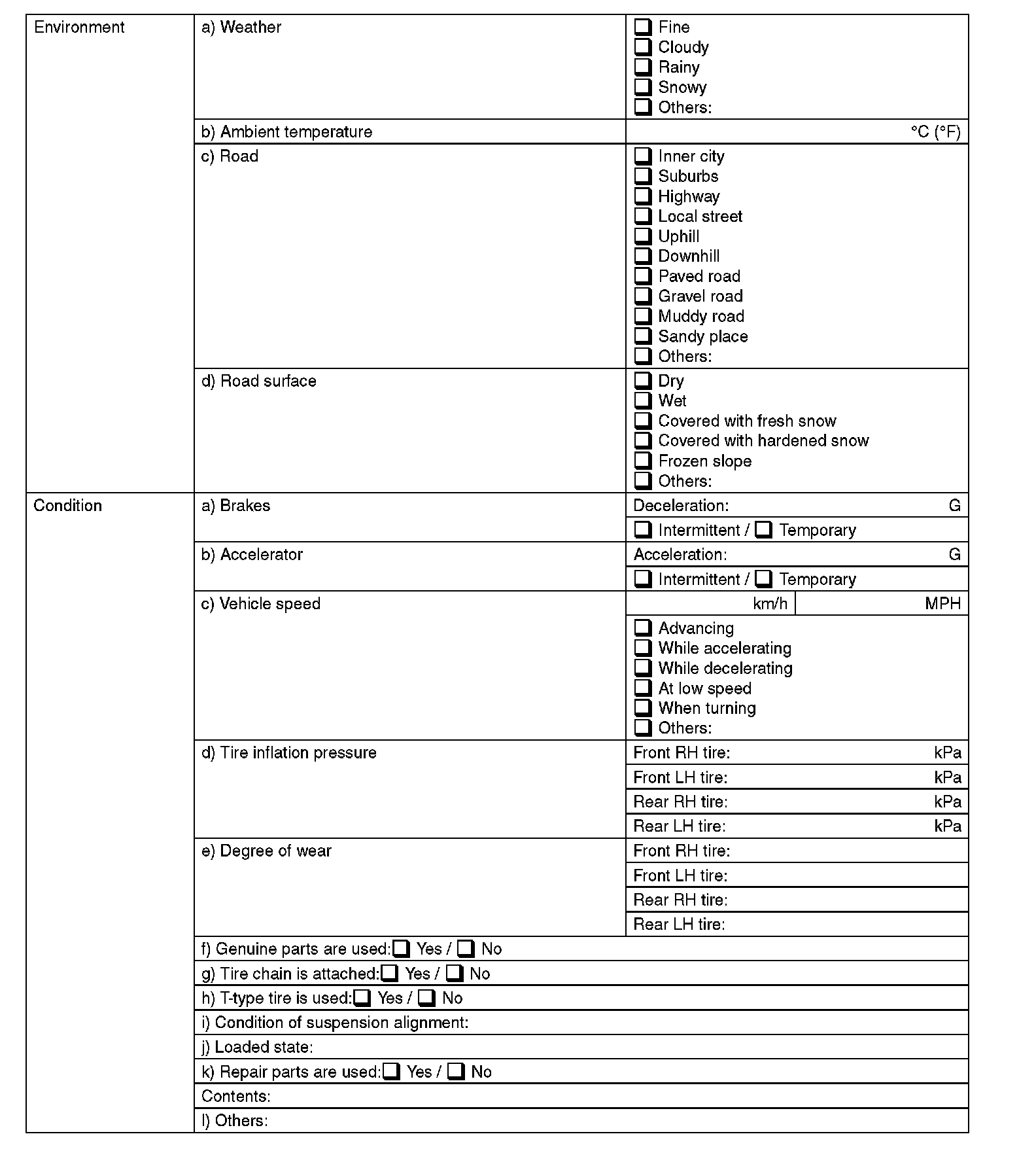

CONDITIONS UNDER WHICH TROUBLE OCCURS
