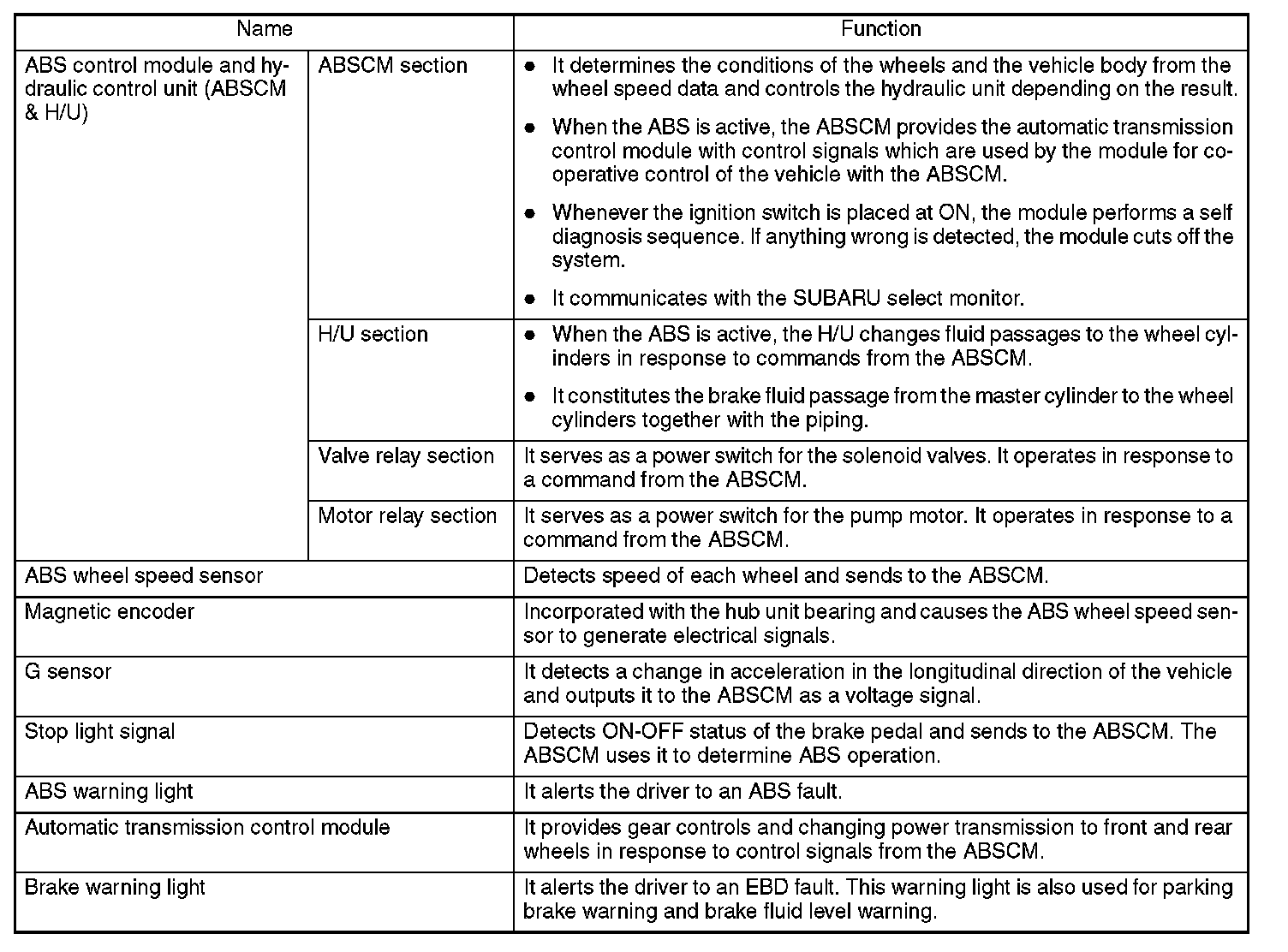

Functions of Sensors and Actuators

FUNCTIONS OF SENSORS AND ACTUATORS

Functions Of Sensors And Actuators:
