Home >> Subaru >> 2008 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Body and Frame >> Seats >> Description and Operation >> Powered Seat System With Memory Preset (From '06MY) >> Specification >> System Diagram

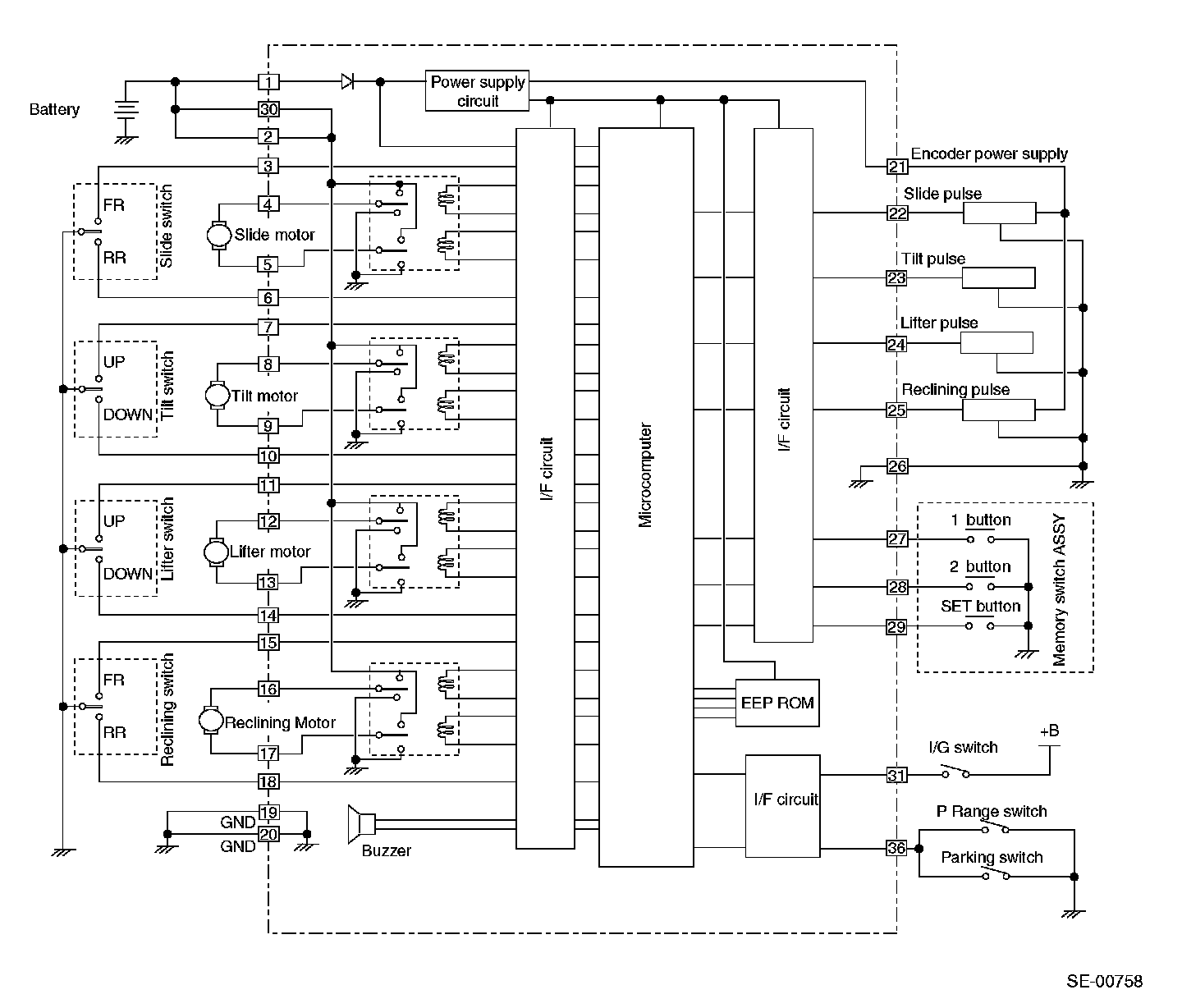

System Diagram

System Diagram:
