Sunroof / Moonroof Motor: Service and Repair

SUNROOF MOTOR

REMOVAL

CAUTION:
- When removing the clip, use great care not to damage the roof trim.
- Never rotate the sunroof motor assembly after removing it.

1. SEDAN MODEL

1. Completely close the glass lid.
2. Disconnect the ground cable from the battery.
3. Remove the spot map light.

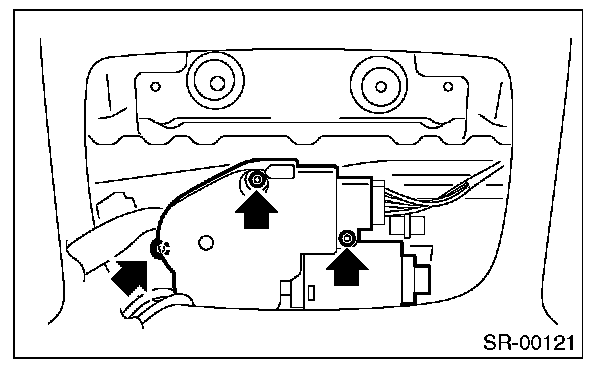

4. Disconnect the harness connector and remove the TORX(R) bolts, and then remove the motor assembly.






CAUTION: When removing the motor assembly, secure the cable wires to prevent moves.

2. WAGON MODEL

1. Fully close the glass lid (front) and glass lid (rear).
2. Disconnect the ground cable from the battery.
3. Remove the luggage room light.
4. Remove the roof trim.

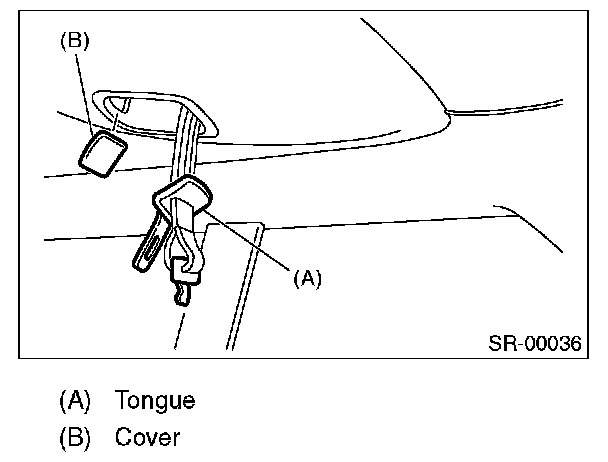

5. Pass the seat belt tongue located on the center of the rear seat through the hole, and then pull it out to the opposite side of the trim.

6. Remove the clips, and let the rear end of the roof trim hang.

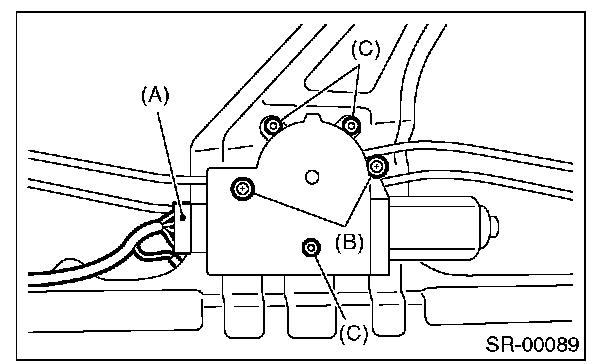

7. Disconnect the harness connector (A), and then remove the motor assembly mounting bolts (B) and nut (C).

INSTALLATION

CAUTION: When installing the motor assembly, be careful not to move the sunroof cable.

1. SEDAN MODEL

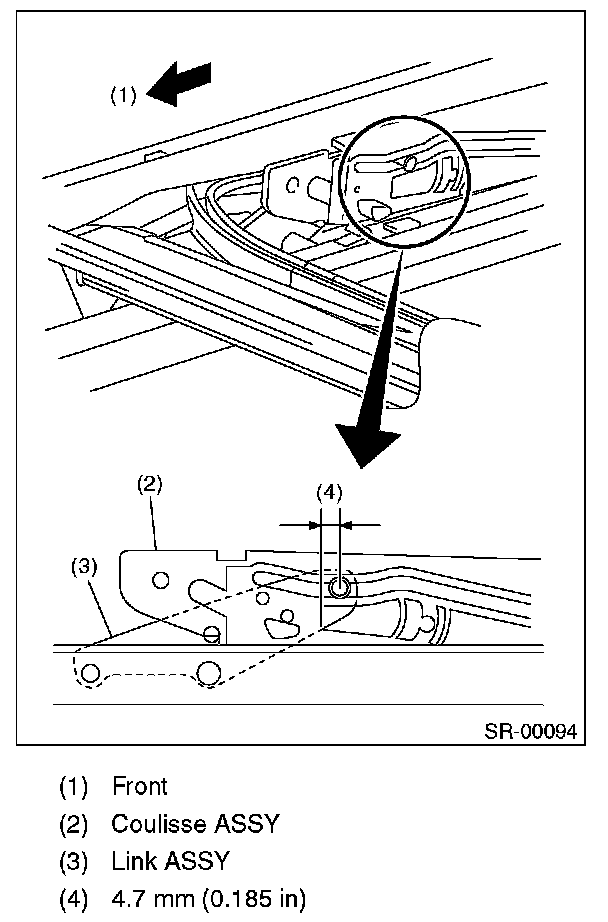

1. Align the coulisse assembly and link assembly in the same position.

2. Install the motor assembly.
3. Connect the harness connector of motor assembly, and then connect the battery ground cable to battery.
4. Perform the initialize operation of motor.

1. Tilt up the glass lid.
2. Release the switch once, and press the tilt up switch again for 15 seconds.
3. When the glass lid is raised a little and on tilt up position, release the switch for the moment.
4. Keep pressing the tilt up switch within 5 seconds from releasing the switch, glass lid automatically performs the tilts down -> slides open -> slides close operation, then the initialize operation is completed.

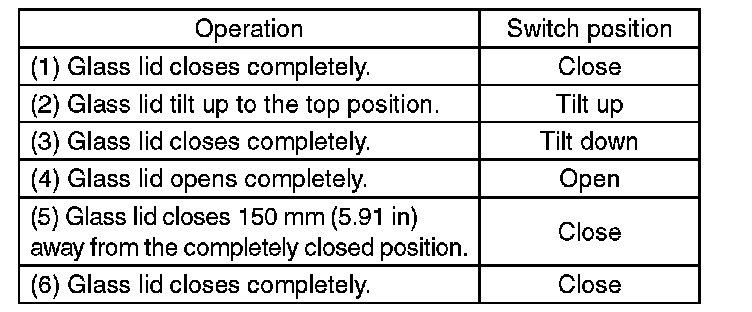

5. Check the operation of sunroof with following table.

6. Install the trim in the reverse order of removal.

2. WAGON MODEL

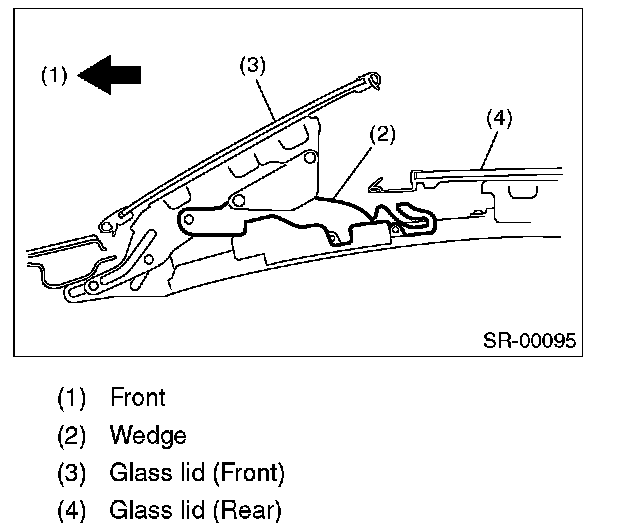

Check that the wedge of the glass lid (front) bracket is in contact at the vehicle forward direction end. At this time, the lid is at the fully open position.

1. Install the motor assembly.
2. After the installation of the motor assembly, check again that the wedge of glass lid (front) bracket part is in contact at the vehicle forward direction end.
3. Connect the harness connector of motor assembly, and then connect the battery ground cable to battery.
4. Perform the initialize operation of motor.
- When replacing the motor, fully close the glass once and perform position initialization, because the movement of the glass lid will shift to inching operation.
- When reusing the motor, operate the auto-reverse function five times in a row to shift to the inching operation, then perform the initialization of position.

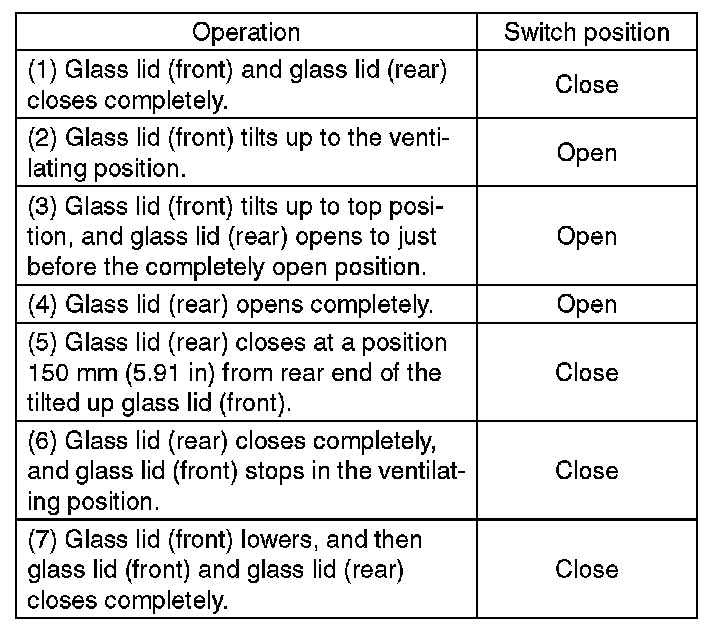

5. Check the operation of sunroof with following table.

6. Install the trim in the reverse order of removal.
