Sun Shade: Service and Repair

SUNSHADE

REMOVAL

1. SEDAN MODEL

1. Remove the glass lid.

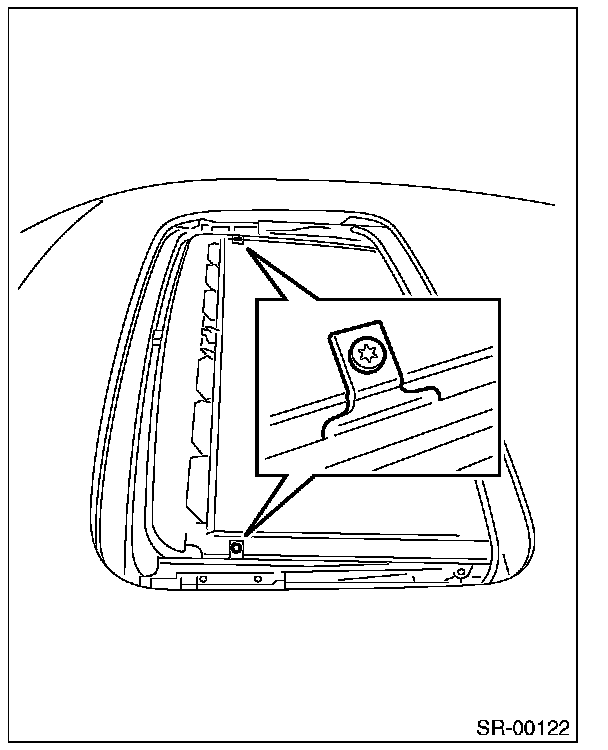

2. Loosen the TORX(R) bolt to remove the front sunshade bracket.

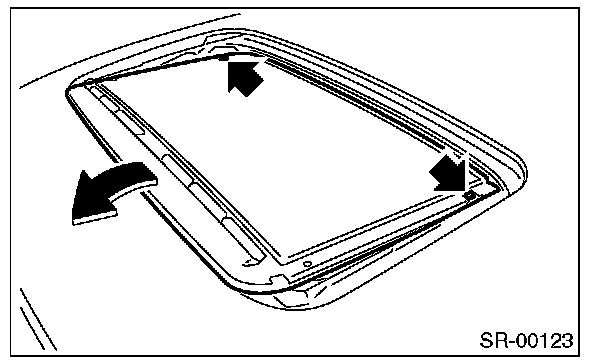

3. Pull the sunshade until the rear sunshade bracket comes into the sight, then loosen the TORX(R) bolts to remove the sunshade.

2. WAGON MODEL

1. Remove the frame assembly.

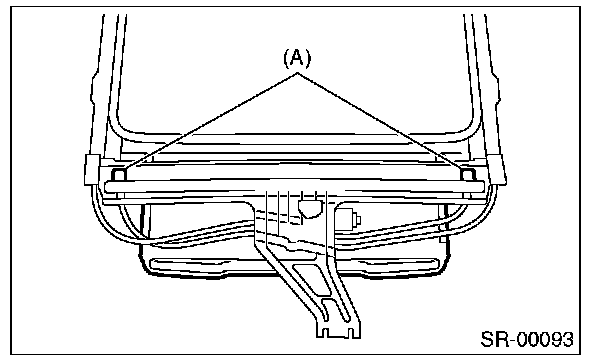

2. Remove the shade stopper (A) of the sunshade.

3. Pull out the sunshade (A) from the sunroof frame.

INSTALLATION

Install in the reverse order of removal.
