Outer Mirror Assembly
Outer Mirror Assembly
OUTER MIRROR ASSEMBLY
INSPECTION

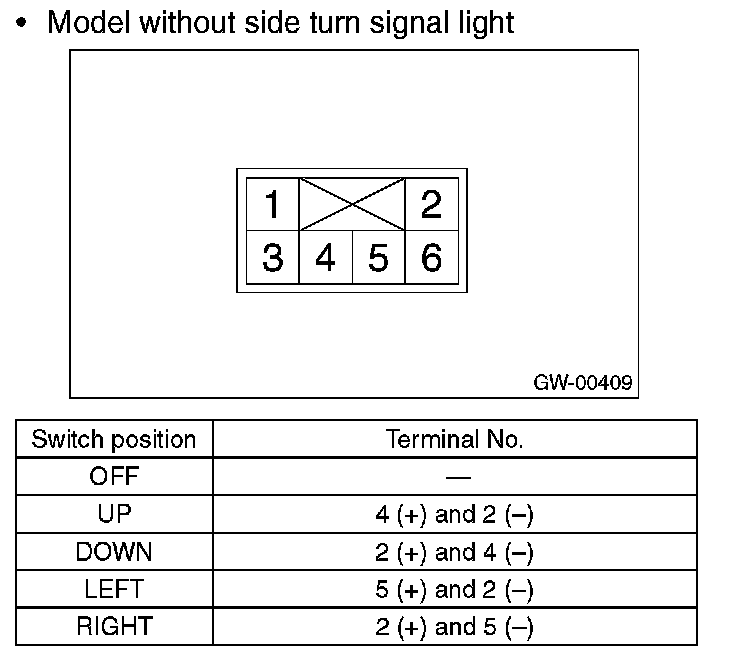

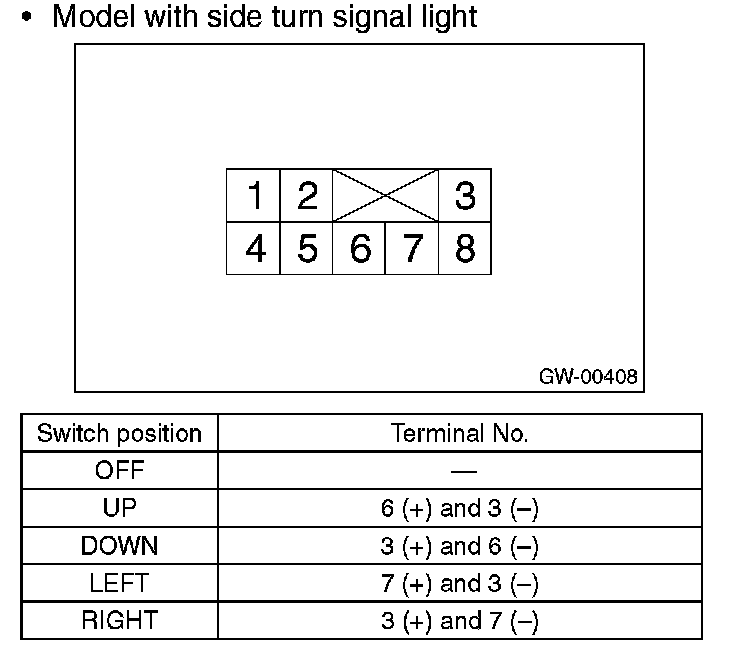

Check that the rearview mirror moves properly when the battery voltage is applied to terminals.
Replace the outer mirror assembly if defective.
