Rear Shelf: Service and Repair

REAR SHELF TRIM

REMOVAL

1. Disconnect the ground cable from the battery.
2. Remove the rear quarter trim.
3. Remove the high-mounted stop light.
4. Remove the rear seat cushion.

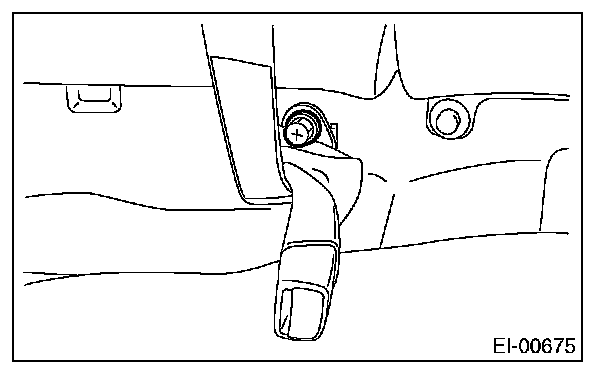

5. Remove the lower anchor bolt of the rear center seat belt.

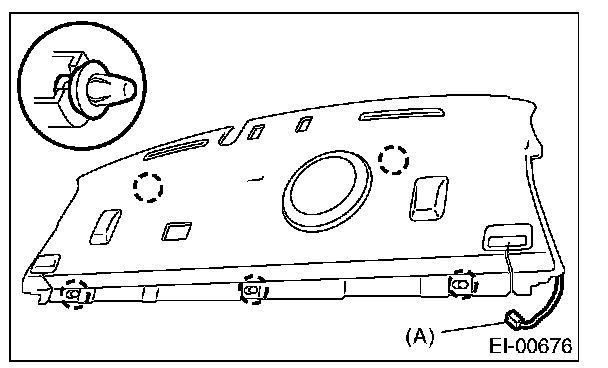

6. After disconnecting the high-mounted stop light harness connector (A) and removing the five clips, remove the rear shelf trim by pulling it frontward.

INSTALLATION

Install in the reverse order of removal.

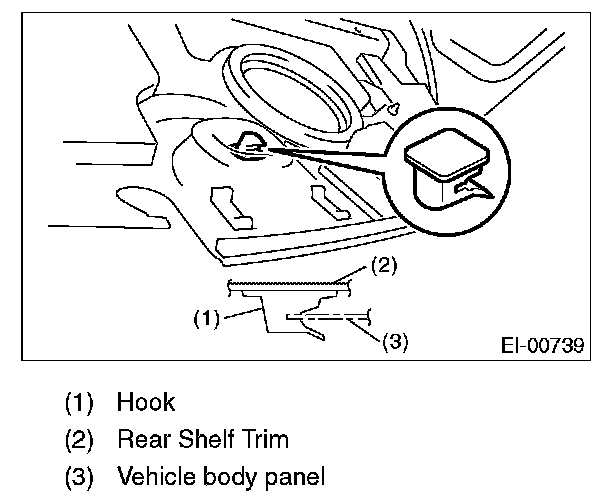

NOTE: Securely insert the vehicle body panel into the hook of the rear shelf trim center, and install the rear shelf trim.
