Home >> Subaru >> 2008 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Locations

Interior Moulding / Trim: Locations

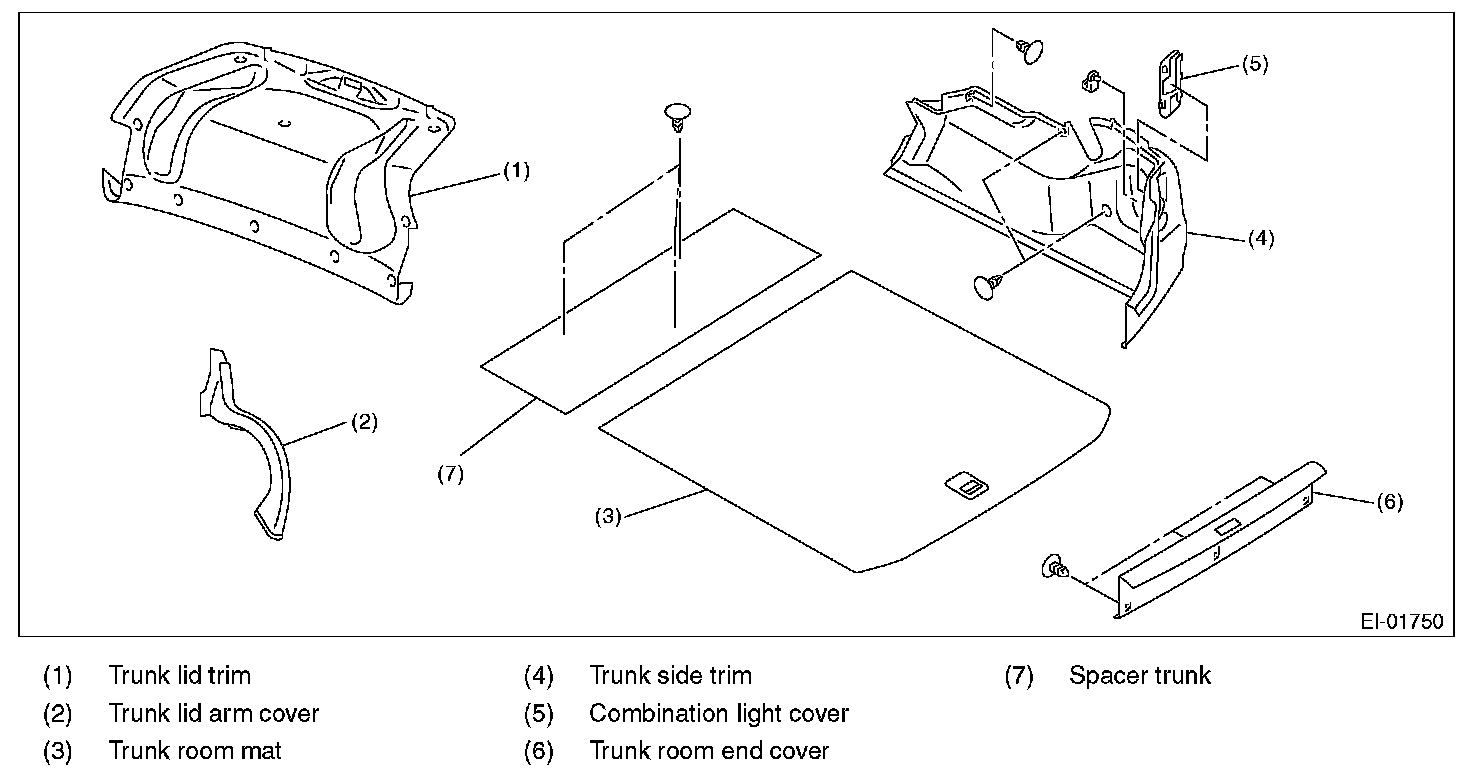

Trunk Room Trim:

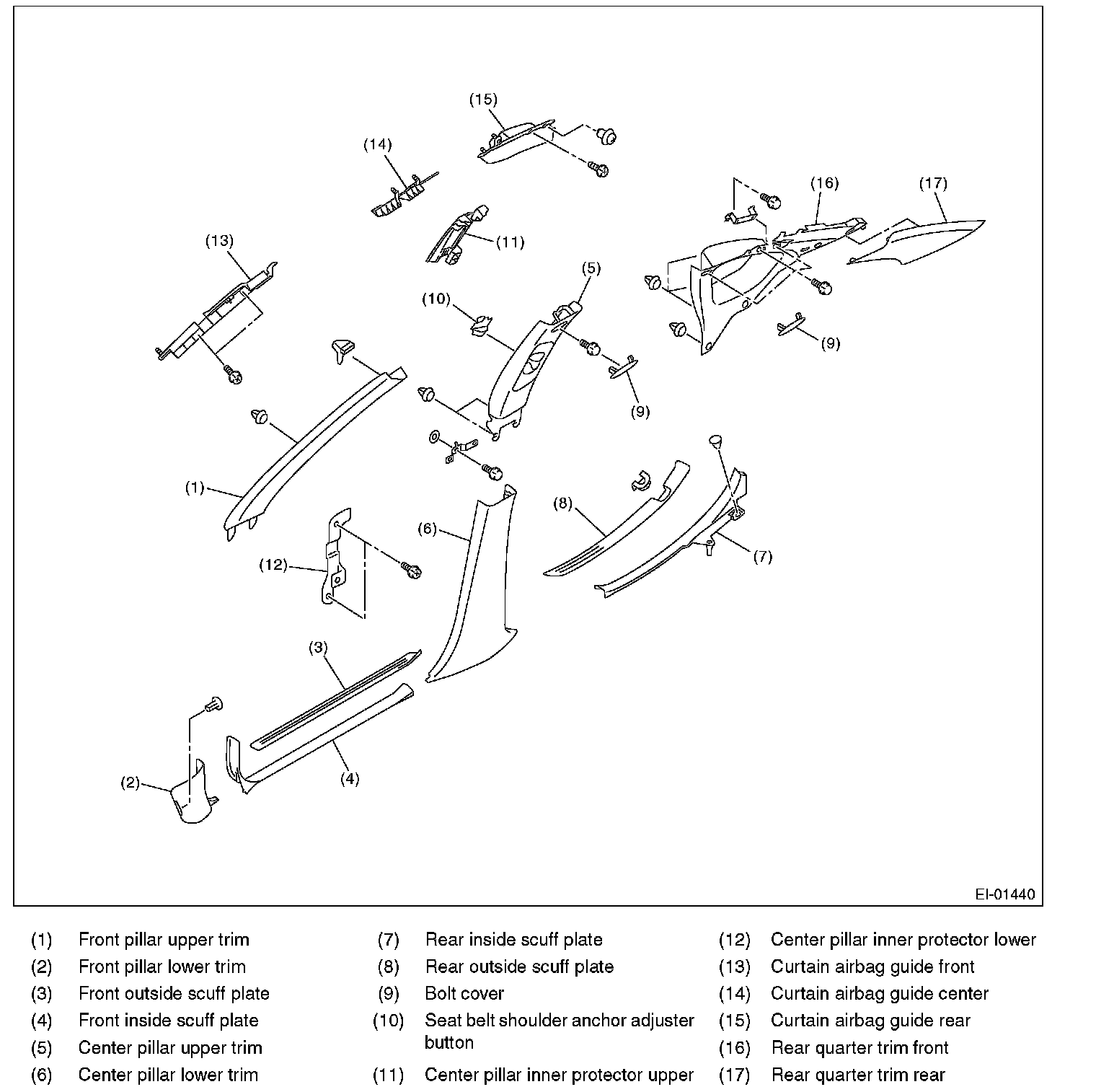

Inner Trim (Sedan Model):

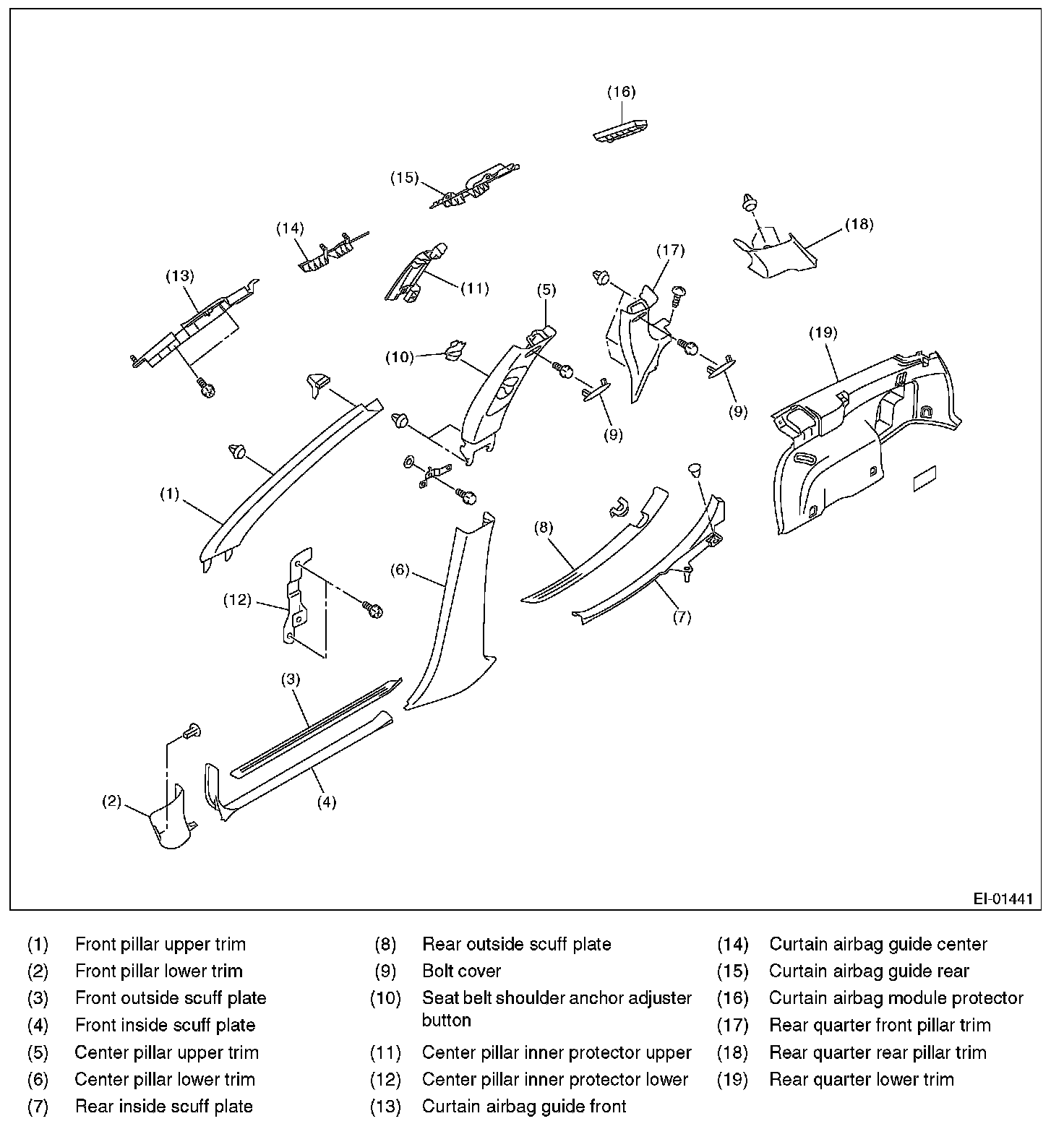

Inner Trim (Wagon Model):

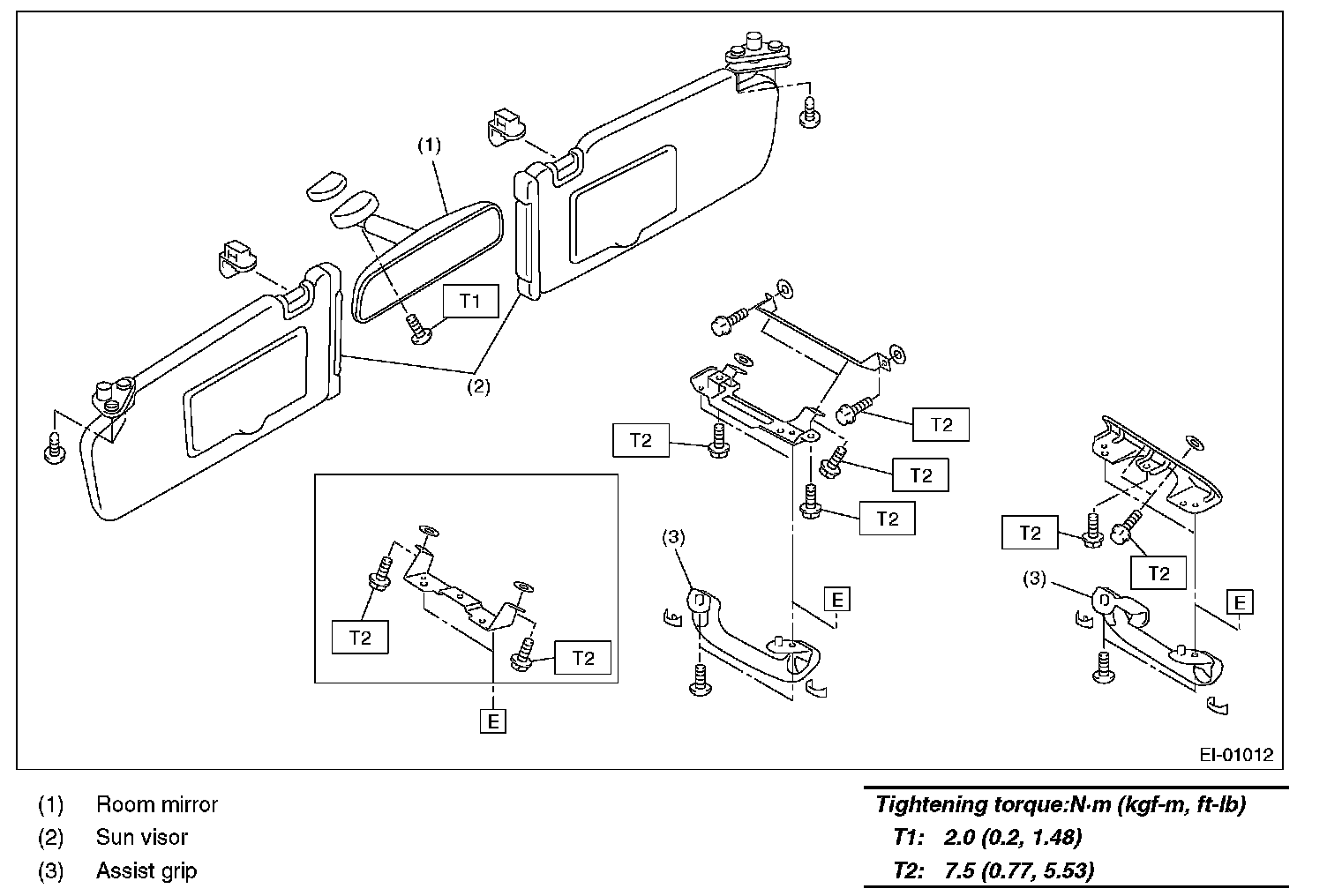

Room Inner Parts:
