Floor Mat

FLOOR MAT

REMOVAL

1. Remove the front seats.
2. Remove the rear seat cushion.
3. Remove the console box.
4. Remove the console side panel.
5. Remove the lower inner trim.

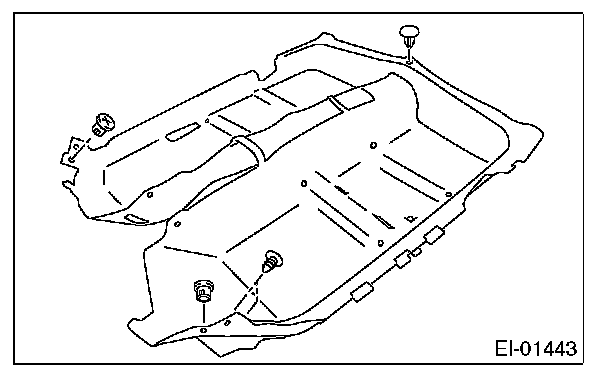

6. Remove the clips from the floor mat.
7. Remove the mat hook on both sides.
8. Remove the mat from toe board area.
9. Remove the mat from rear heater duct.
10. Roll the mat, and then take it out of opened rear door.

INSTALLATION

Install in the reverse order of removal.

NOTE:
- Secure the mat firmly with hook and clip.
- Insert the mat edge firmly into the groove of side sill cover.
