Trunk Room Trim

TRUNK ROOM TRIM

REMOVAL

1. TRUNK LID TRIM

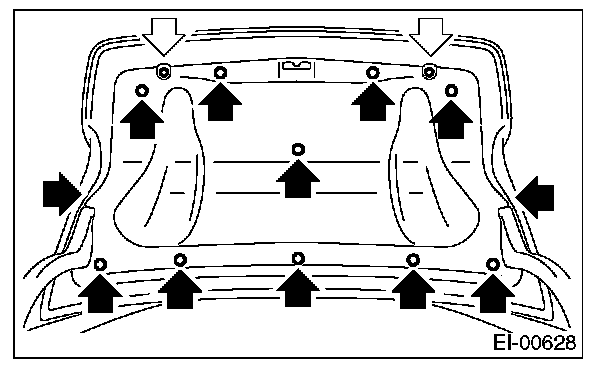

1. Remove the trim clips and stopper rubber, and remove the trunk lid trim.

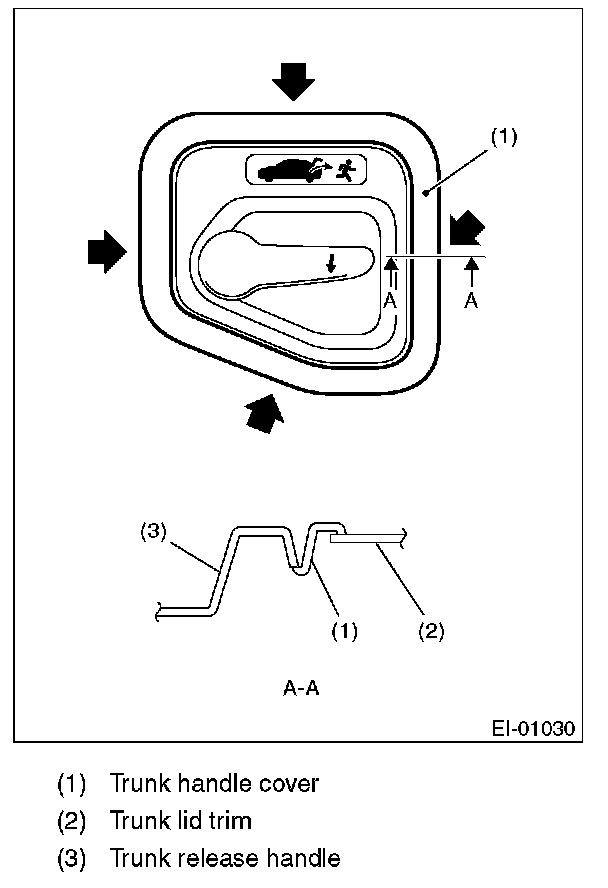

2. Remove the four claws, and remove the trunk handle cover (1).

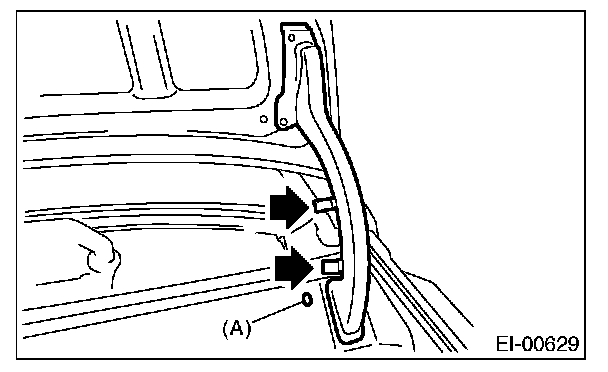

3. Remove clip (A) of the trunk side trim, and remove the trunk lid arm cover.






2. TRUNK ROOM TRIM

1. Remove the trunk room mat.






2. Remove the trim clips (A), and remove the trunk room end cover.

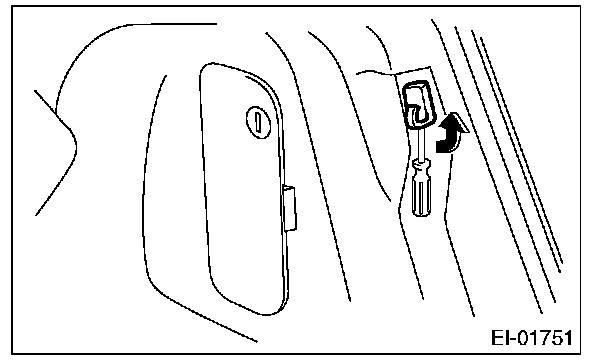

3. Insert the flat tip screwdriver from the lower side of the trunk hook, and then remove the trunk hook by rotating it 90°.






4. Remove the trim clips, and remove the trunk side trim.






INSTALLATION

Install in the reverse order of removal.
