Rear Door Latch: Service and Repair

Rear Door Latch and Door Lock Actuator Assembly

REMOVAL
1. Disconnect the ground cable from the battery.
2. Remove the rear door trim.
3. Remove the cable from rear inner remote.
4. Remove the sealing cover.
5. Remove the rear door glass.
6. Remove the rear sash.
7. Pull out the cable from the cable clamp of the outer handle.

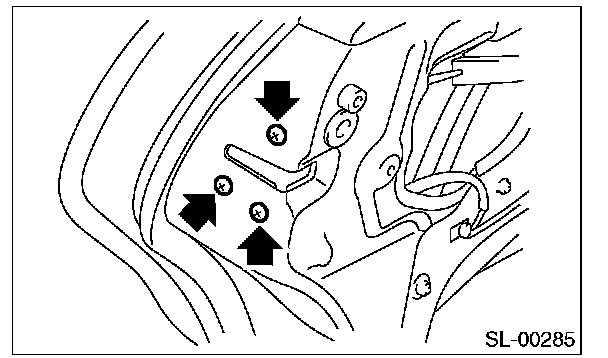

8. Remove the three screws.






9. Disconnect the connectors, and then remove the rear door latch and door lock actuator assembly.

INSTALLATION
Install in the reverse order of removal.

DOOR LOCK ASSEMBLY

Tightening torque: N.m (kgf.m, ft.lb)

T1: 6.5 (0.66, 4.8)

T2: 7.5 (0.76, 5.5)

T3: 18 (1.8, 13.3)

NOTE: Make sure the lock works correctly after installation.
