Driver/Vehicle Information Display: Testing and Inspection

INSPECTION

1. Remove the airbag module from steering wheel.

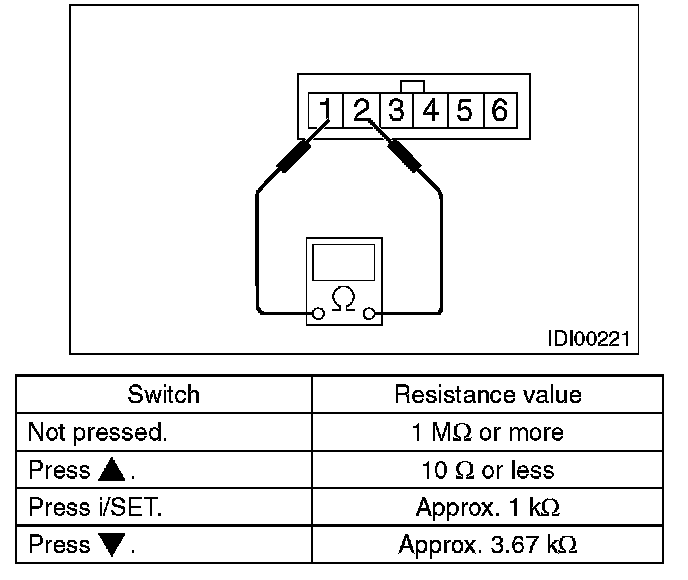

2. Connect tester as shown in the figure, and measure the resistance between the terminals when pressing each switch.






3. Replace for faulty switch when the internal resistance is not in the given table.
