Driver/Vehicle Information Display: Service and Repair

Multi-information Display Selector

REMOVAL
1. Remove the airbag module from steering wheel.

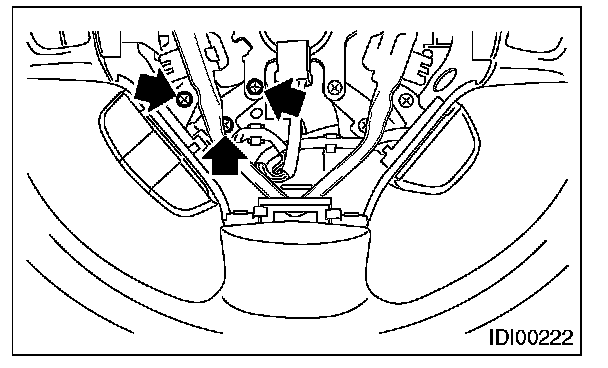

2. Disconnect the roll connector and steering switch connector, and remove the bolts.






3. Remove the multi-information display selector.

INSTALLATION
Install in the reverse order of removal.
