U1223

DTC U1223 CAN-HS VDC/ABS NO-RECEIVE DATA

DTC DETECTING CONDITION:
Defective VDC/ABSCM. (If error is in the main harness, DTC P0600 High-speed CAN circuit is input at the same time.)

TROUBLE SYMPTOM:
- ABS warning light and VDC warning light illuminates
- "Er HC" is displayed in odo/trip meter. (Except for meter with MID)

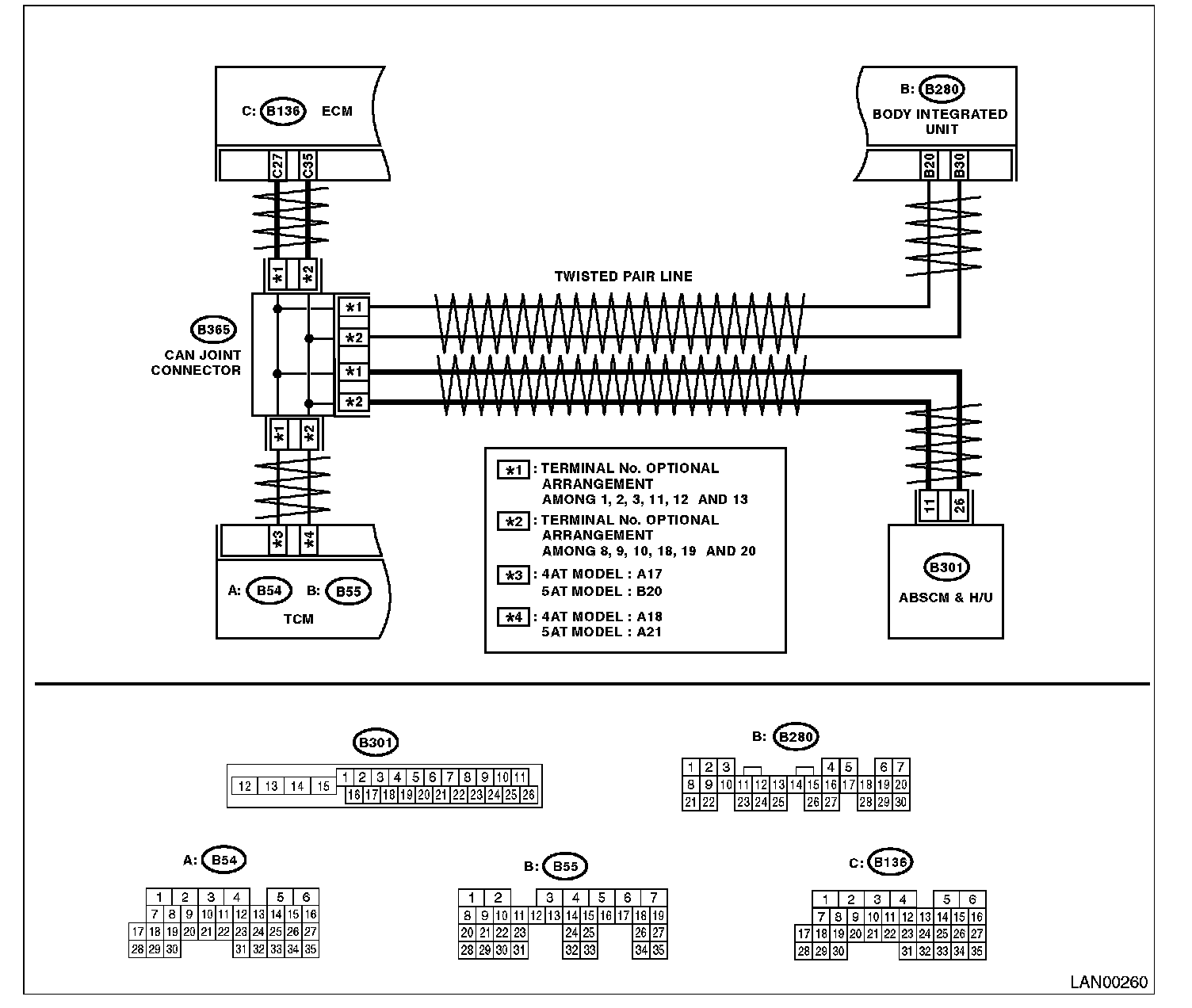

WIRING DIAGRAM:
