U1221

DTC U1221 CAN-HS ECM NO-RECEIVE DATA

DTC DETECTING CONDITION:
Defective ECM. (If error is in the main harness, DTC P0600 CAN communication link is input simultaneously.)

TROUBLE SYMPTOM:
- Malfunction indicator light illuminates.
- "Er HC" is displayed in odo/trip meter. (Except for meter with MID)

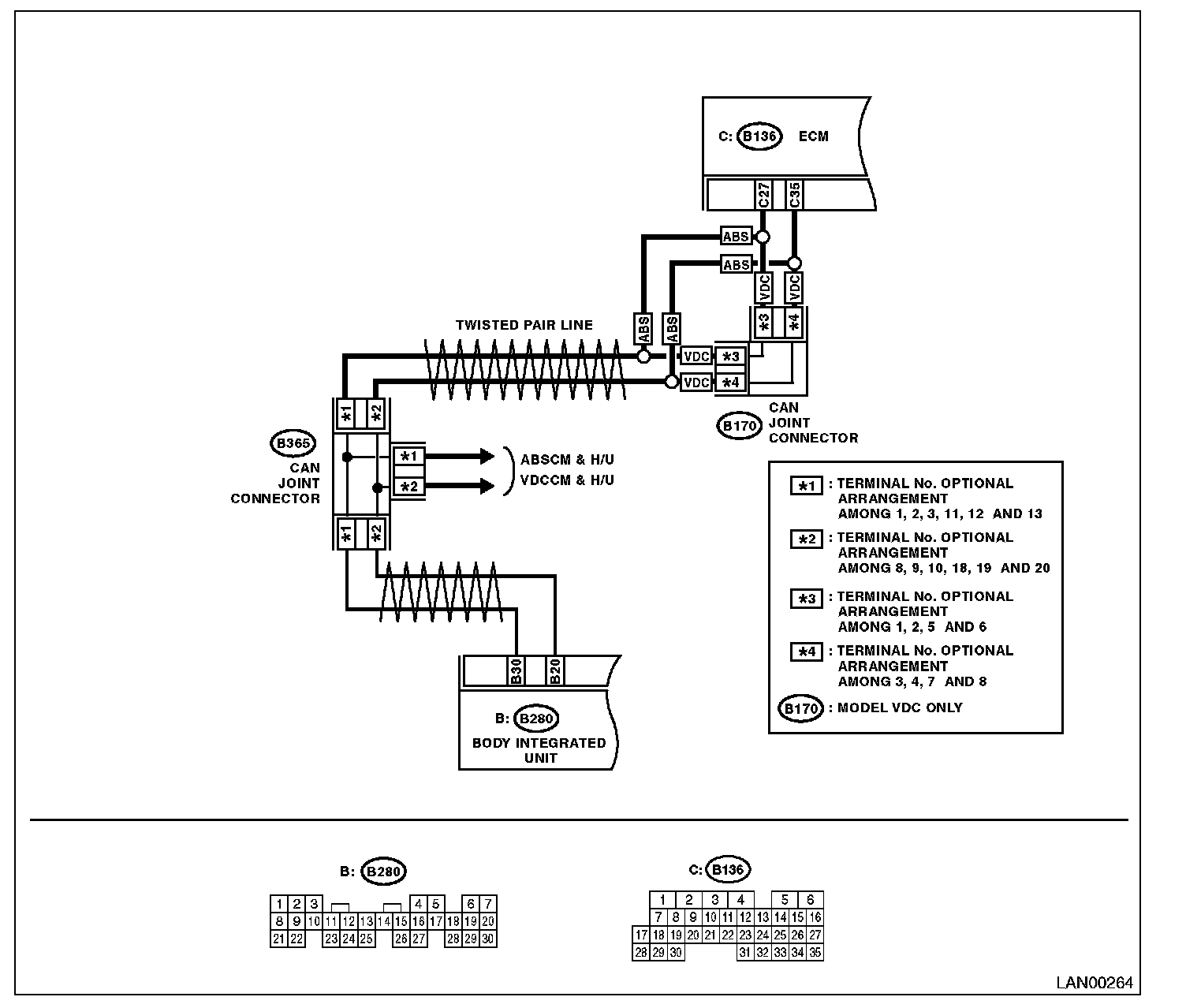

WIRING DIAGRAM:

Wiring Diagram:

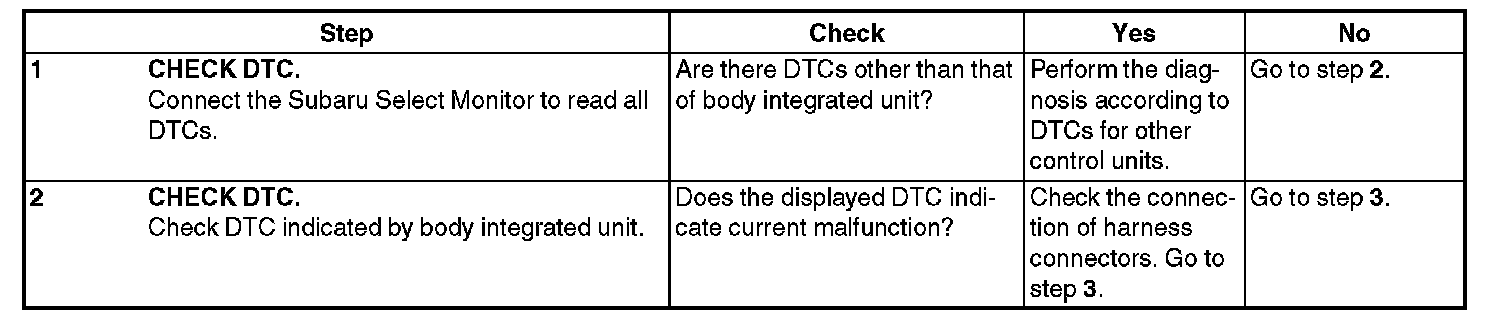

Step 1-2:

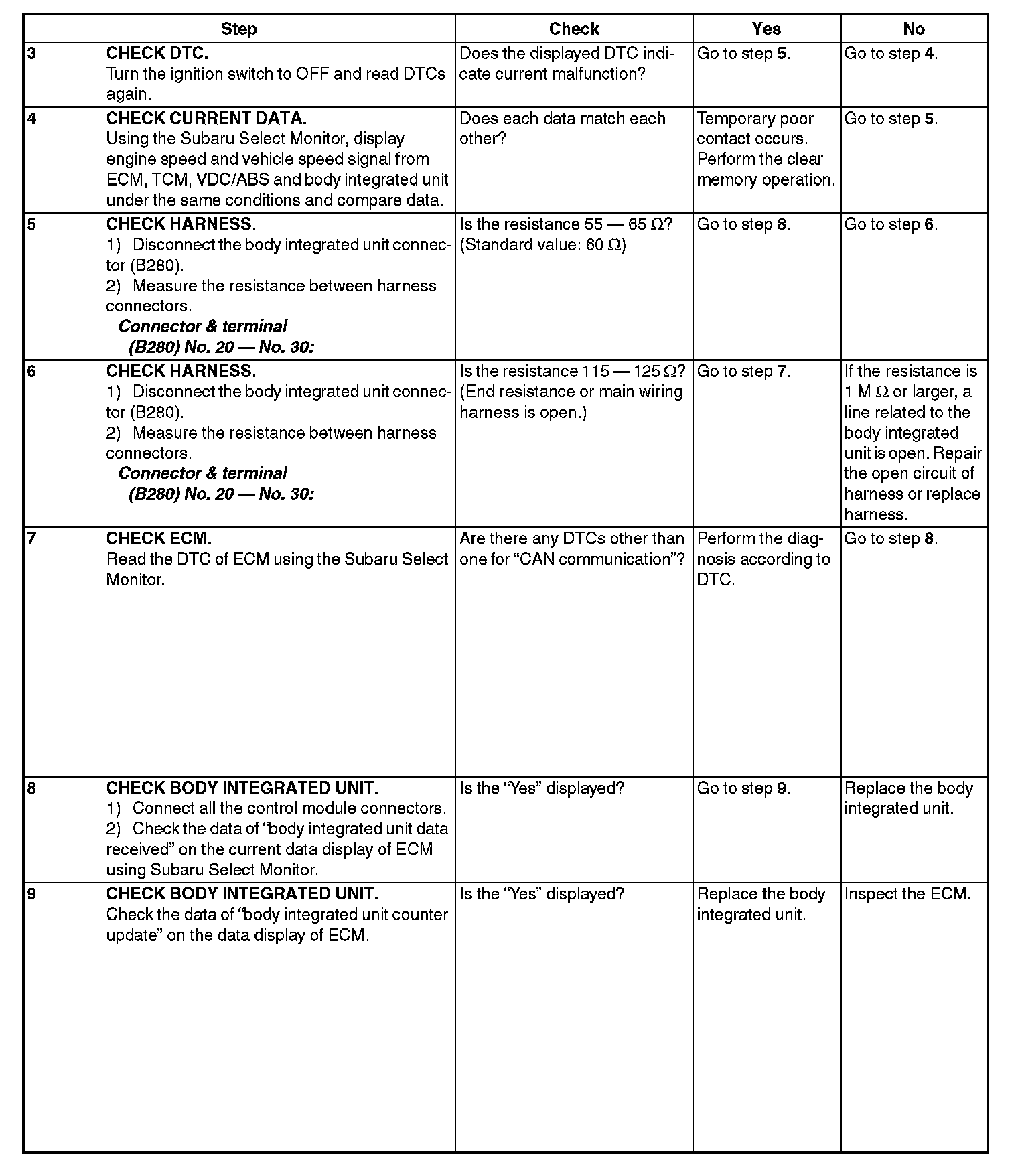

Step 3-9:
