DTC - General Description

DTC P2227 BAROMETRIC PRESSURE CIRCUIT RANGE/PERFORMANCE

1. OUTLINE OF DIAGNOSIS
Detect the malfunction of barometric pressure sensor output property.
Judge as NG when the barometric pressure sensor output is largely different from the intake manifold pressure at engine start.

2. COMPONENT DESCRIPTION
The barometric pressure sensor is built into the ECM.

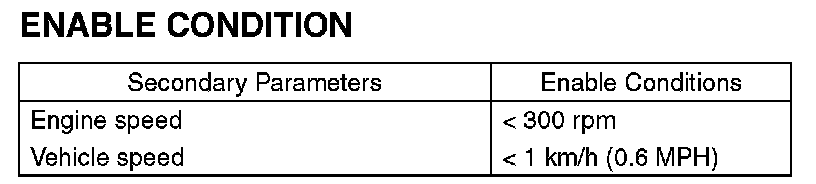

3. ENABLE CONDITION






4. GENERAL DRIVING CYCLE
Perform the diagnosis once at ignition switch ON.

5. DIAGNOSTIC METHOD

- Abnormality Judgment

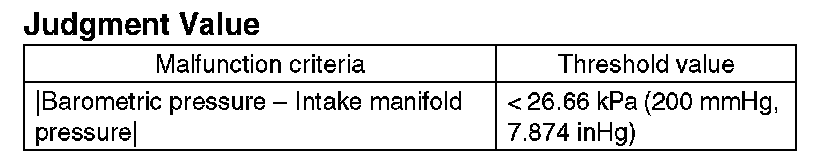

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.






Time Needed for Diagnosis: 328 ms
Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.

- Normality Judgment

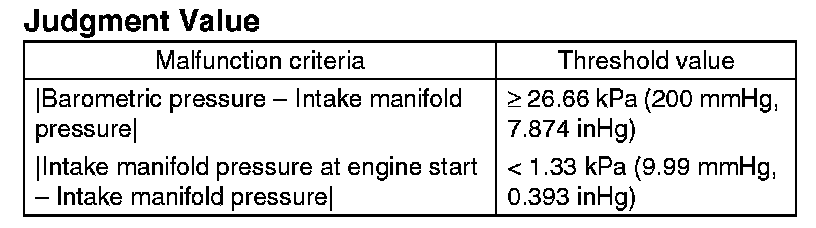

Judge as OK and clear the NG if the continuous time while the following conditions are established is more than the predetermined time.





Time Needed for Diagnosis: 262 ms

6. DTC CLEAR CONDITION
- When the OK idling cycle is completed 40 times in a row
- When "Clear Memory" is performed

7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
- When the OK driving cycle is completed 3 times in a row
- When "Clear Memory" is performed

8. FAIL SAFE
Barometric pressure sensor process: Fix the barometric pressure to 101 kPa (760 mmHg, 29.8 inHg).

9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
