DTC - General Description

DTC P2138 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D"/"E" VOLTAGE CORRELATION

1. OUTLINE OF DIAGNOSIS
Judge as NG when the signal level of throttle position sensor 1 is different from the throttle position sensor 2.

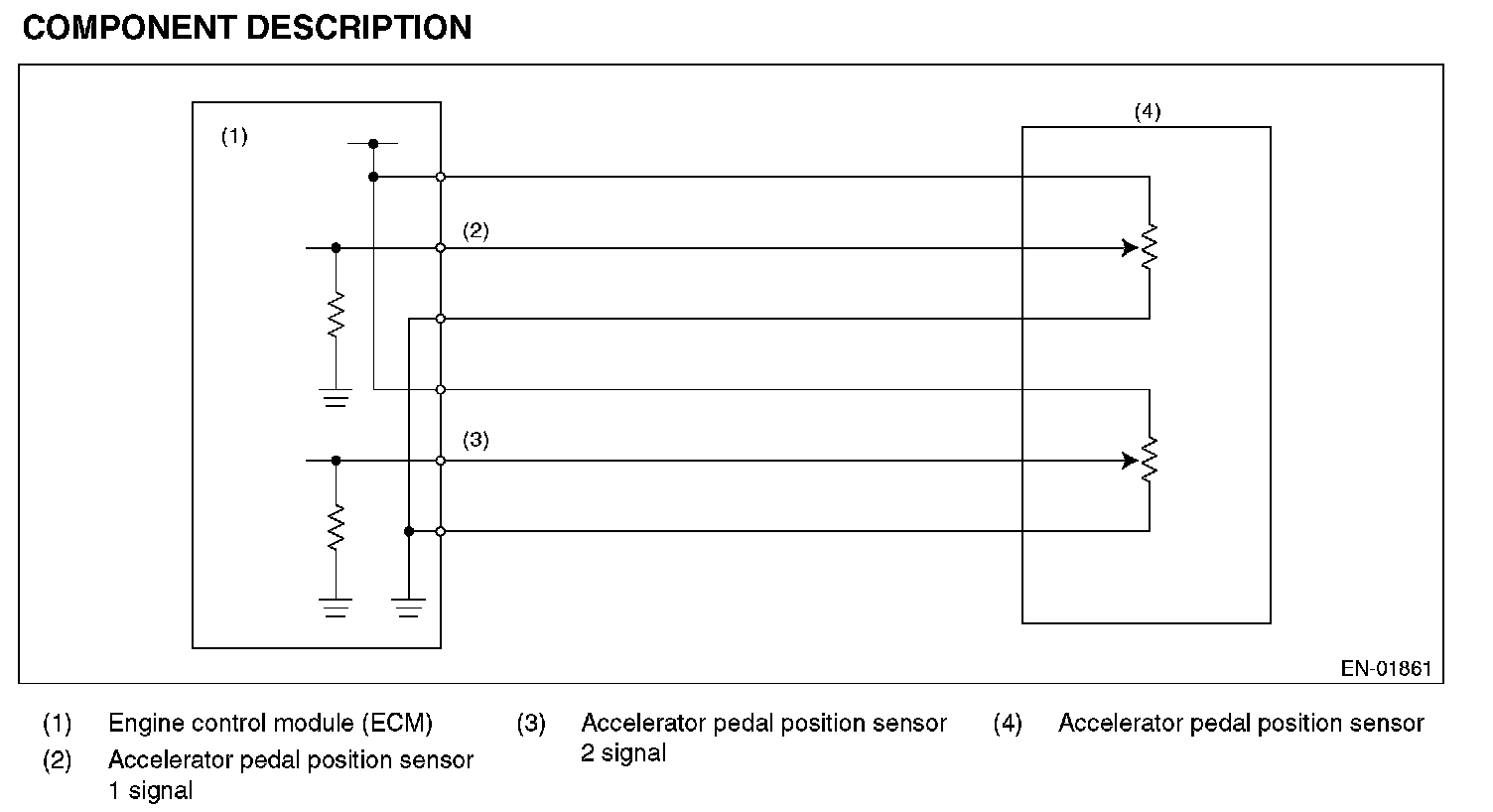

2. COMPONENT DESCRIPTION

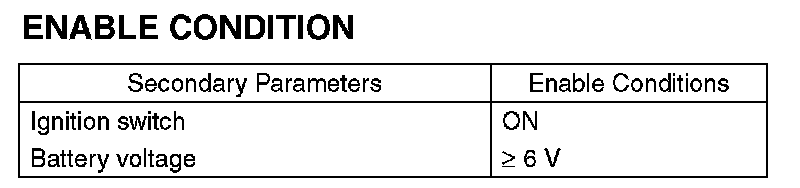

3. ENABLE CONDITION






4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

5. DIAGNOSTIC METHOD

- Abnormality Judgment

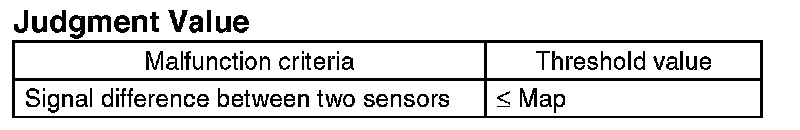

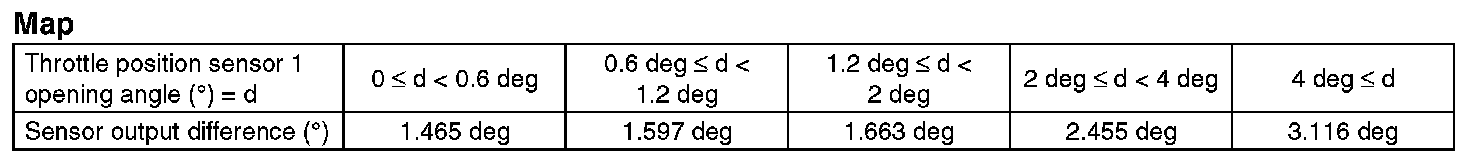

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.









Time Needed for Diagnosis: 116 msec
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

- Normality Judgment

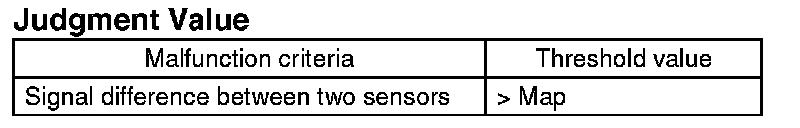

Judge as OK and clear the NG if the continuous time while the following conditions are established is more than the predetermined time.






Time Needed for Diagnosis: 116 msec

6. DTC CLEAR CONDITION
- When the OK idling cycle is completed 40 times in a row
- When "Clear Memory" is performed

7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
- When the OK driving cycle is completed 3 times in a row
- When "Clear Memory" is performed

8. FAIL SAFE
Throttle opening is fixed to 6°.

9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
