DTC - General Description
DTC P2103 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT HIGH1. OUTLINE OF DIAGNOSIS
Judge as NG when the electronic throttle control power is supplied even when ECM sets the electronic throttle control relay to OFF.

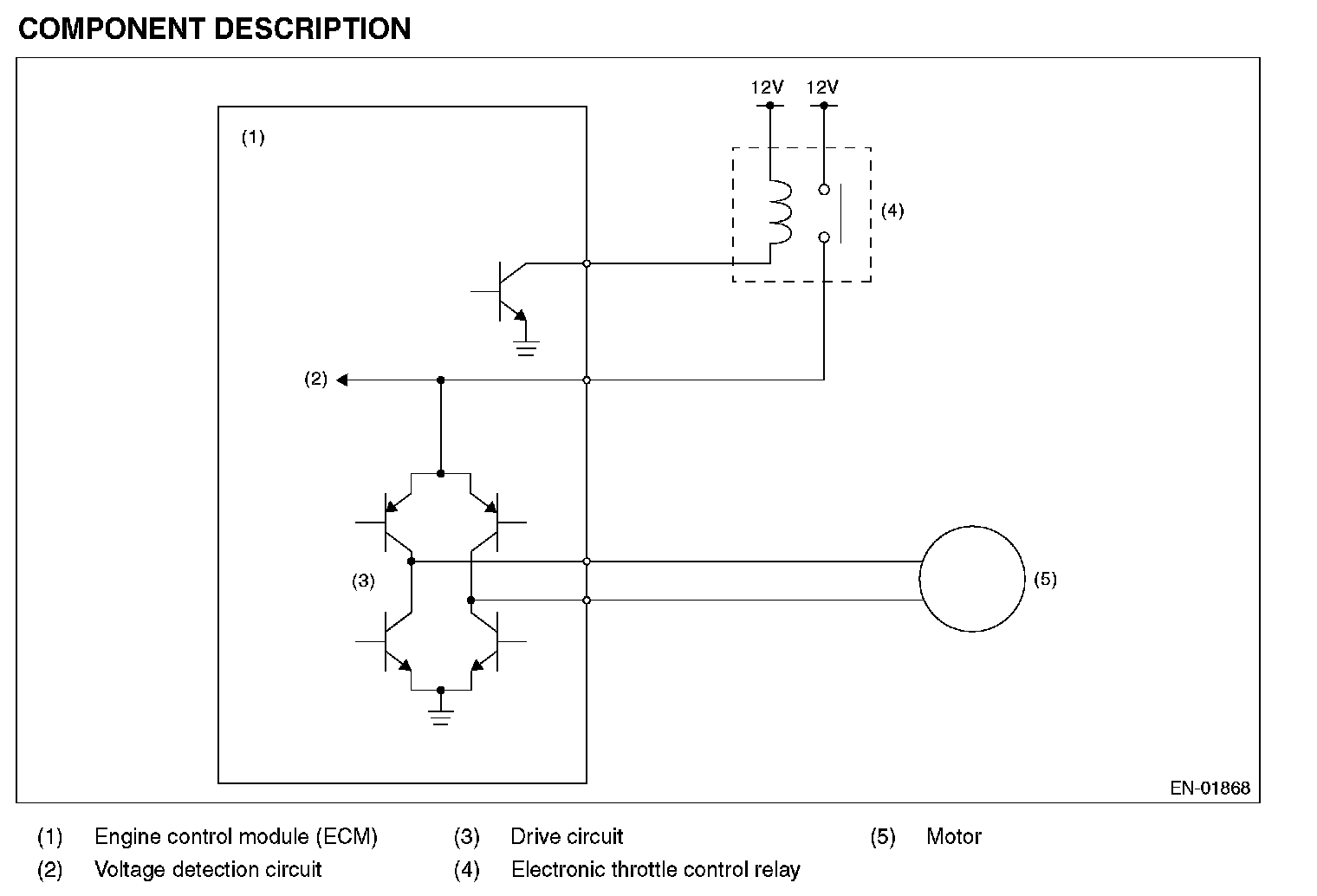

2. COMPONENT DESCRIPTION

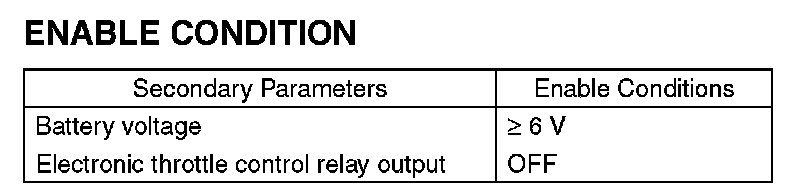

3. ENABLE CONDITION
4. GENERAL DRIVING CYCLE
- When ignition switch ON -> OFF
- Ignition switch OFF -> ON (Only after clearing memory)
5. DIAGNOSTIC METHOD
- Abnormality Judgment

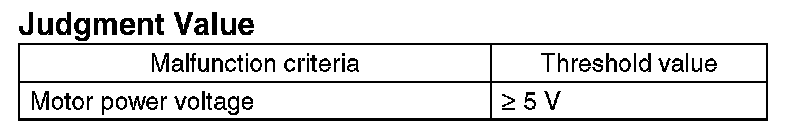

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.
Time Needed for Diagnosis: 600 msec
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
- Normality Judgment

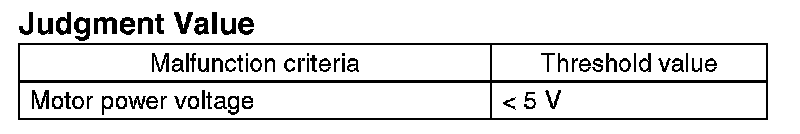

Judge as OK and clear the NG if the continuous time while the following conditions are established is more than the predetermined time.
Time Needed for Diagnosis: 400 msec
6. DTC CLEAR CONDITION
- When the OK idling cycle is completed 40 times in a row
- When "Clear Memory" is performed (Only with engine stopped)
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
- When the OK driving cycle is completed 3 times in a row
- When "Clear Memory" is performed (Only with engine stopped)
8. FAIL SAFE
Stop the continuity to the electronic throttle control motor. (Throttle opening is fixed to 6°.)
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
