Home >> Subaru >> 2008 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1762

P1762

DTC P1762 LATERAL ACCELERATION SENSOR CIRCUIT HIGH

DTC DETECTING CONDITION:
Lateral G sensor output voltage fault

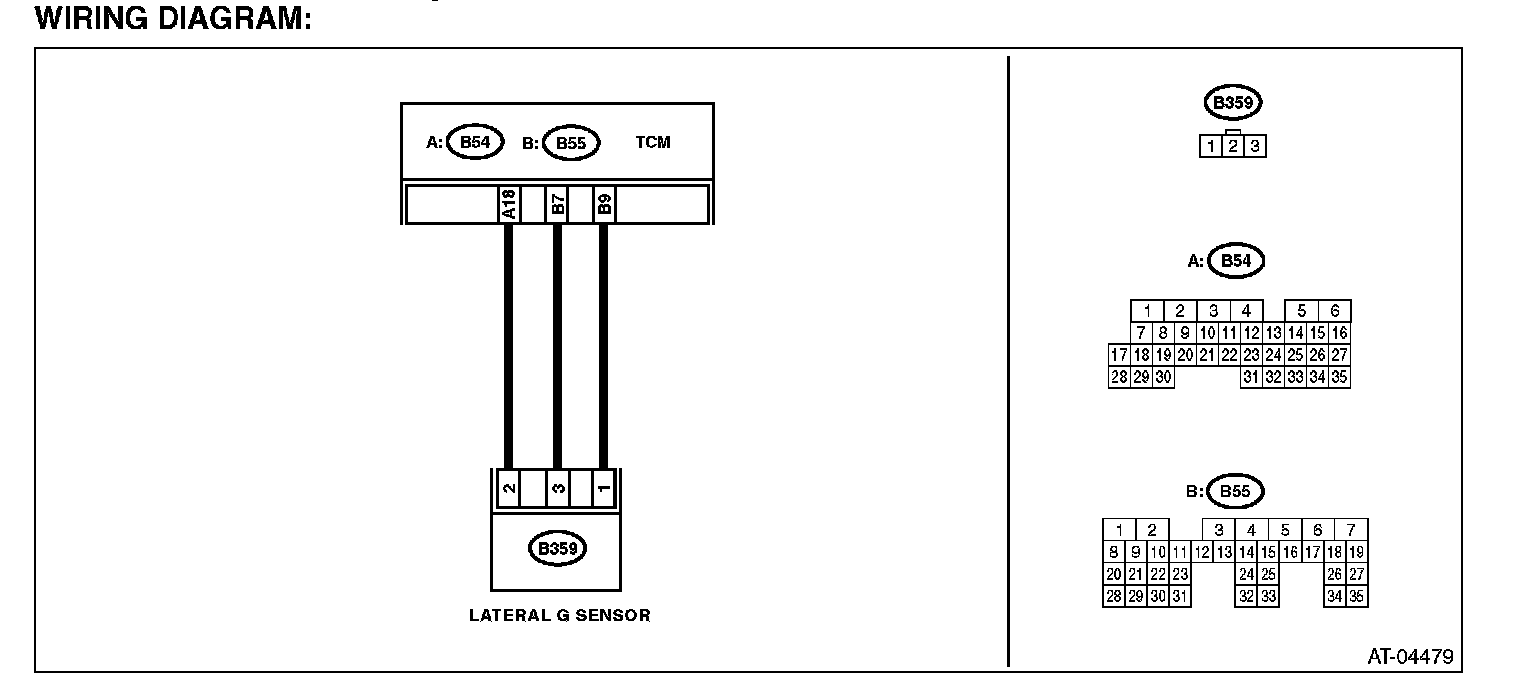

WIRING DIAGRAM:

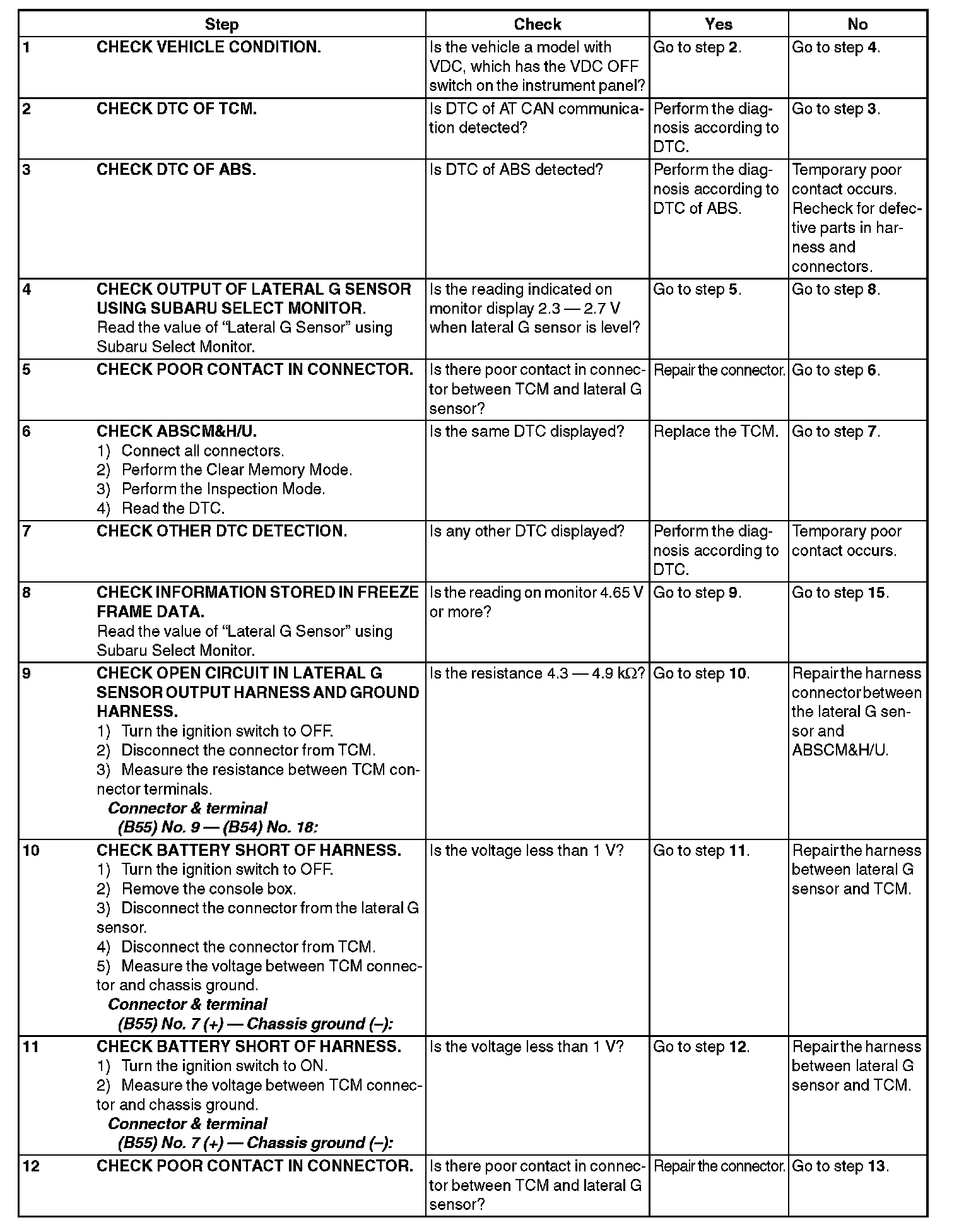

Step 1-Step 12:

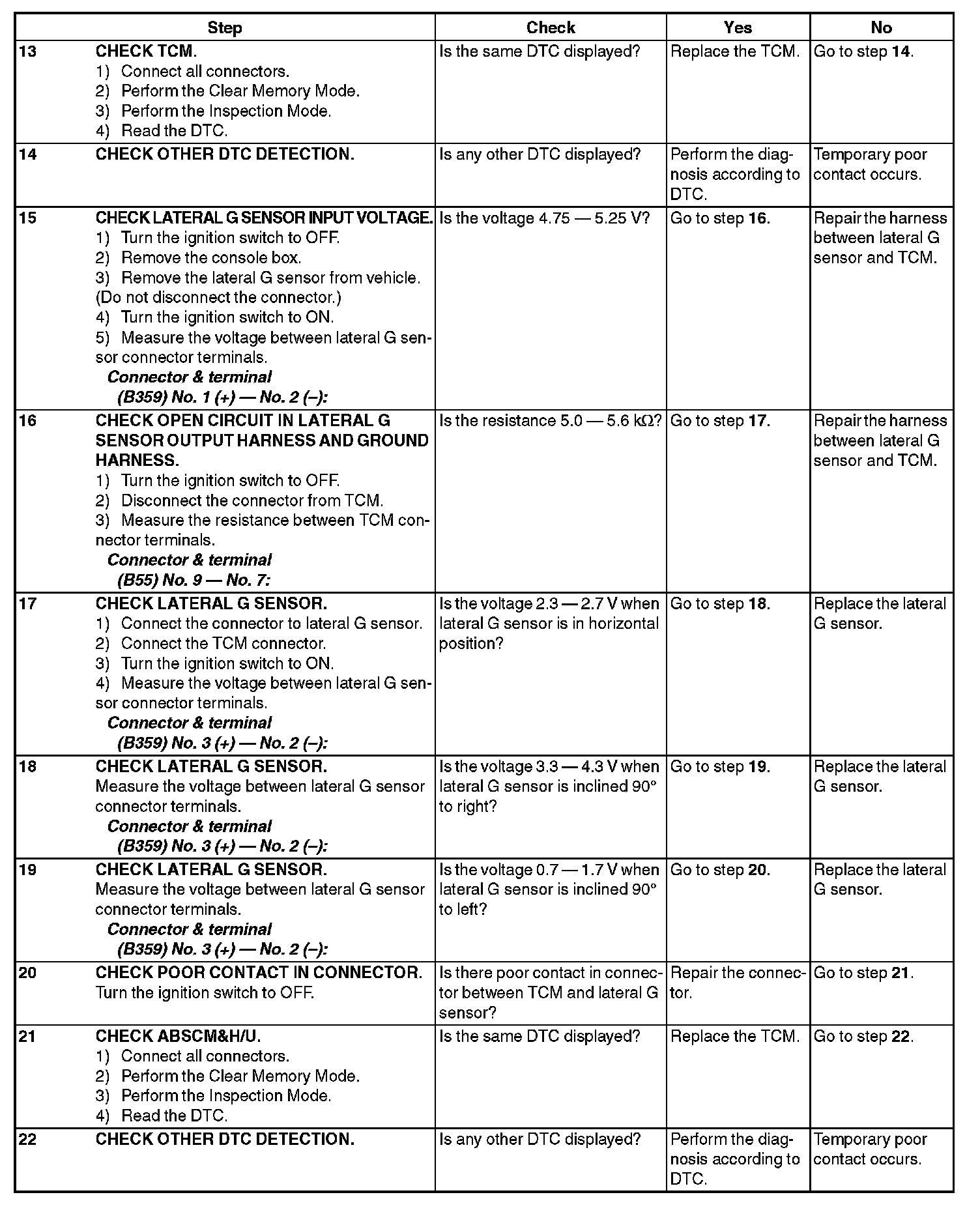

Step 13-Step 22:
