P1761

DTC P1761 LATERAL ACCELERATION SENSOR CIRCUIT LOW

DTC DETECTING CONDITION:
^ Lateral G sensor open circuit or output voltage fault (Model without VDC)
^ CAN communication malfunction (Model with VDC)

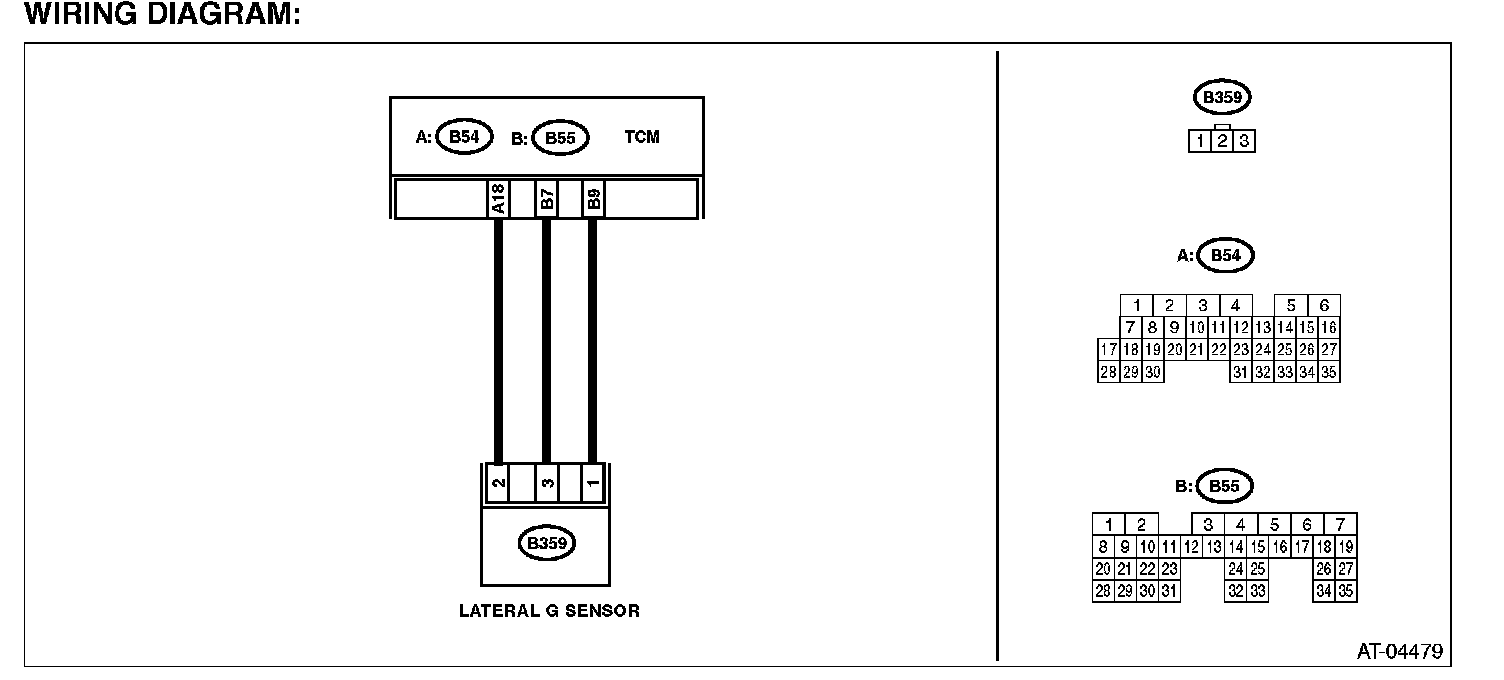

WIRING DIAGRAM:

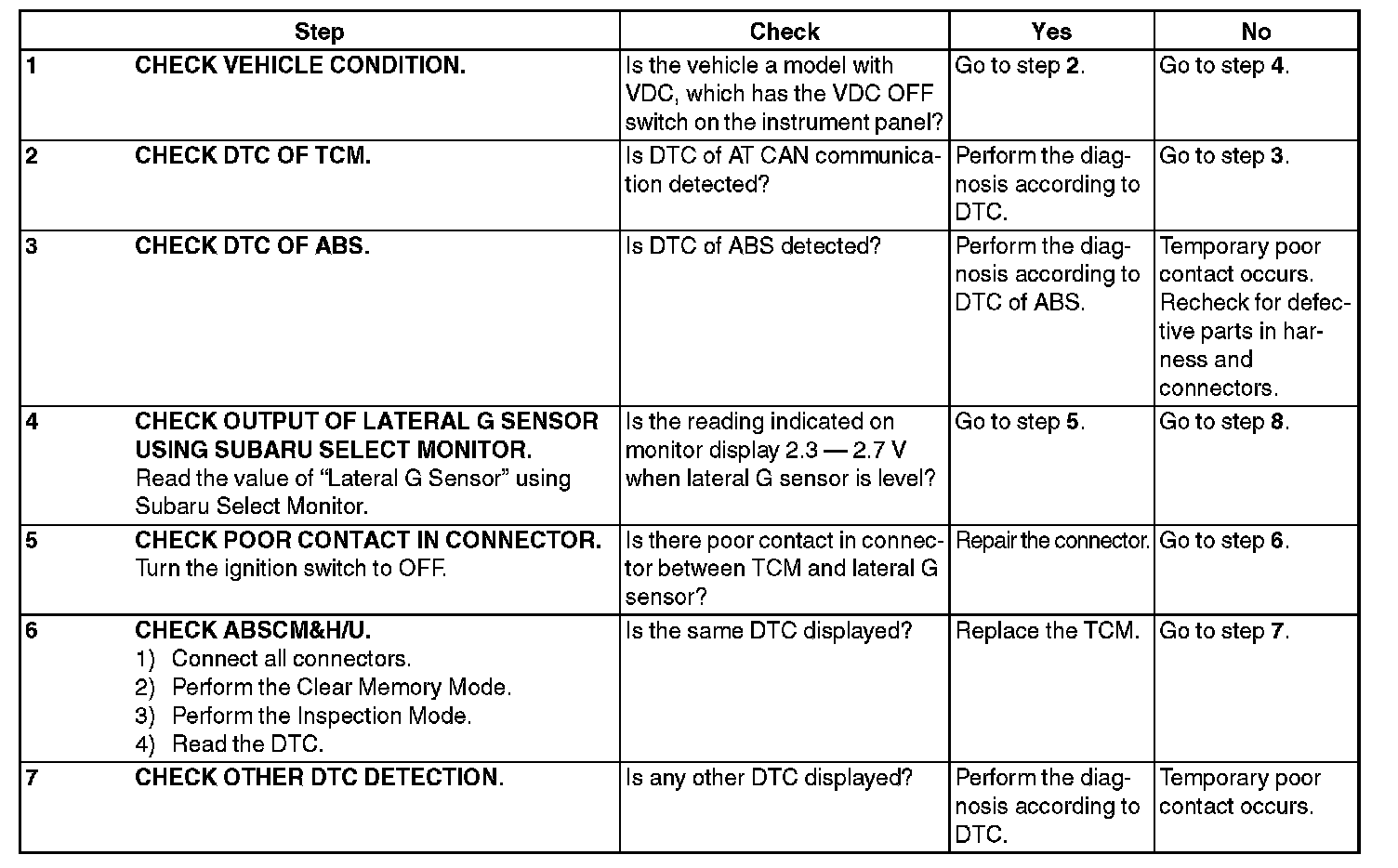

Step 1-Step 7:

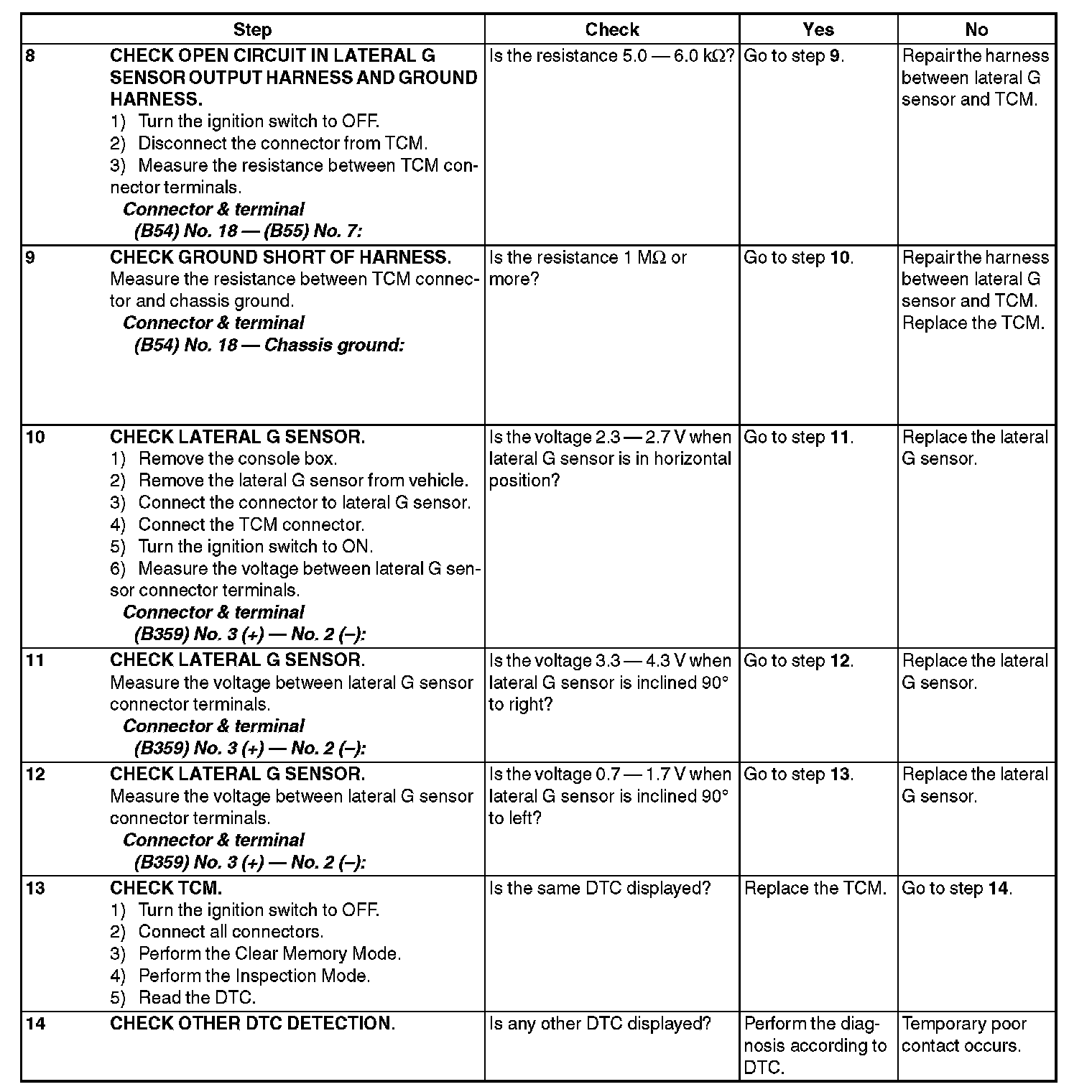

Step 8-Step 14:
