P1760

DTC P1760 LATERAL ACCELERATION SENSOR PERFORMANCE PROBLEM

DTC DETECTING CONDITION:
Lateral G sensor output voltage fault

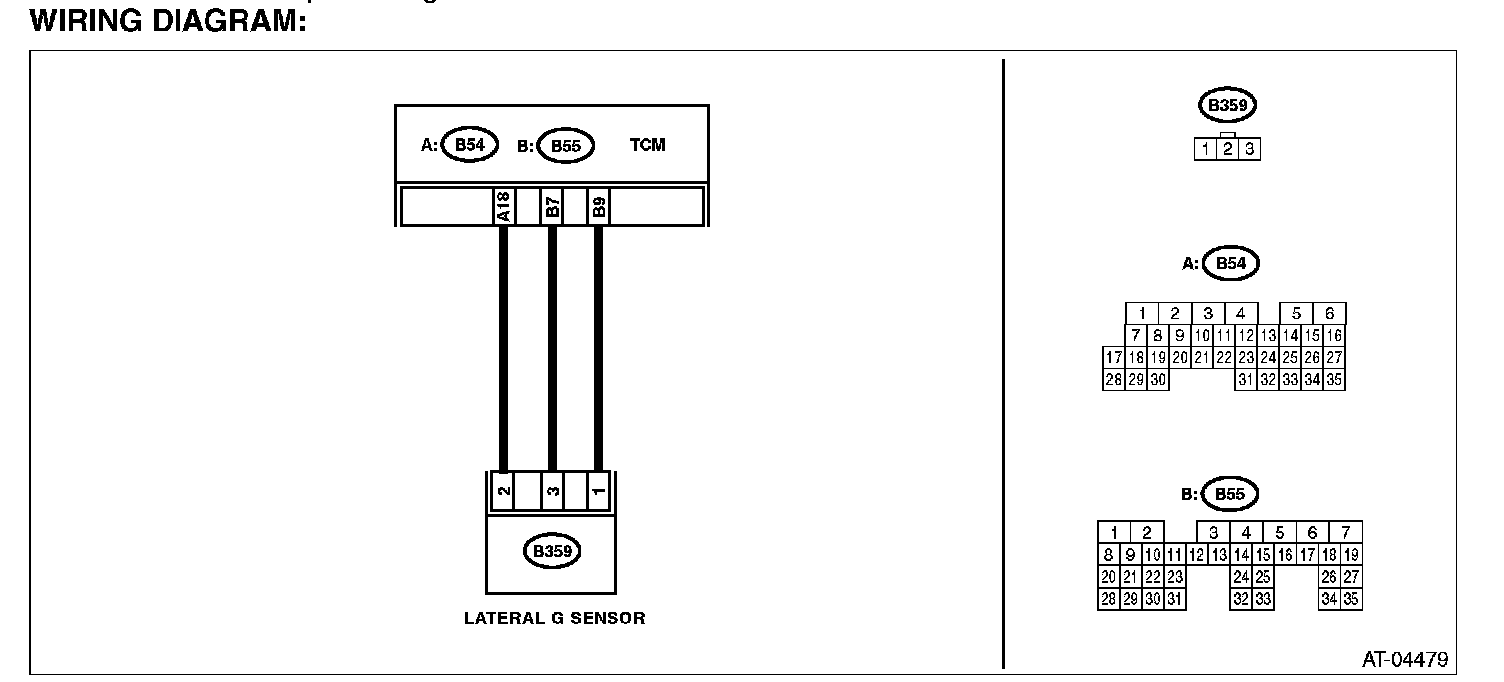

WIRING DIAGRAM:

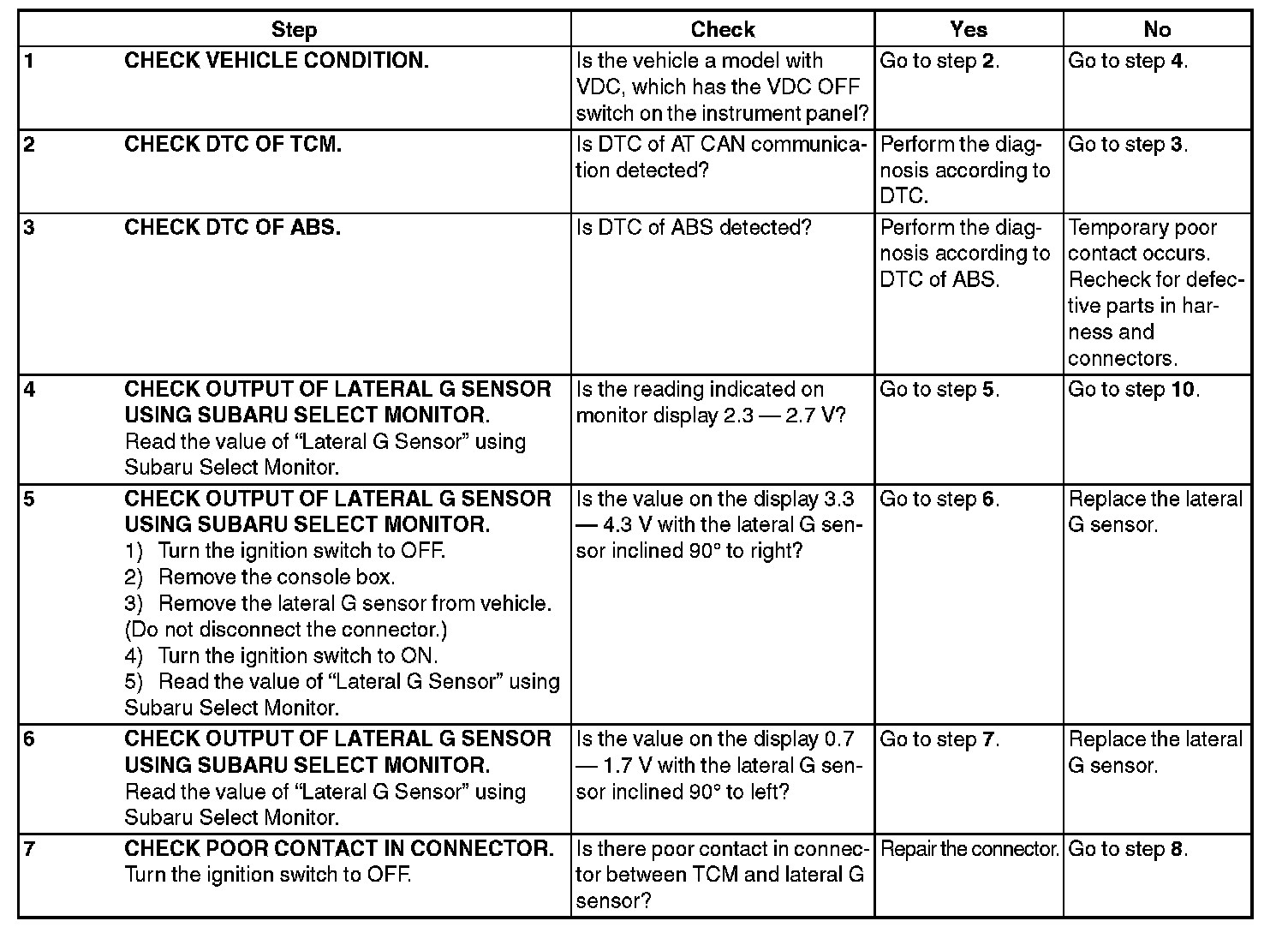

Step 1-Step 7:

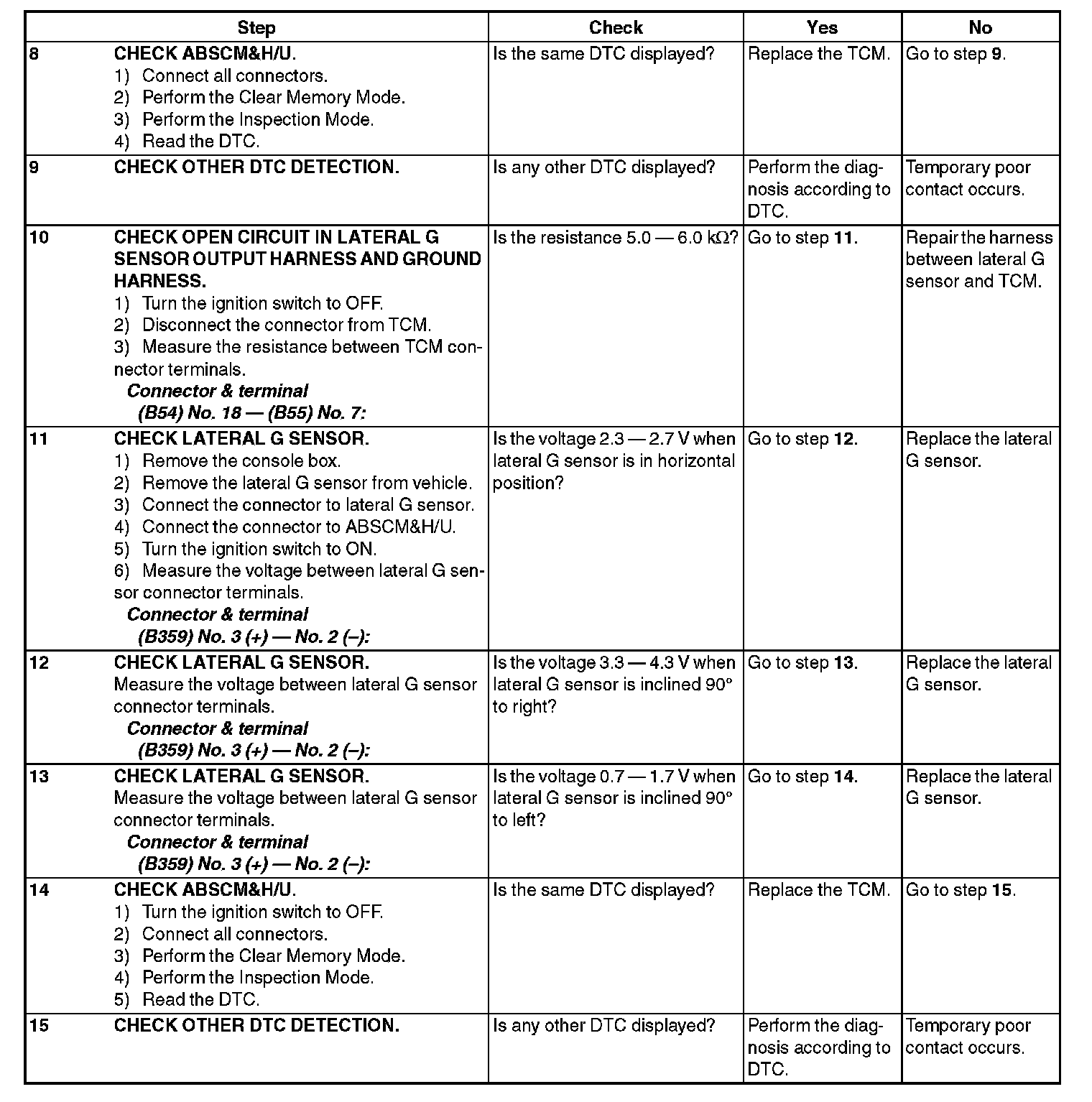

Step 8-Step 15:
