P1706
DTC P1706 AT VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION (REAR WHEEL)DTC DETECTING CONDITION:
Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM:
^ Shifting quality malfunction
^ Tight corner braking phenomenon occurs.

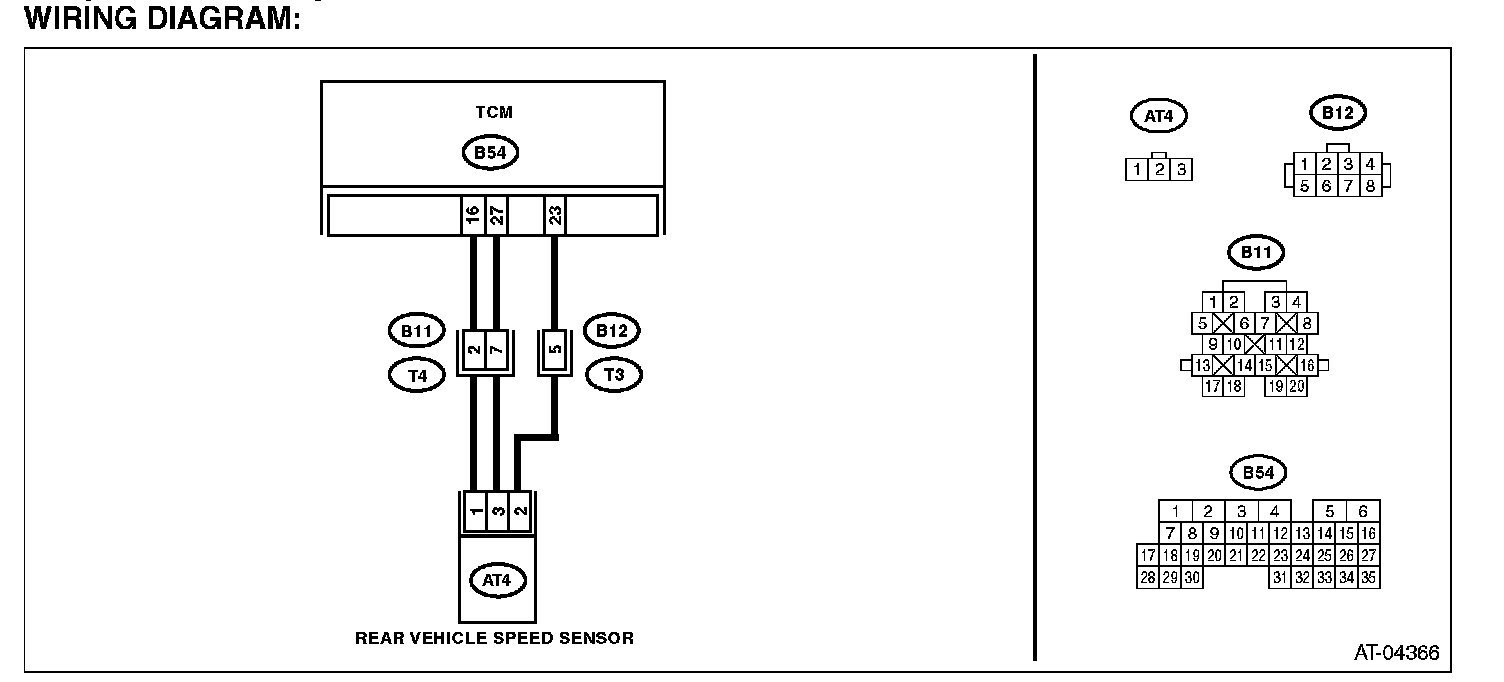

WIRING DIAGRAM:

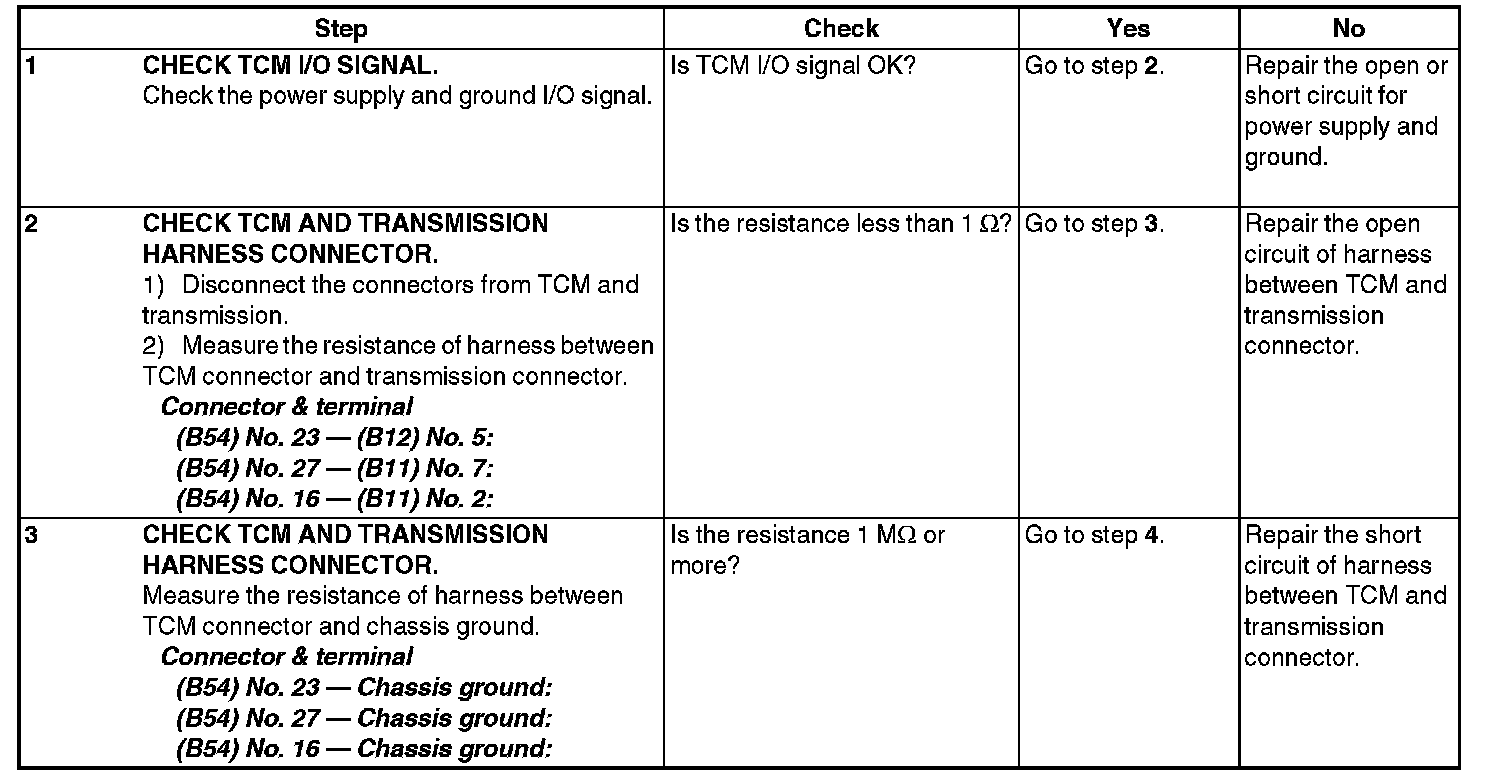

Step 1-Step 3:

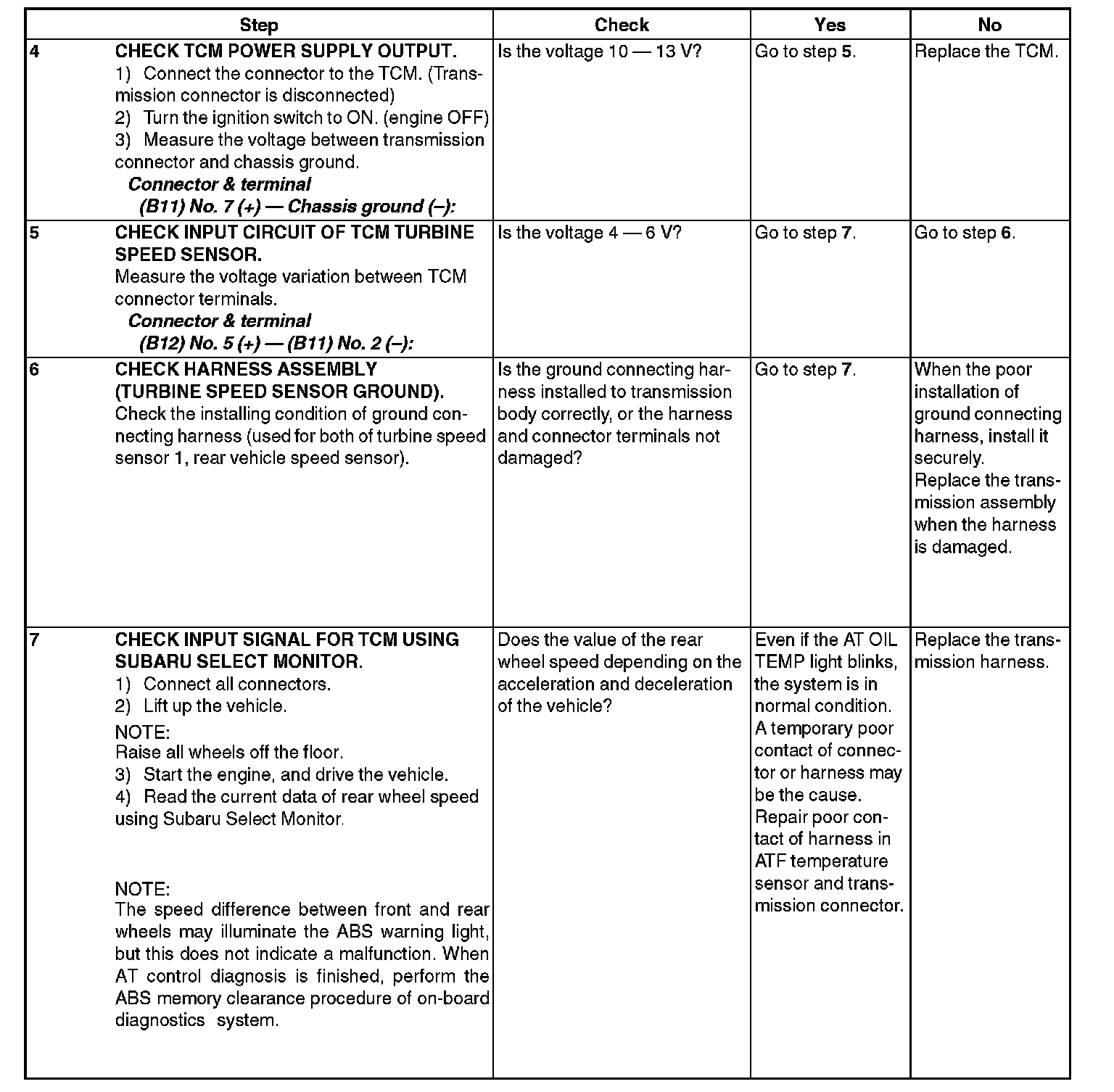

Step 4-Step 7:
