Outline of Diagnosis

DTC P1570 ANTENNA

DTC DETECTING CONDITION:
Faulty antenna

WIRING DIAGRAM:

Wiring Diagram:

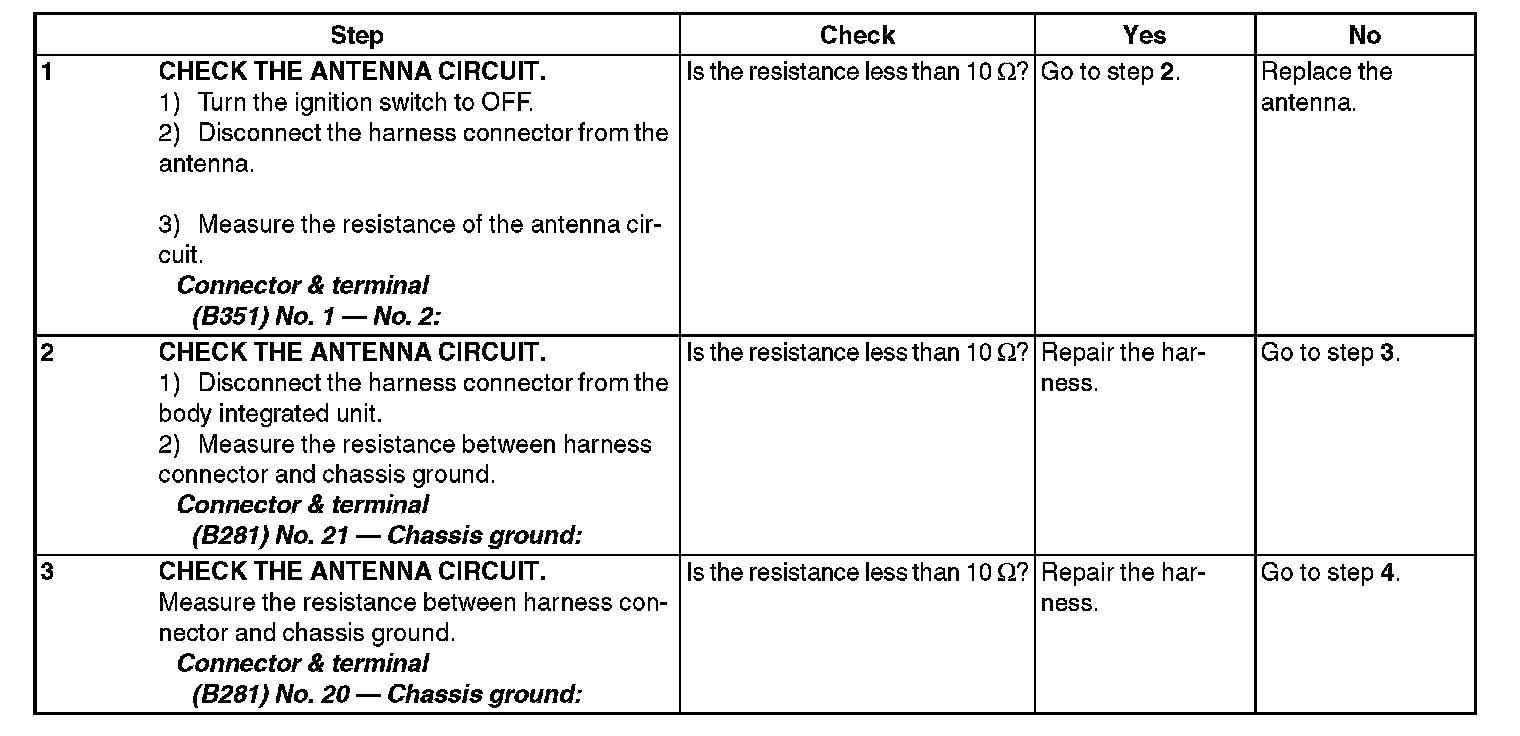

Step 1-3:

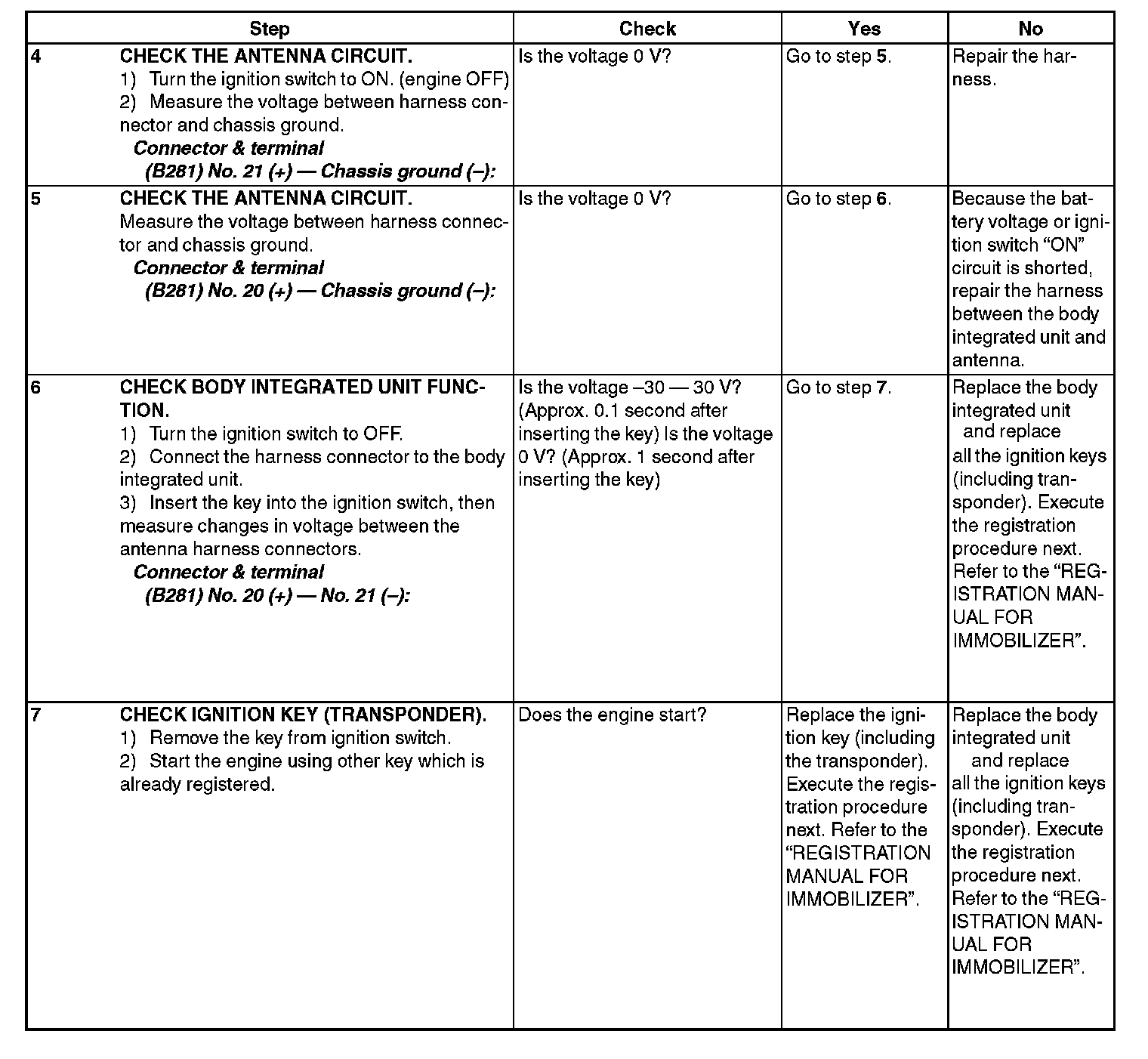

Step 4-7:
