Engine - Diagnostics
DTC P1420 FUEL TANK PRESSURE CONTROL SOL. VALVE CIRCUIT HIGHDTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

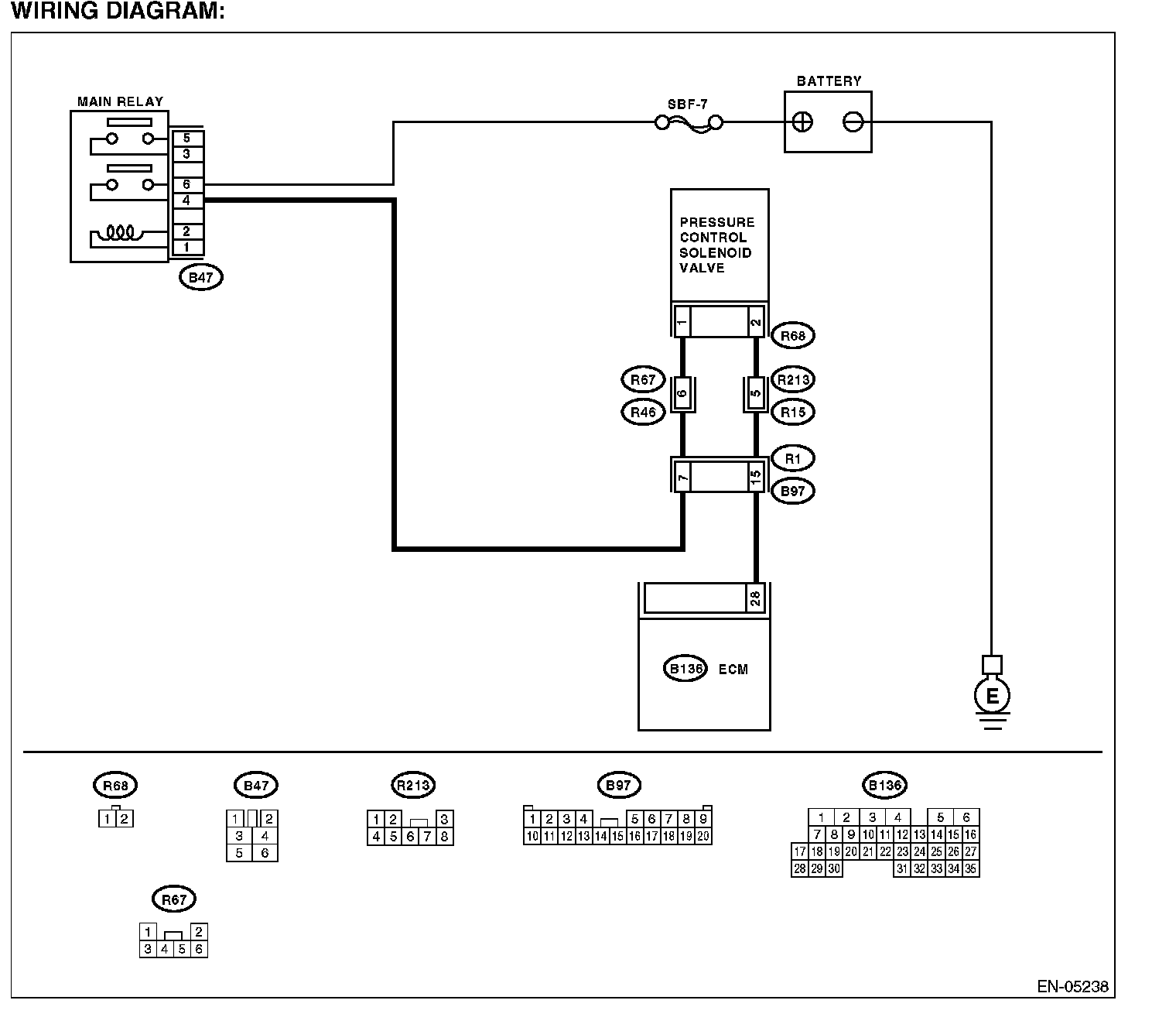

Wiring Diagram:

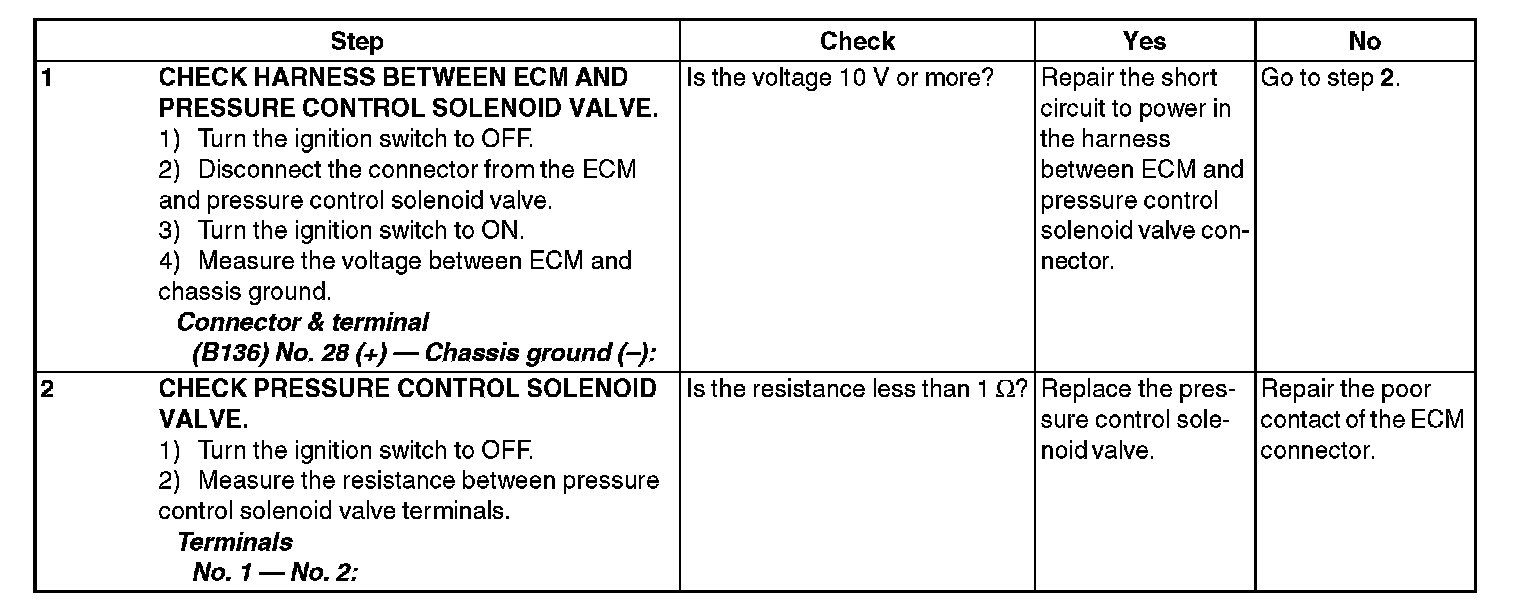

Step 1-2:
