Engine - Diagnostics

DTC P1160 RETURN SPRING FAILURE

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Improper idling
- Poor driving performance
- Engine stalls.

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

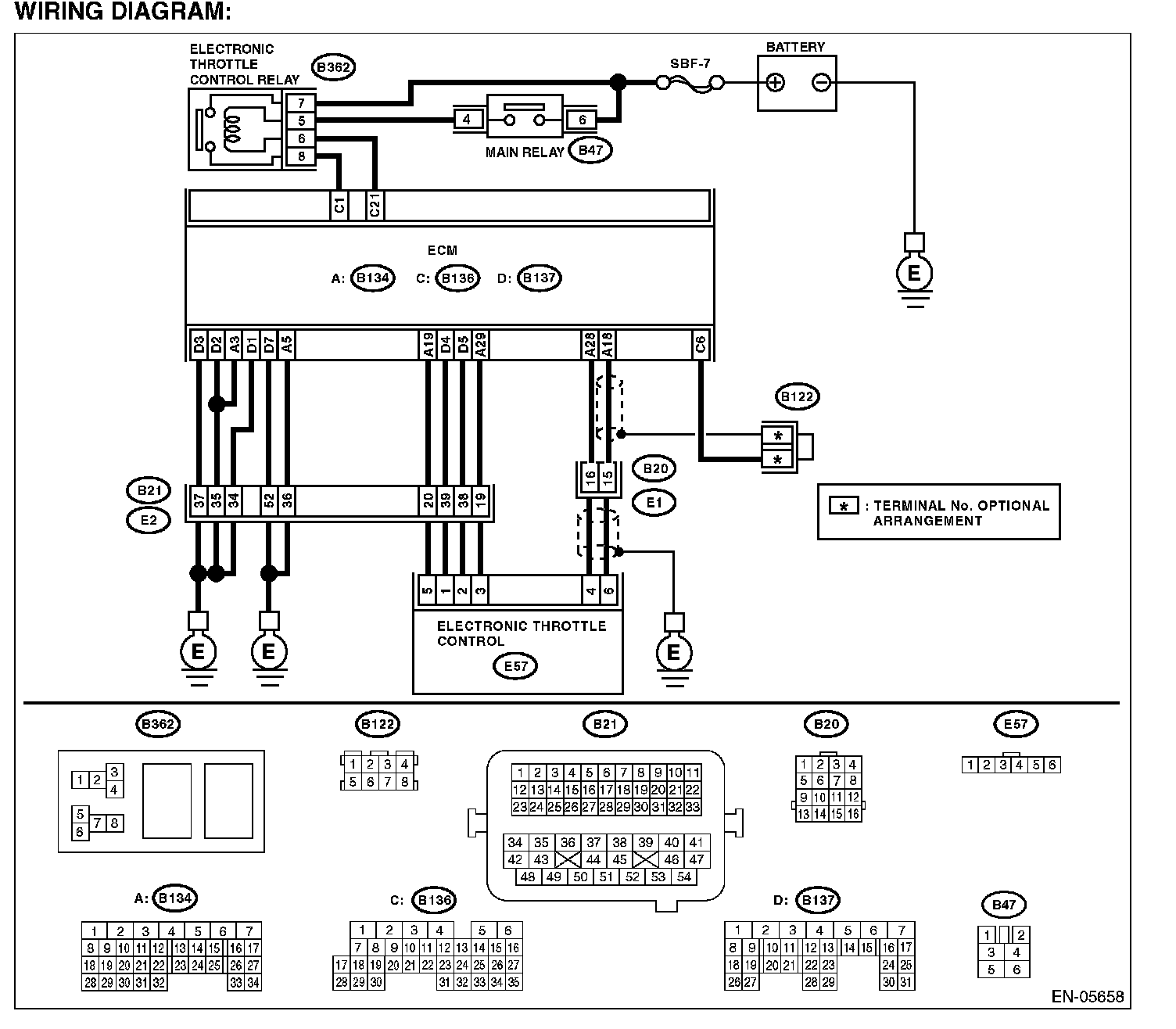

Wiring Diagram:

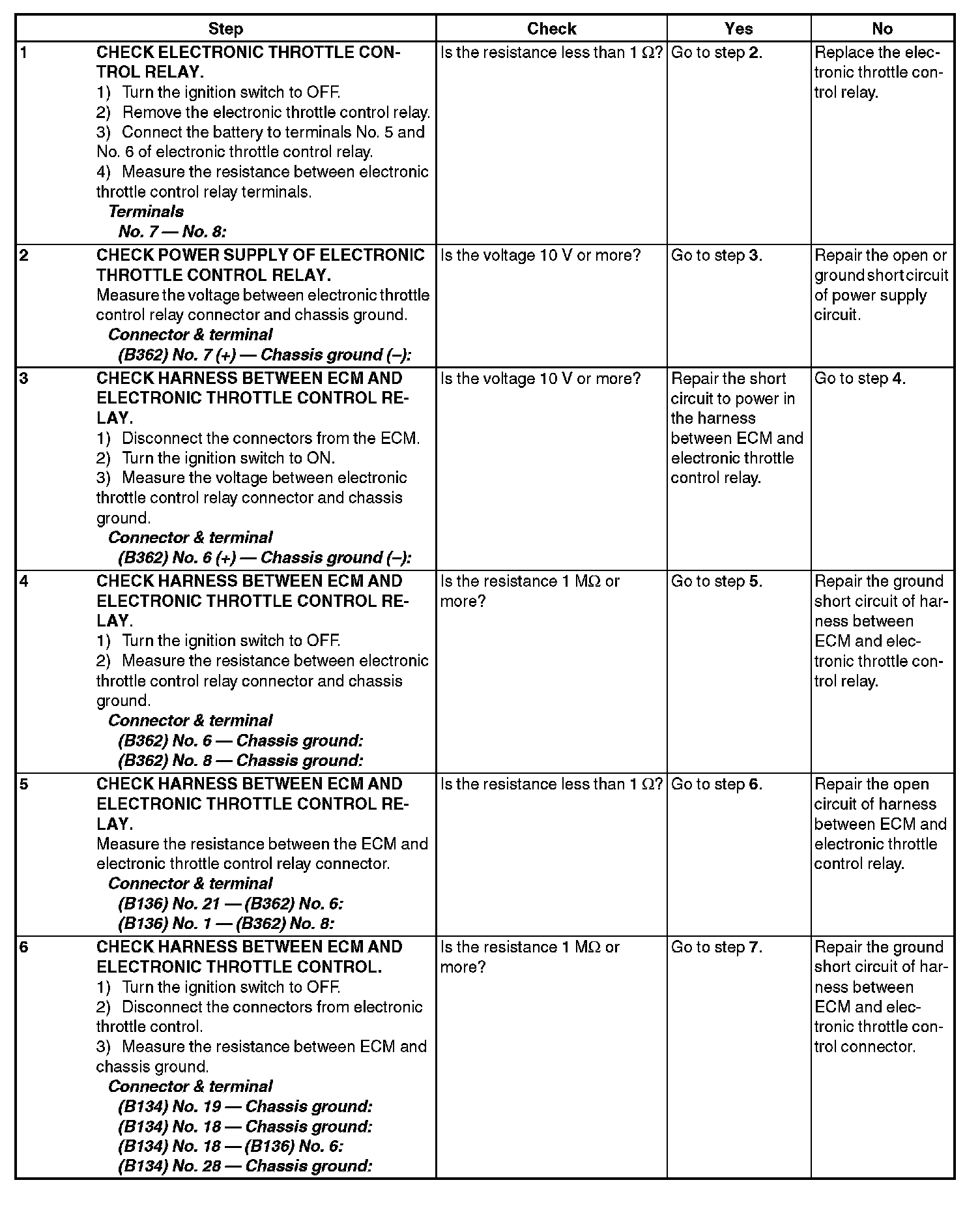

Step 1-6:

Step 7-12:

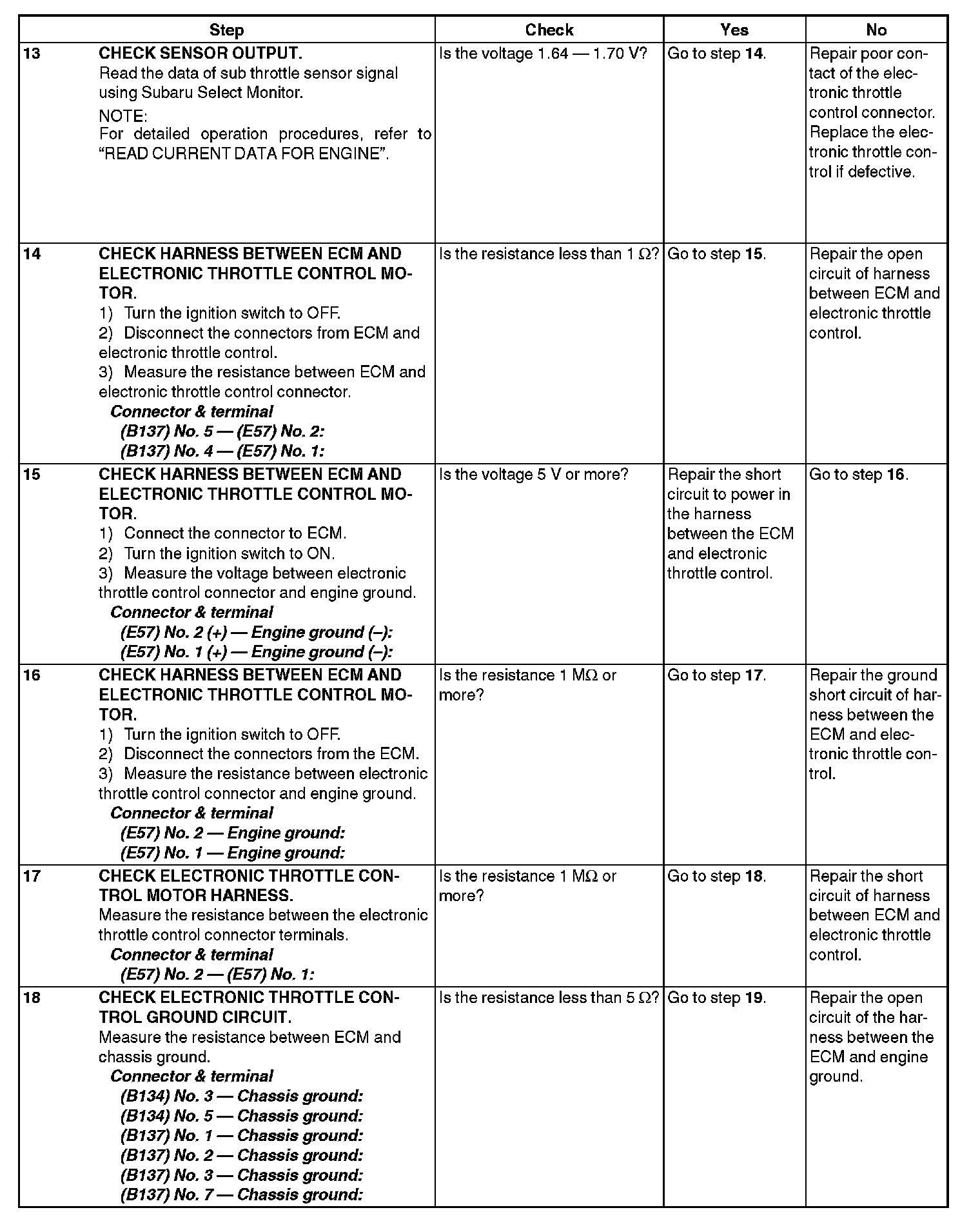

Step 13-18:

Step 19-20:
