P0957
DTC P0957 BACKUP LIGHT RELAY CIRCUIT LOWDTC DETECTING CONDITION:
Output circuit of the back-up light relay is open or shorted
TROUBLE SYMPTOM:
Back-up light does not illuminate in "R" range.

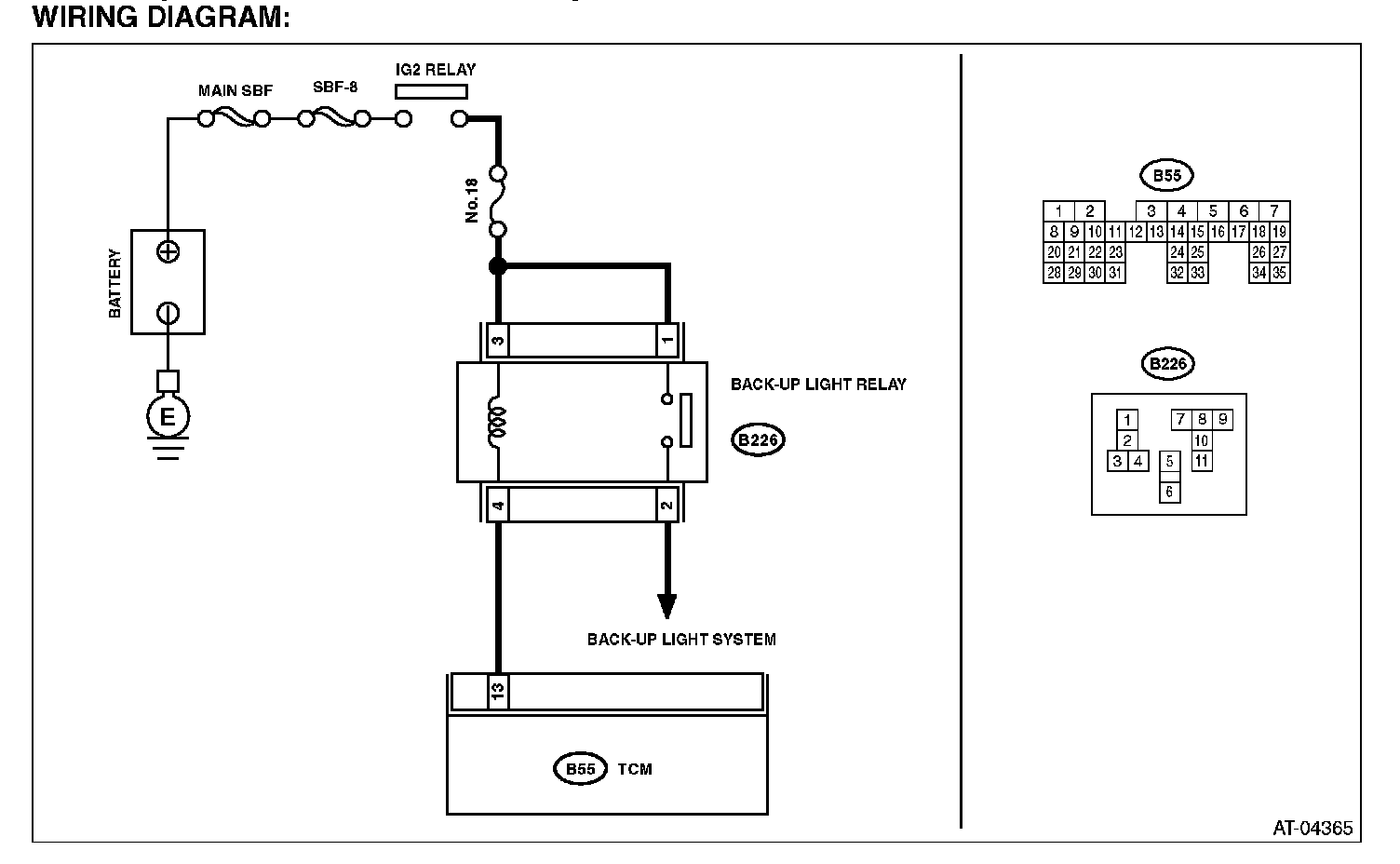

WIRING DIAGRAM:

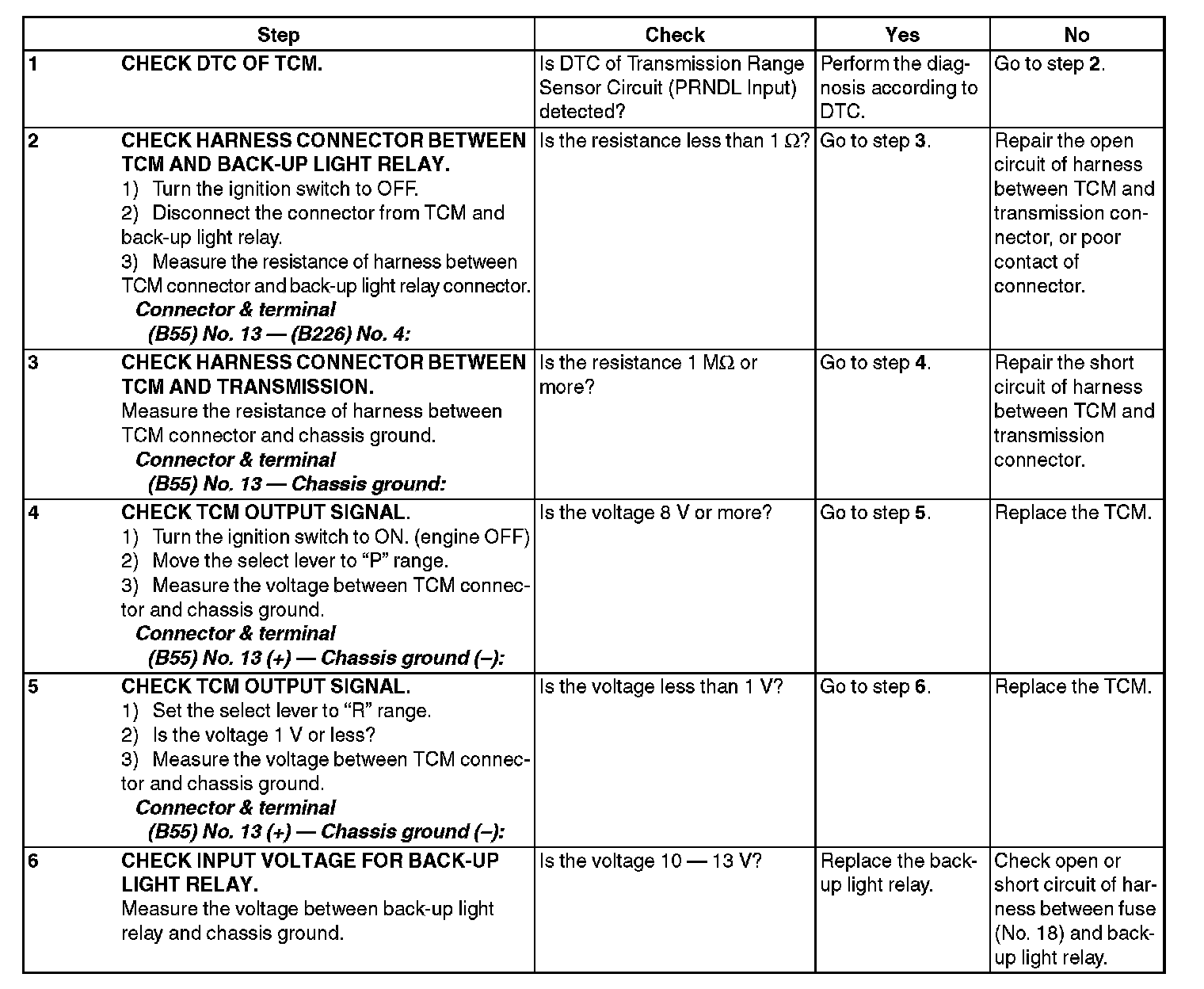

Step 1-Step 6:
DTC DETECTING CONDITION:
Output circuit of the back-up light relay is open or shorted
TROUBLE SYMPTOM:
Back-up light does not illuminate in "R" range.
WIRING DIAGRAM:
