P0801

DTC P0801 REVERSE INHIBIT CONTROL CIRCUIT

DTC DETECTING CONDITION:
Shift lock solenoid malfunction, open or short reverse inhibitor control circuit

TROUBLE SYMPTOM:
^ Gear is shifted from "N" range to "R" range during driving at 20 km/h (12 MPH) or more.
^ Gear can not be shifted from "N" range to "R" range though the vehicle is parked.

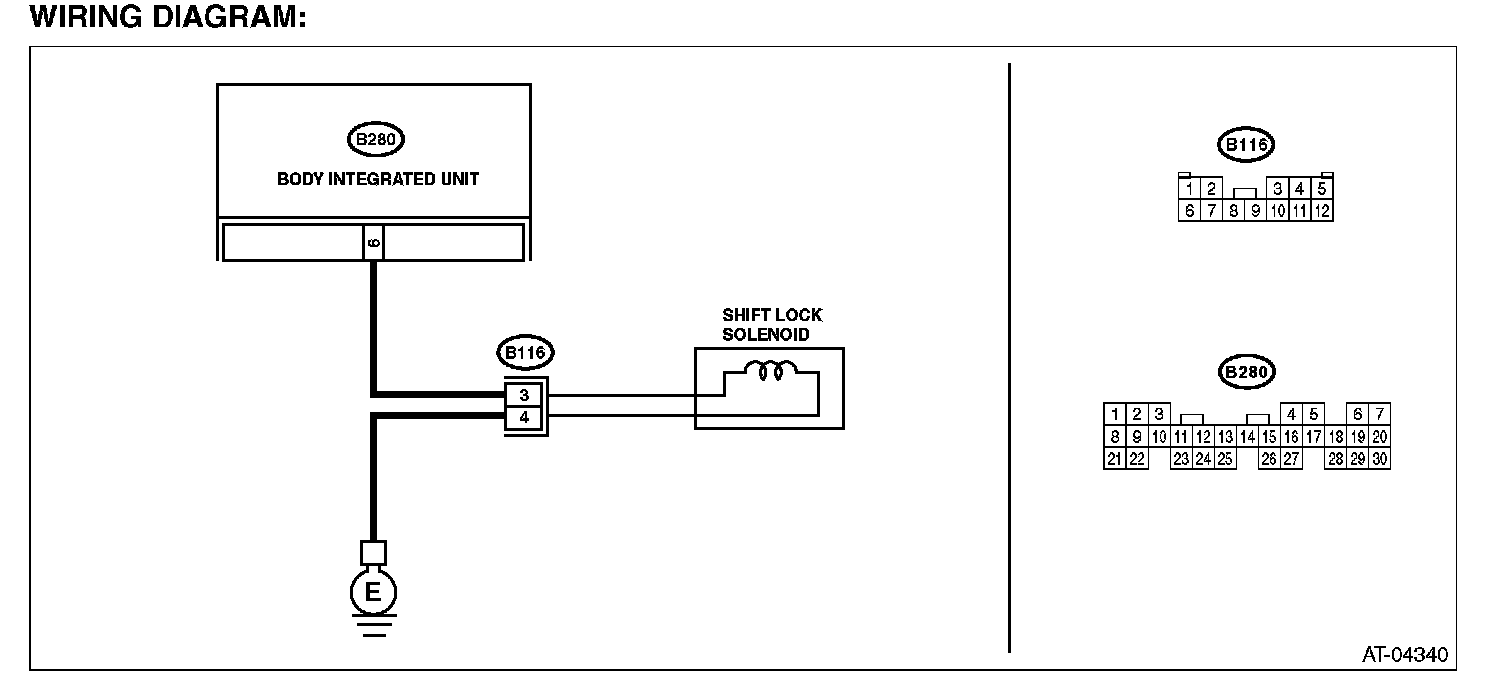

WIRING DIAGRAM:

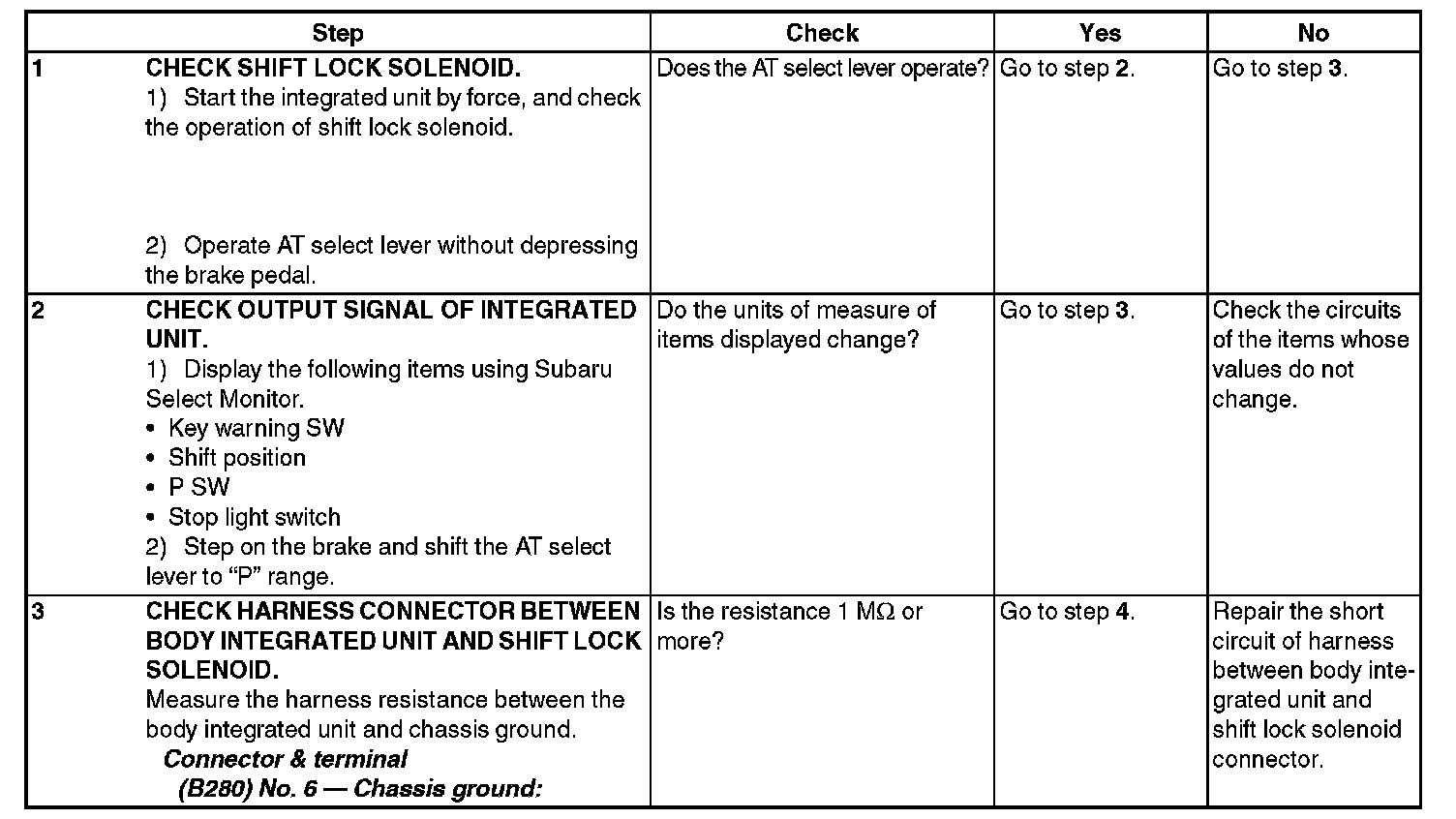

Step 1-Step 3:

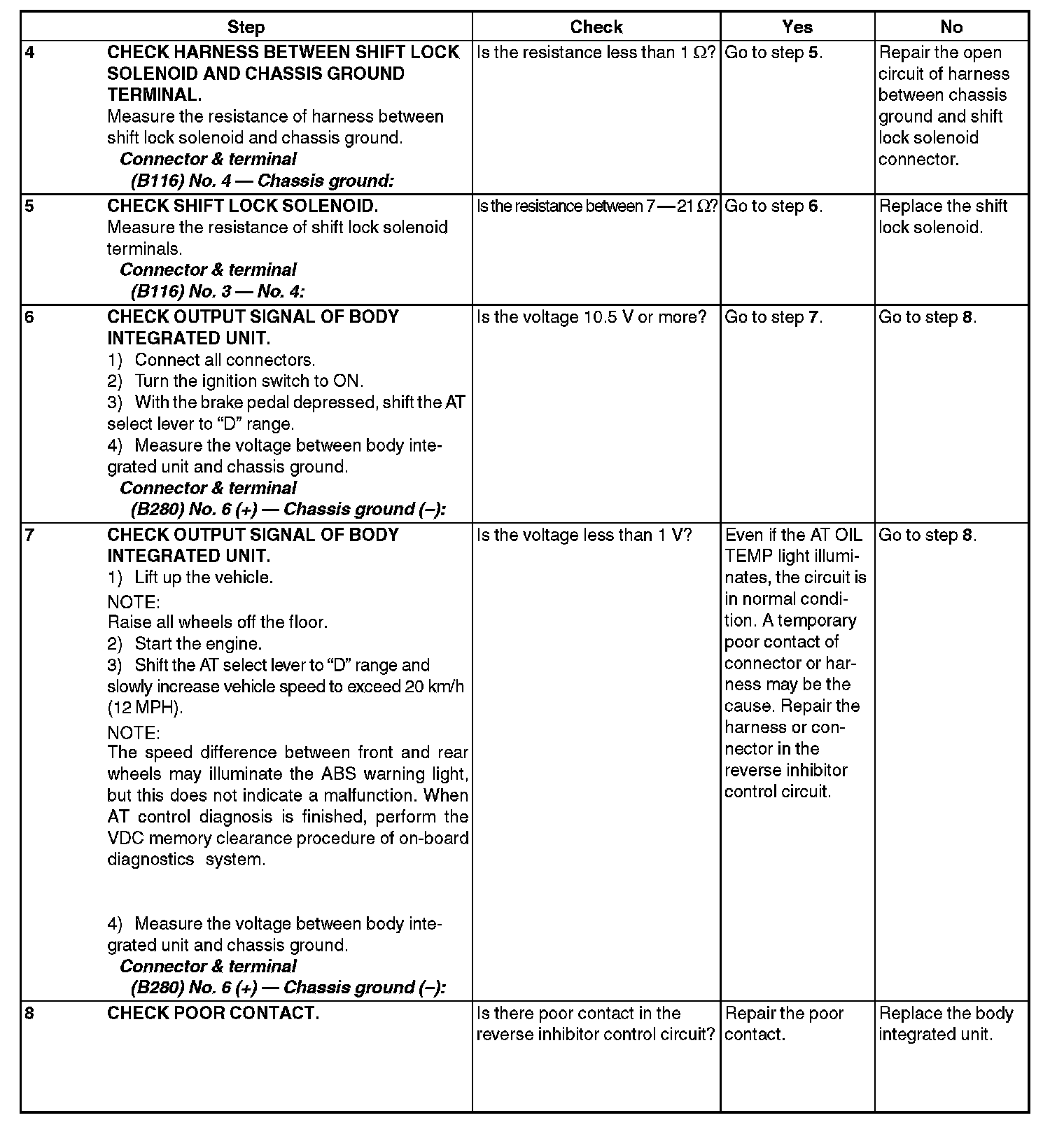

Step 4-Step 8:
