P0773
DTC P0773 SHIFT SOLENOID "E" ELECTRICALDTC DETECTING CONDITION:
Output signal circuit of forward brake linear solenoid is open or shorted.
TROUBLE SYMPTOM:
Locked to 2nd, 3rd, 4th gear.

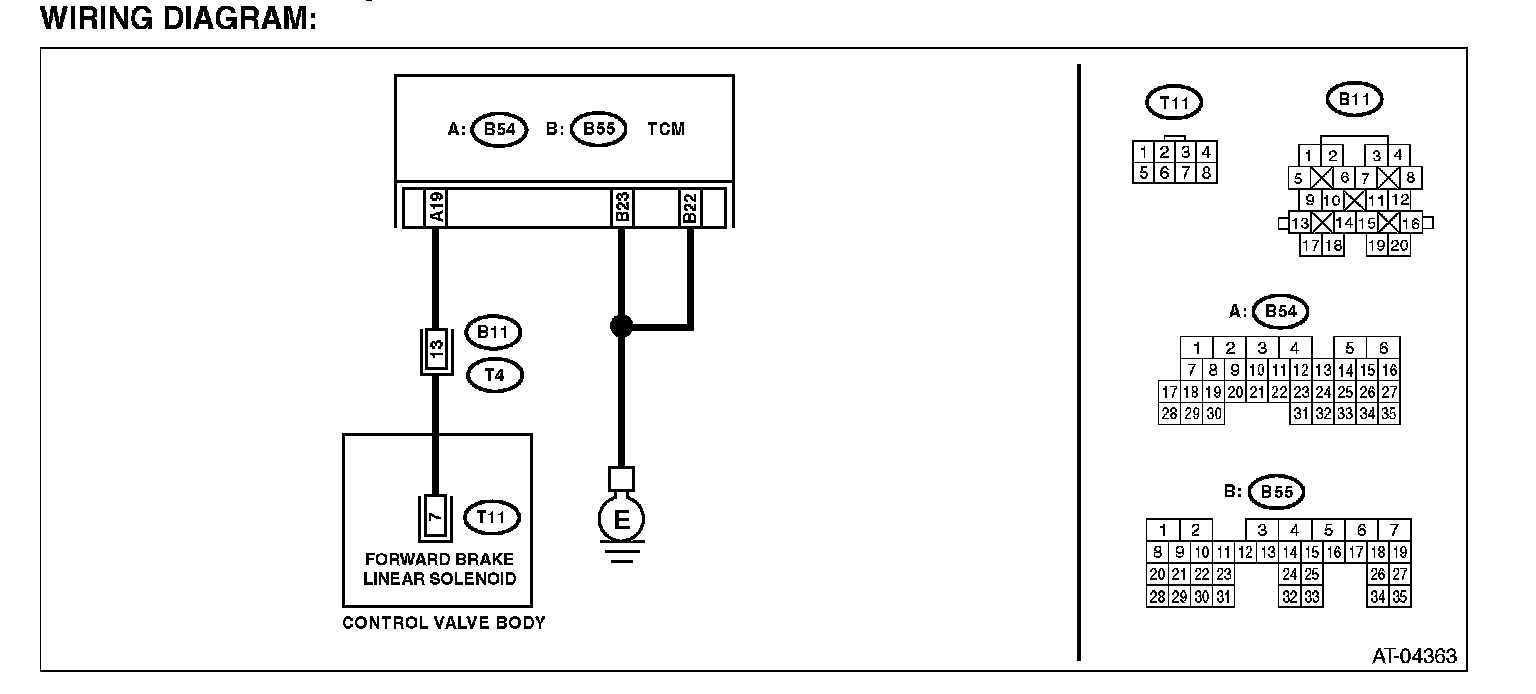

WIRING DIAGRAM:

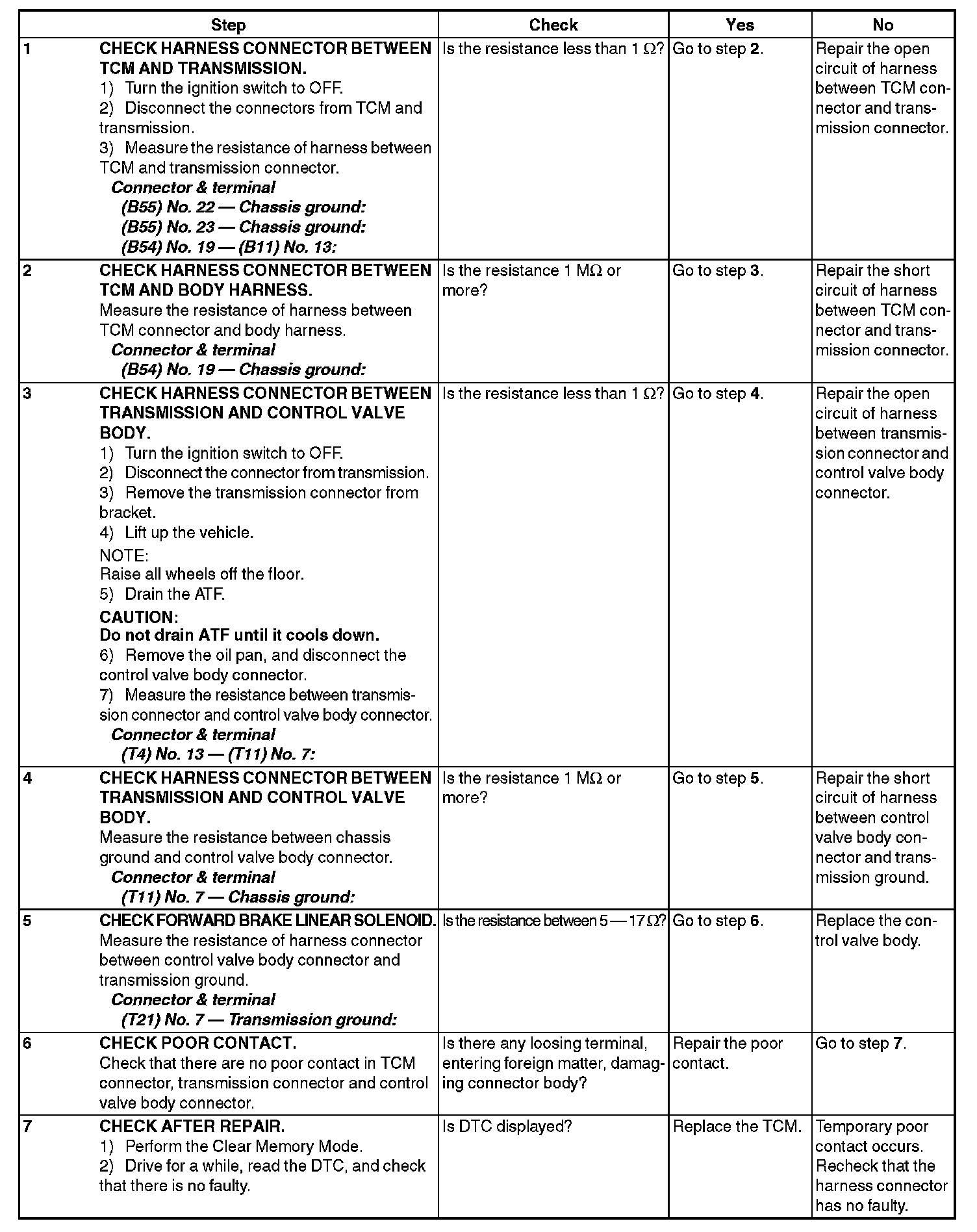

Step 1-Step 7:
DTC DETECTING CONDITION:
Output signal circuit of forward brake linear solenoid is open or shorted.
TROUBLE SYMPTOM:
Locked to 2nd, 3rd, 4th gear.
WIRING DIAGRAM:
