P0766

DTC P0766 SHIFT SOLENOID "D" PERFORMANCE OR STUCK OFF

DTC DETECTING CONDITION:
Output signal value of direct clutch linear solenoid does not match the oil pressure.

TROUBLE SYMPTOM:
Locked to 1st or 4th gear.

WIRING DIAGRAM:

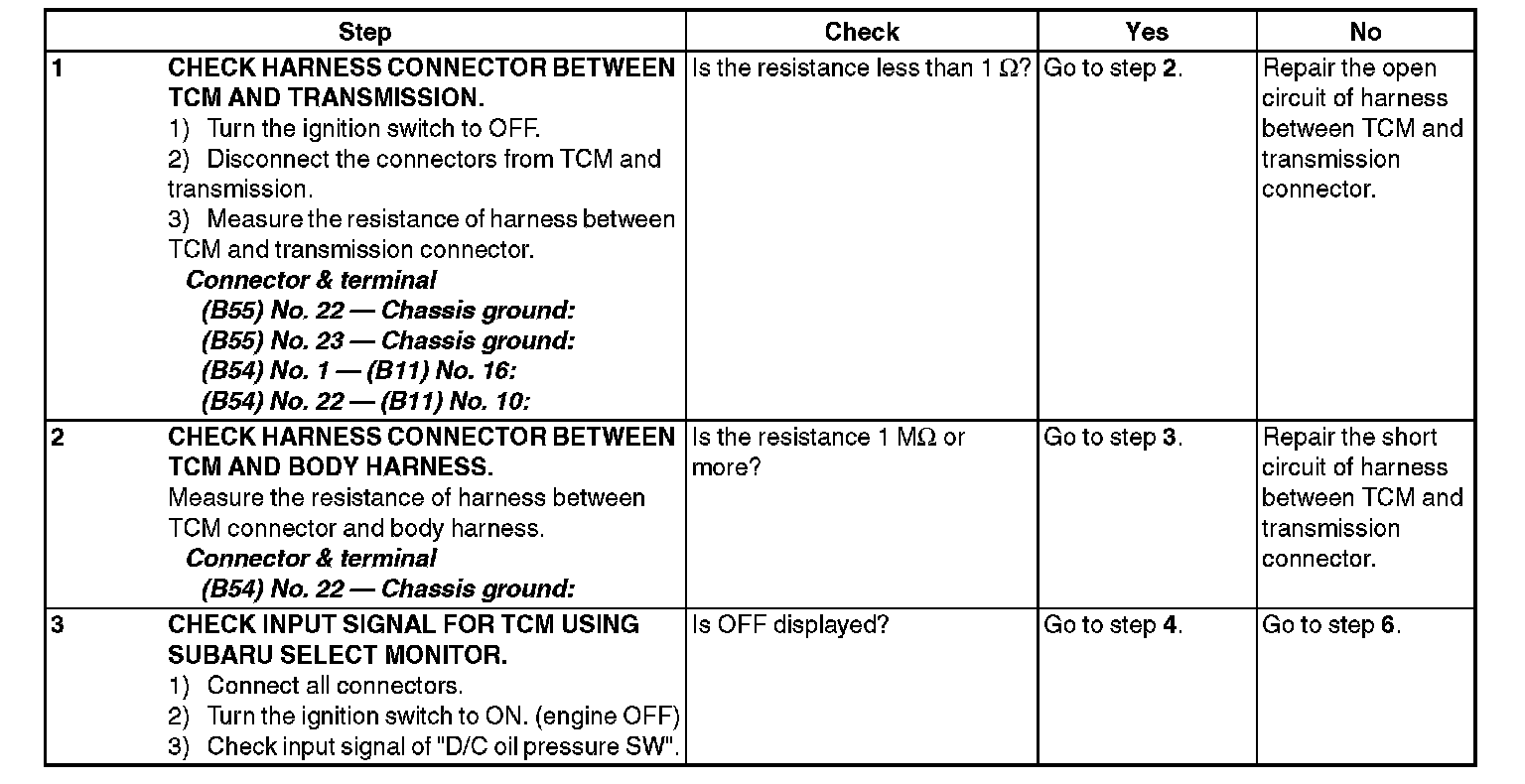

Step 1-Step 3:

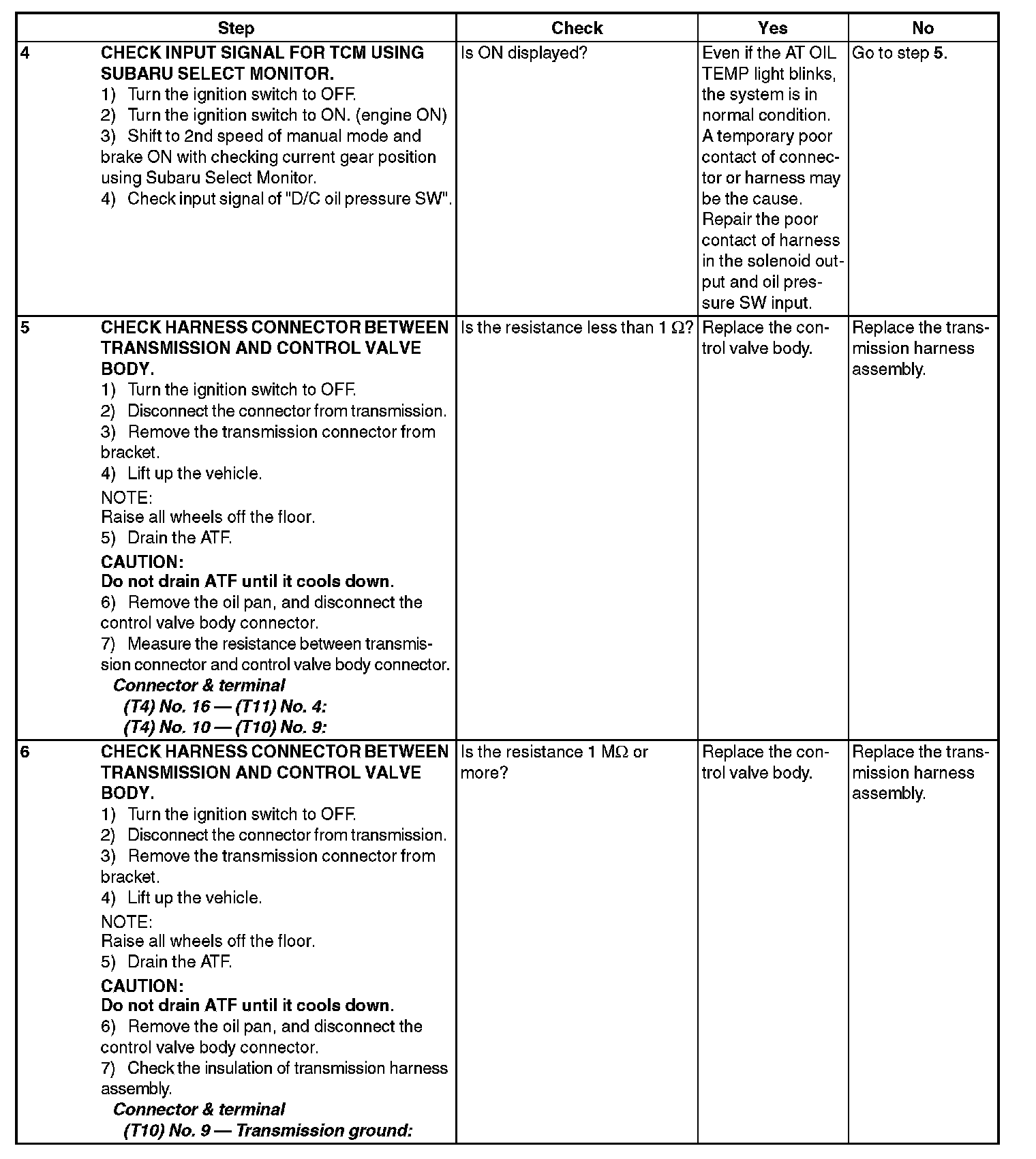

Step 4-Step 6:
