P0748

DTC P0748 PRESSURE CONTROL SOLENOID "A" ELECTRICAL

DTC DETECTING CONDITION:
Output signal circuit of line pressure linear solenoid is open or shorted.

TROUBLE SYMPTOM:
Excessive shift shock

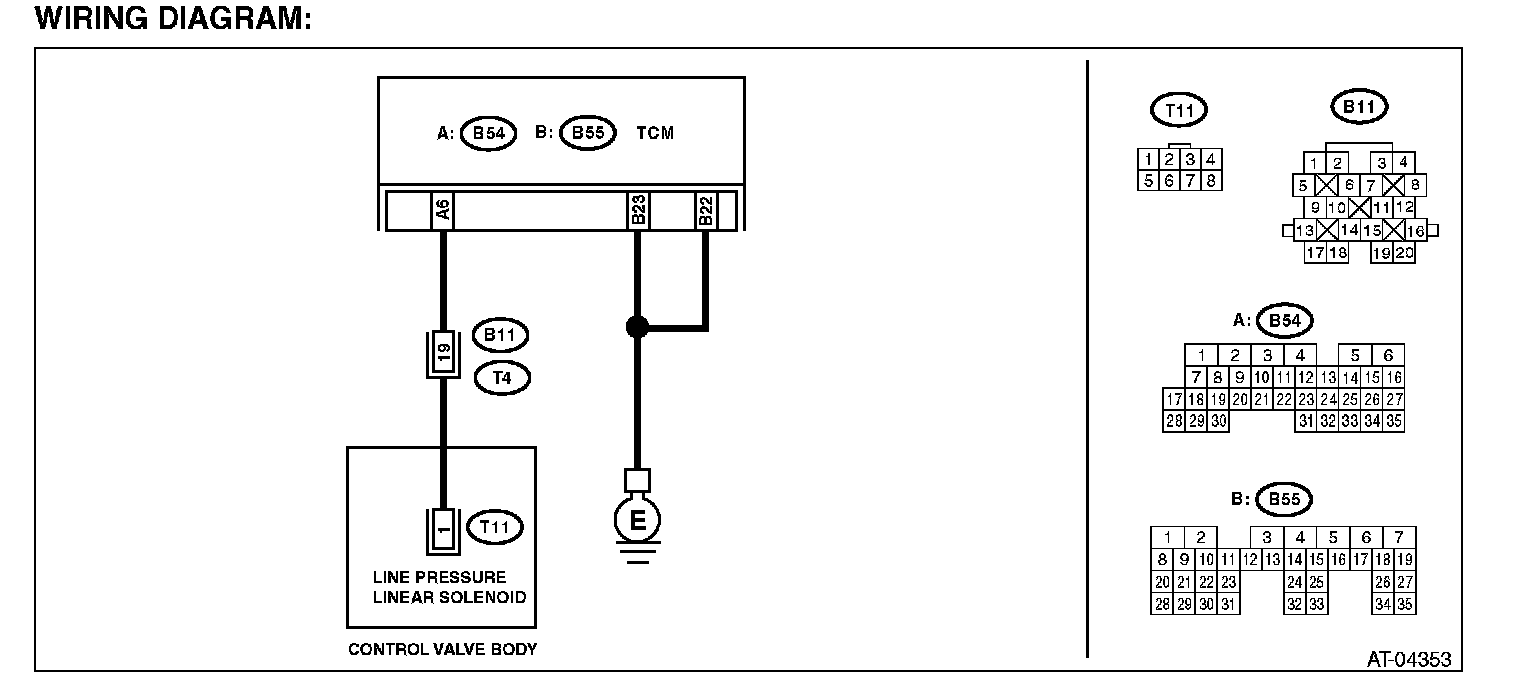

WIRING DIAGRAM:

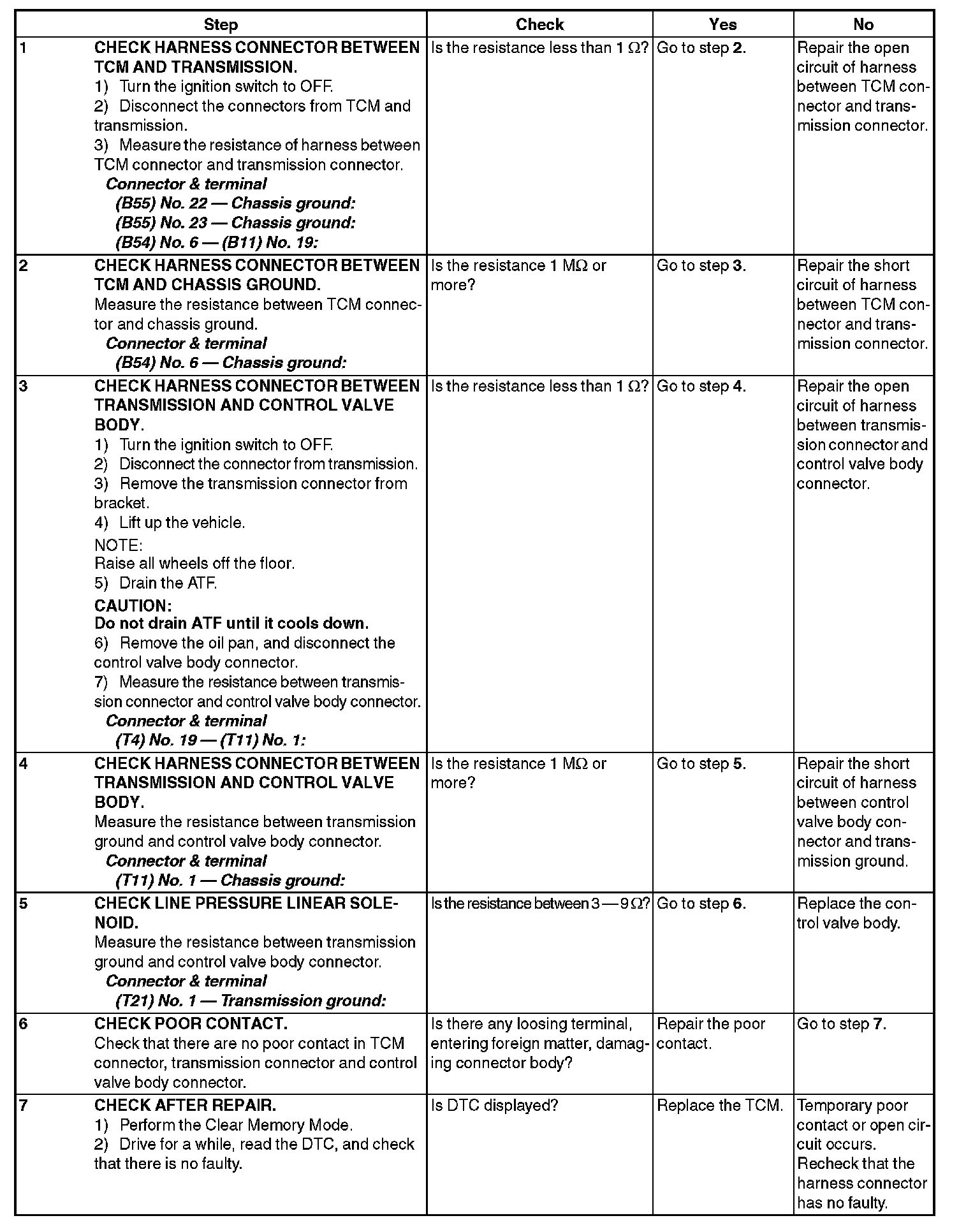

Step 1-Step 7:
