P0743
DTC P0743 TORQUE CONVERTER CLUTCH CIRCUIT ELECTRICALDTC DETECTING CONDITION:
Output signal circuit of lock-up pressure linear solenoid is open or shorted.
TROUBLE SYMPTOM:
No lock-up occurs. (After engine is warmed-up)

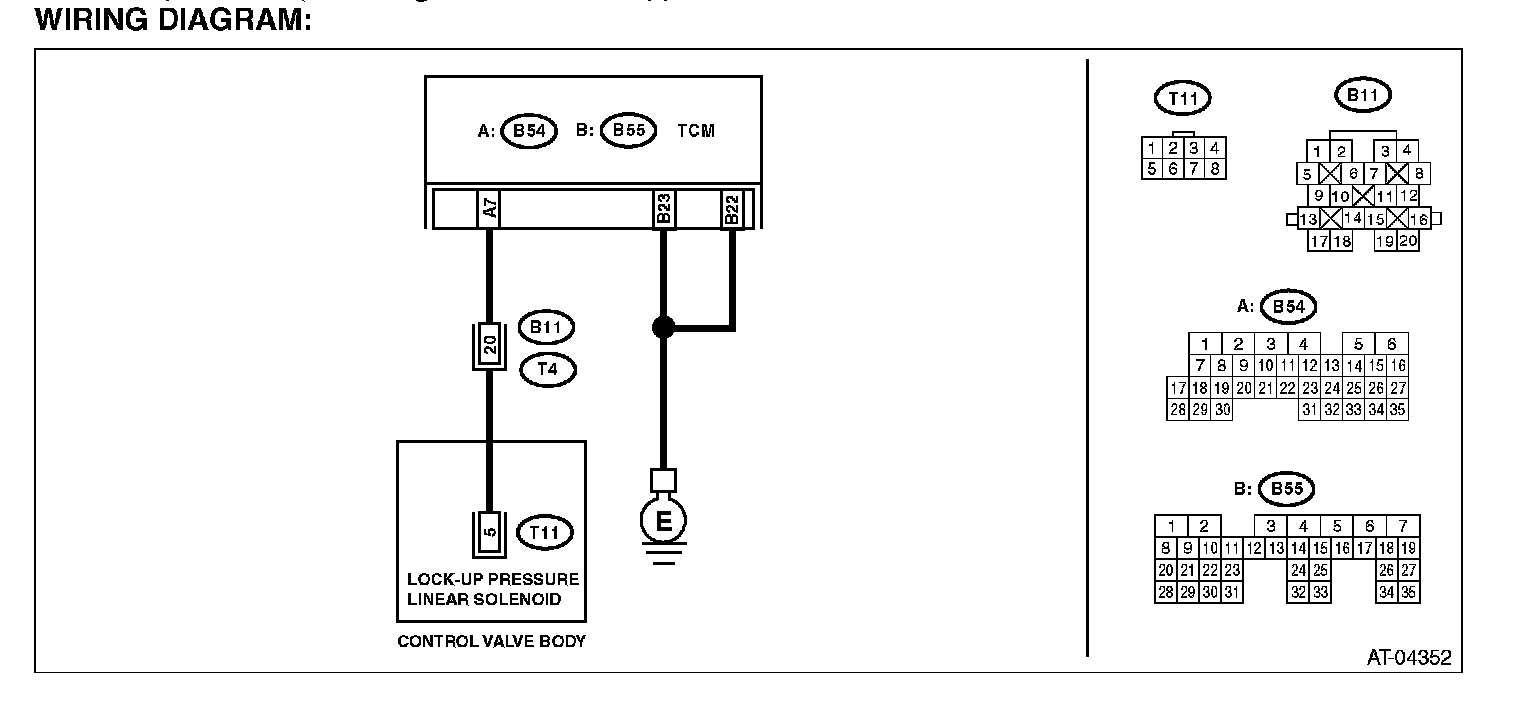

WIRING DIAGRAM:

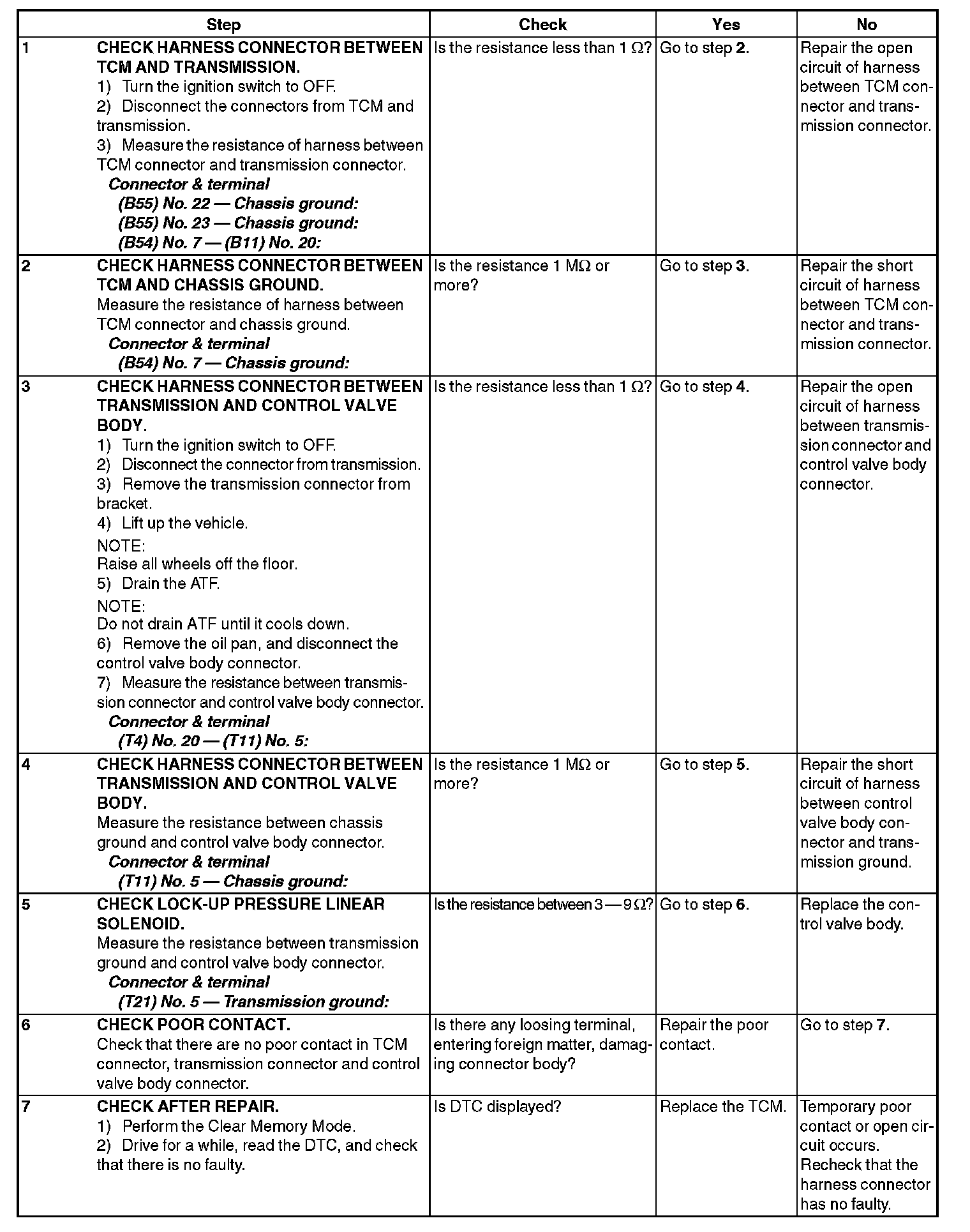

Step 1-Step 7:
