P0736

DTC P0736 REVERSE INCORRECT RATIO

DTC DETECTING CONDITION:
Target gear ratio and actual gear ratio do not match.

TROUBLE SYMPTOM:
^ Shift point is too high or too low.
^ Excessive shift shock
^ Gear is not changed.
^ The vehicle does not move in D or R range with the engine running at high speed.

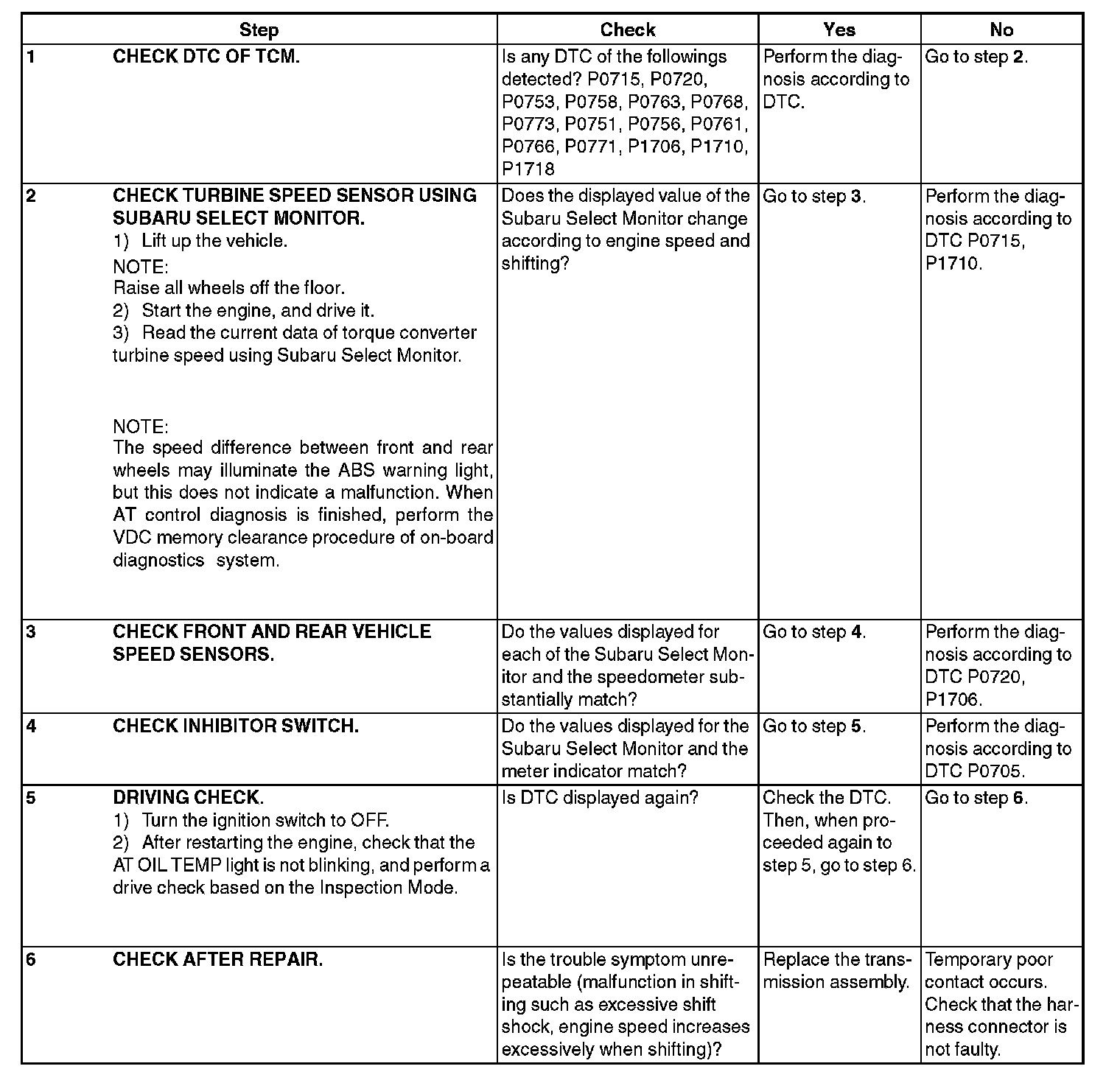

Step 1-Step 6:
