P0724

DTC P0724 BRAKE SWITCH CIRCUIT HIGH

DTC DETECTING CONDITION:
Stop light switch malfunction, open input signal circuit

TROUBLE SYMPTOM:
Gear is not shifted down when climbing a hill.

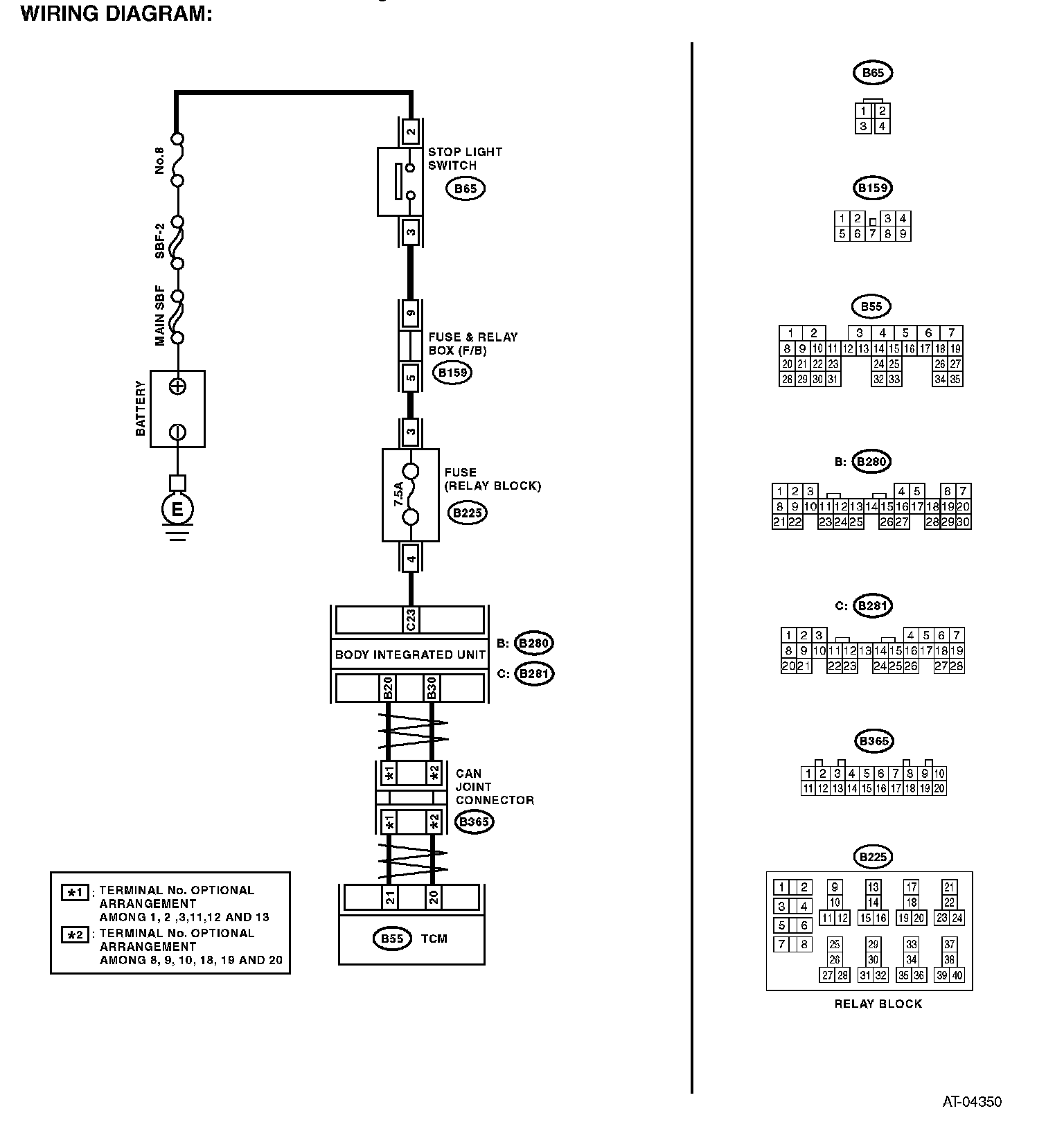

WIRING DIAGRAM:

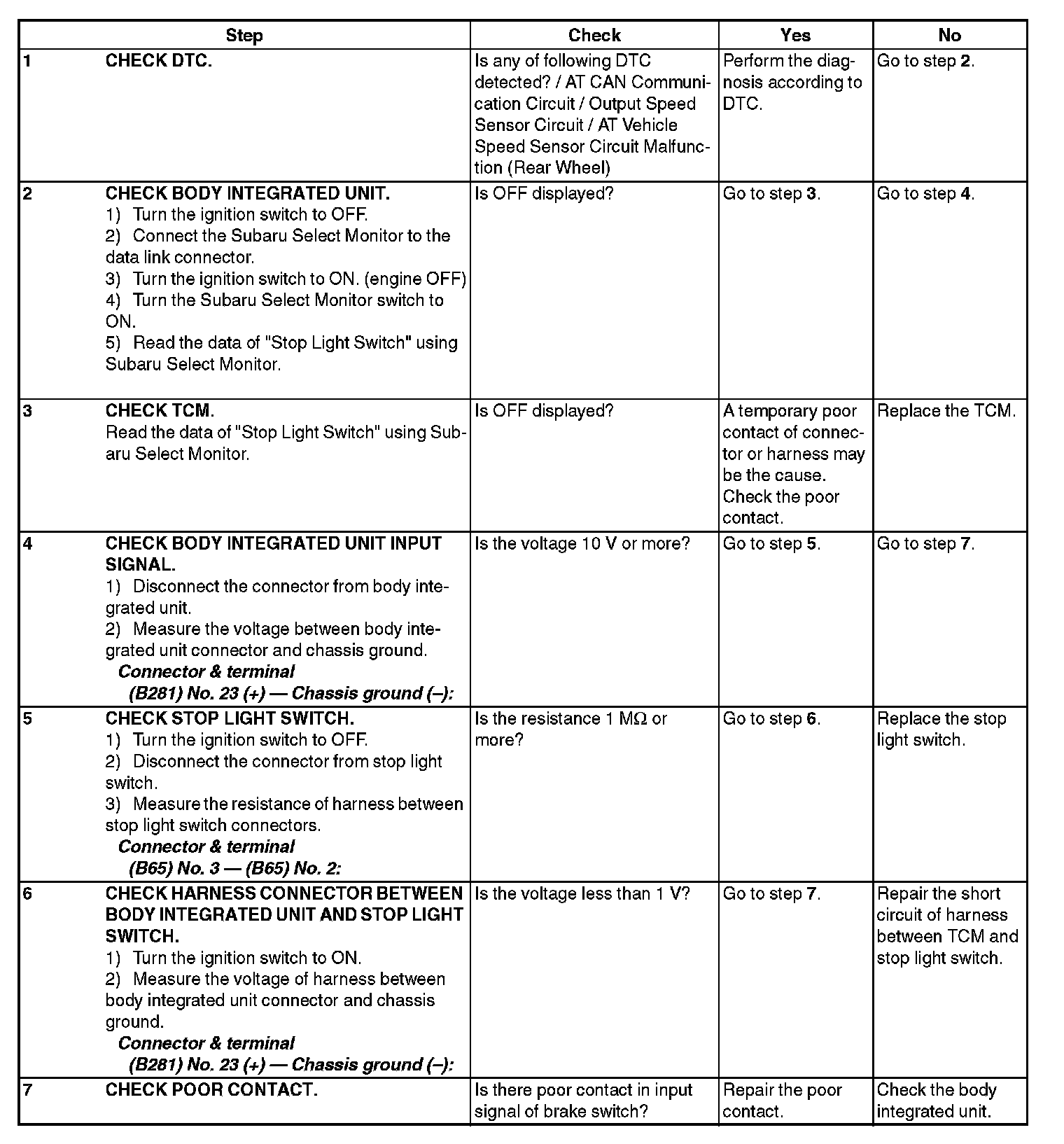

Step 1-Step 7:
