P0720

DTC P0720 OUTPUT SPEED SENSOR CIRCUIT

DTC DETECTING CONDITION:
^ AT vehicle speed signal is abnormal.
^ The harness connector between TCM and front vehicle speed sensor is shorted or open.

TROUBLE SYMPTOM:
^ Shifting quality malfunction
^ Driving performance is poor.

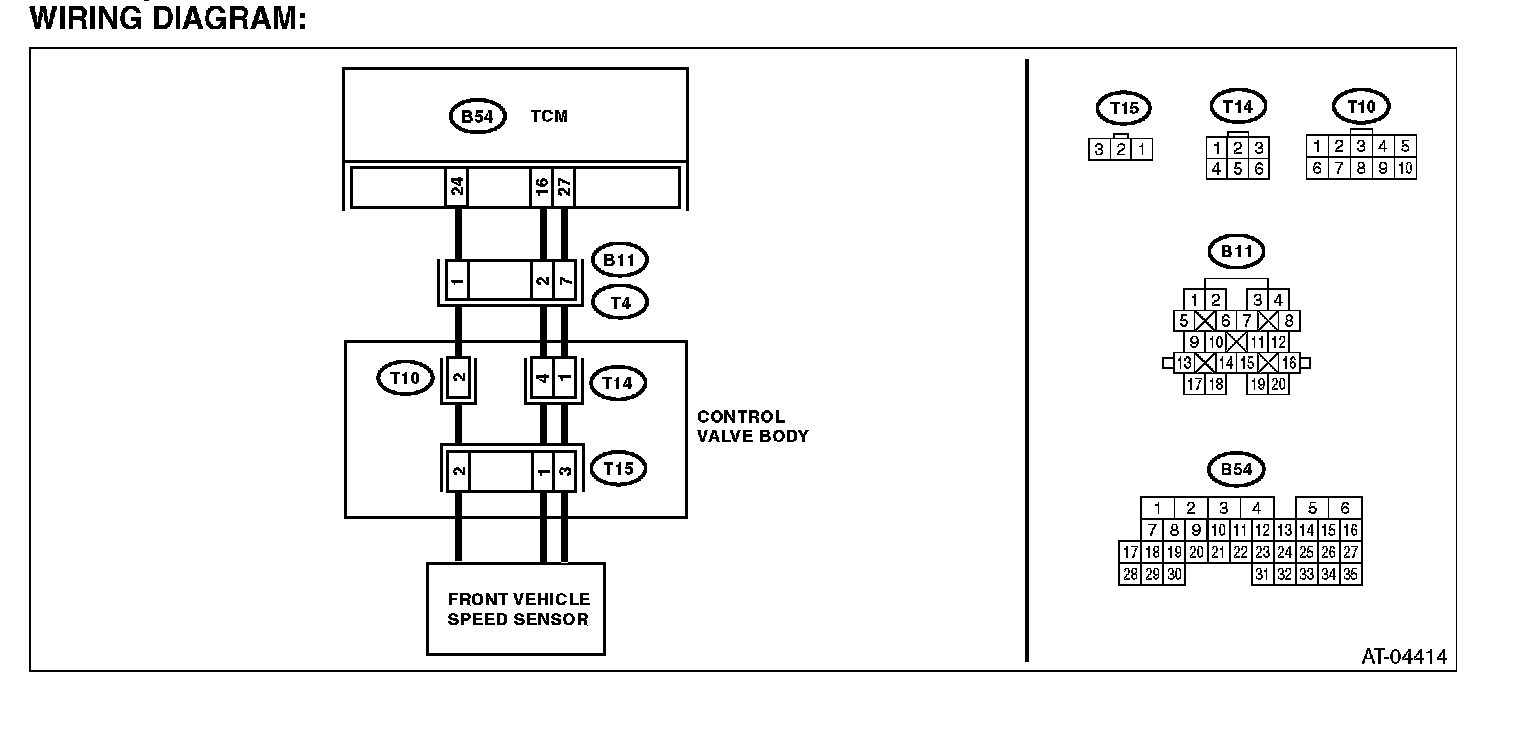

WIRING DIAGRAM:

Step 1-Step 6:

Step 7-Step 10:
