P0719

DTC P0719 BRAKE SWITCH CIRCUIT LOW

DTC DETECTING CONDITION:
Stop light switch malfunction, open input signal circuit

TROUBLE SYMPTOM:
Brake down control does not operate at S# mode.

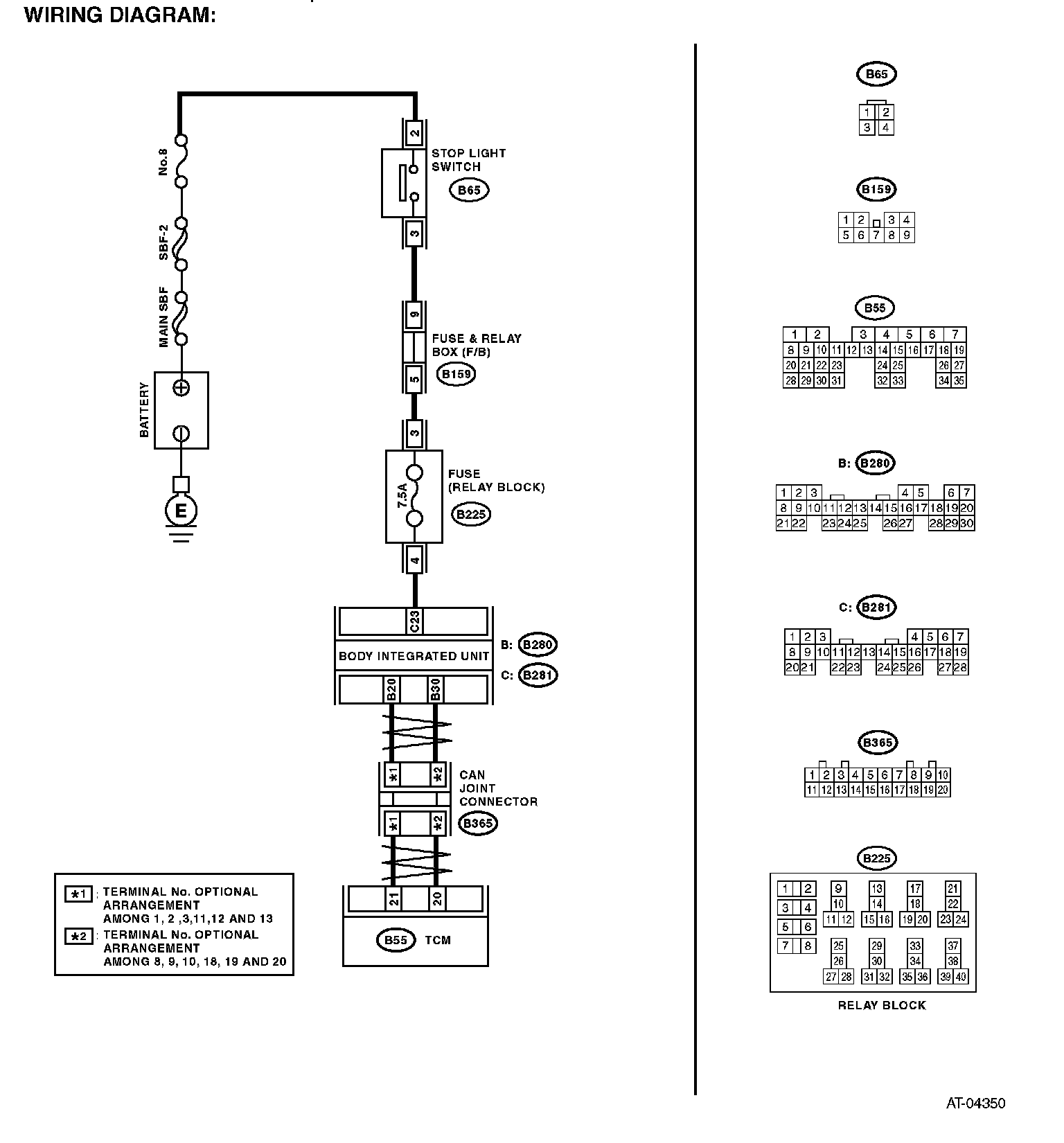

WIRING DIAGRAM:

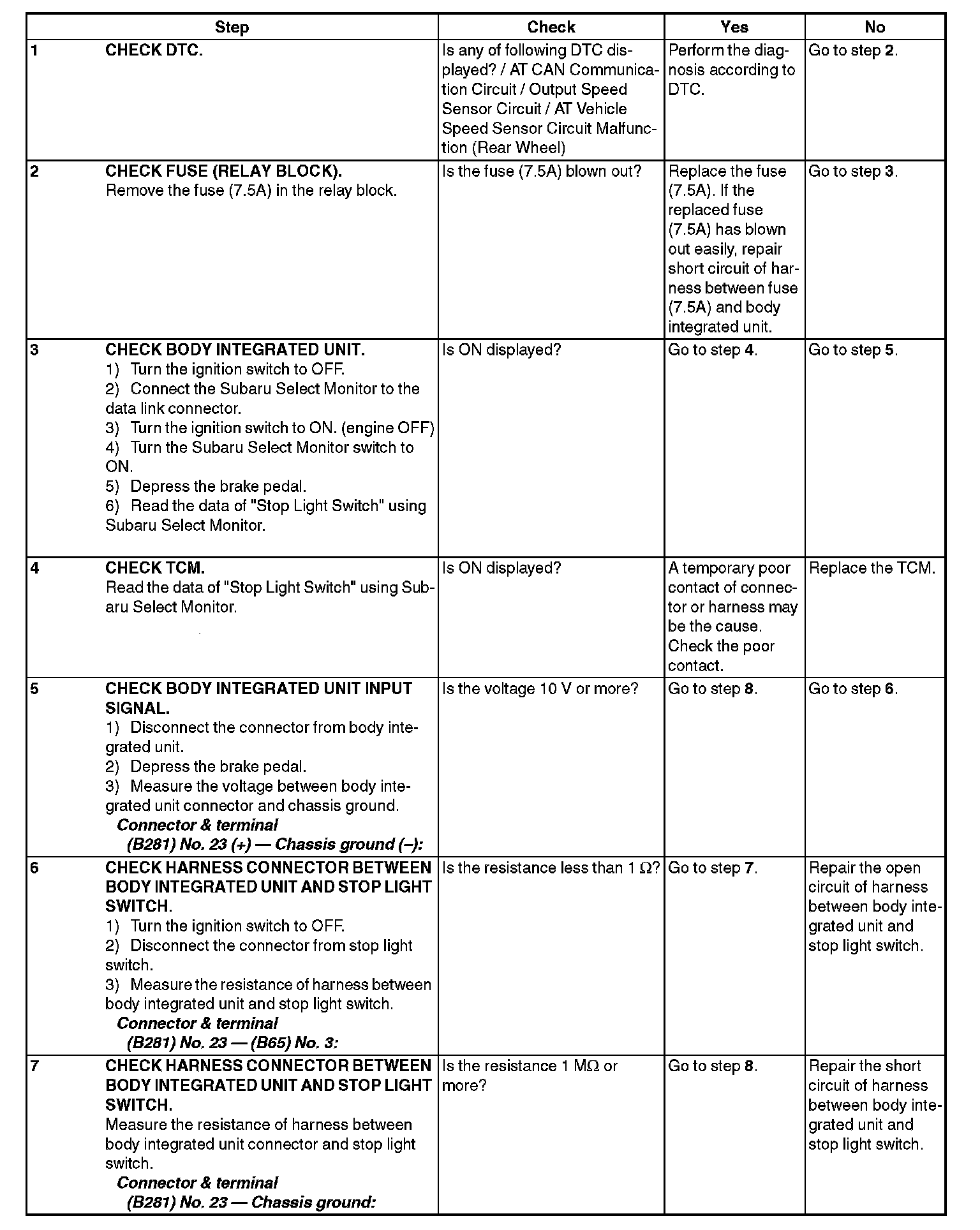

Step 1-Step 7:

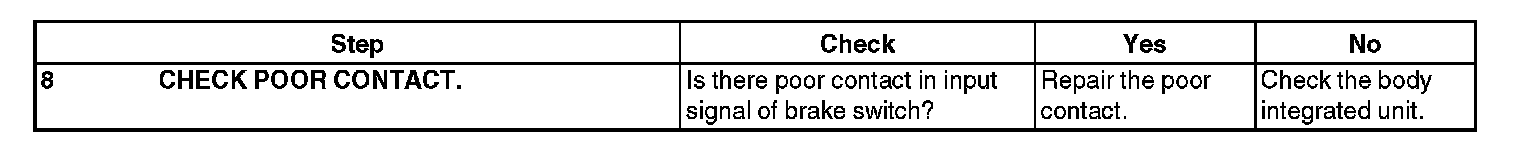

Step 8:
