P0715

DTC P0715 INPUT/TURBINE SPEED SENSOR CIRCUIT

DTC DETECTING CONDITION:
Input signal circuit of TCM is open or shorted.

TROUBLE SYMPTOM:
^ Excessive shift shock
^ Does not shift to 5th

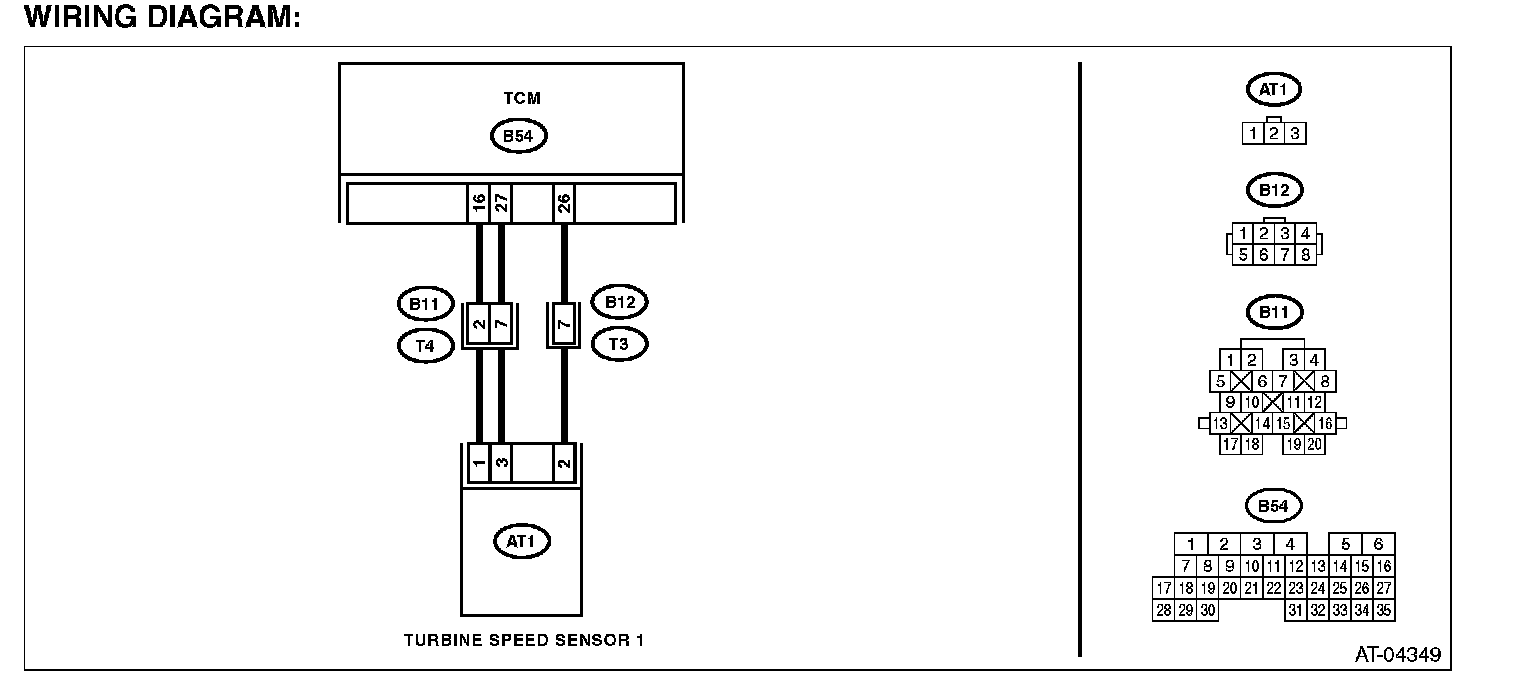

WIRING DIAGRAM:

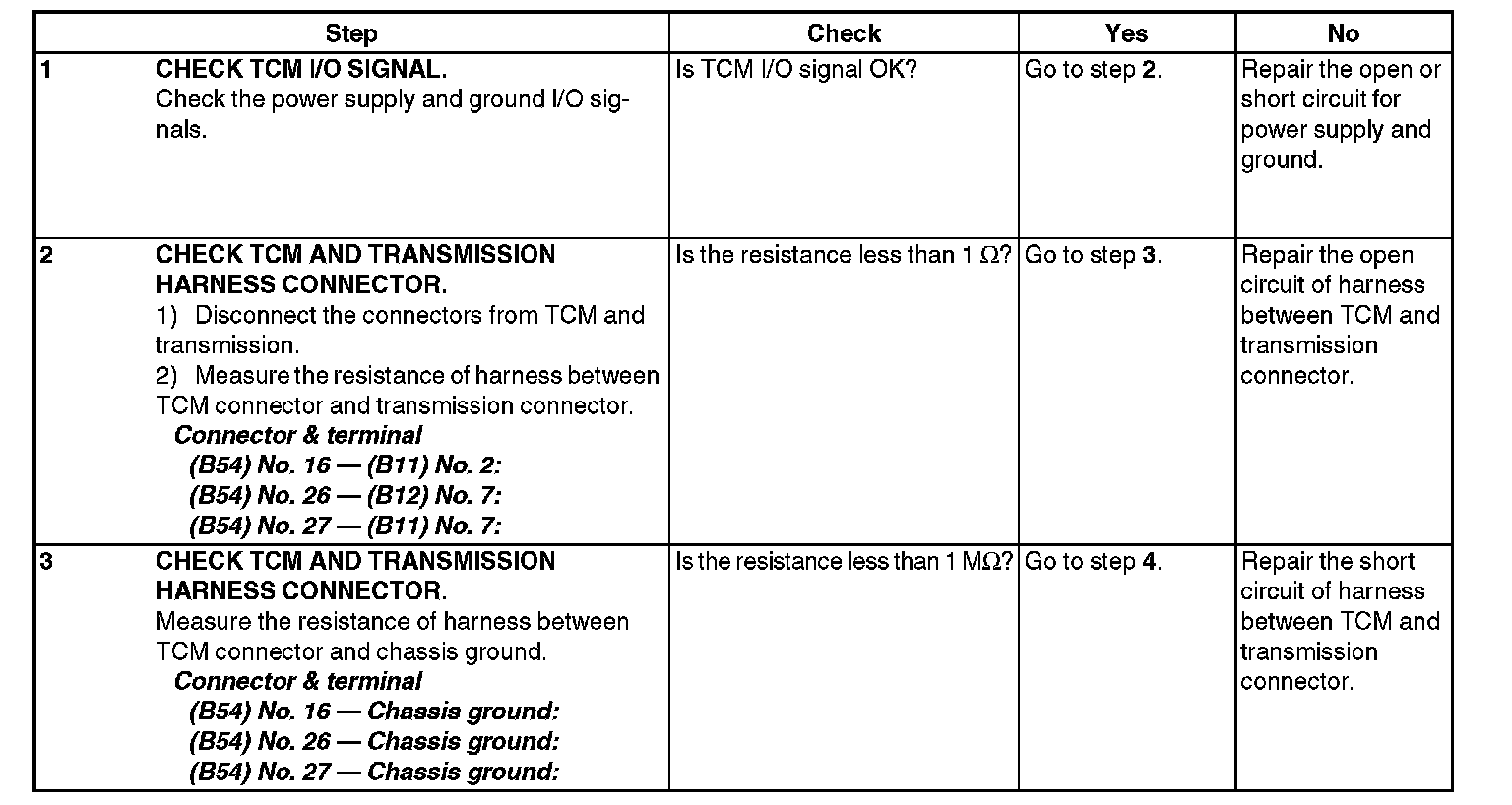

Step 1-Step 3:

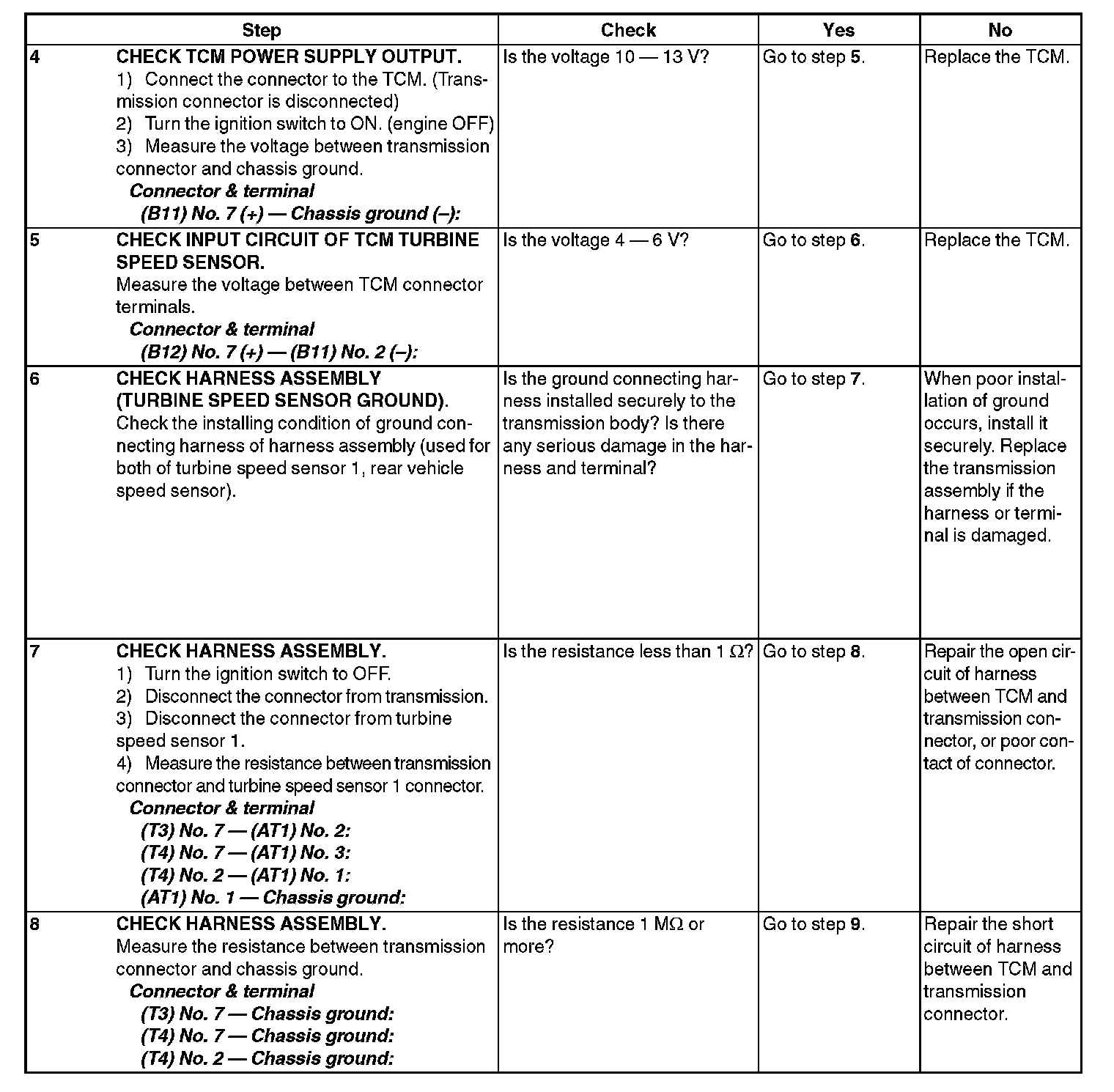

Step 4-Step 8:

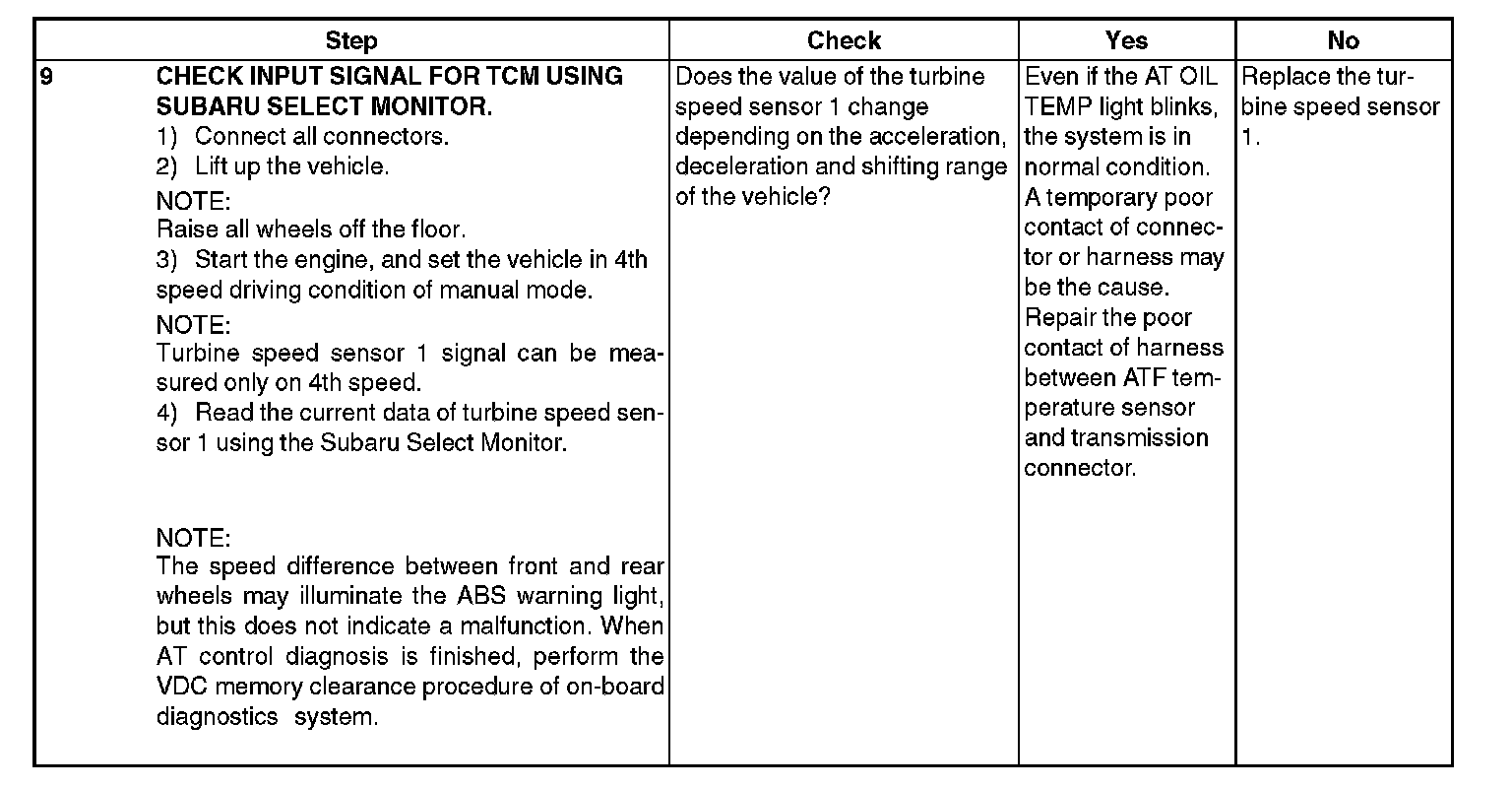

Step 9:
