P0713

DTC P0713 TRANSMISSION FLUID TEMPERATURE SENSOR CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
Input signal circuit to ATF oil temperature sensor is shorted.

TROUBLE SYMPTOM:
Excessive shift shock

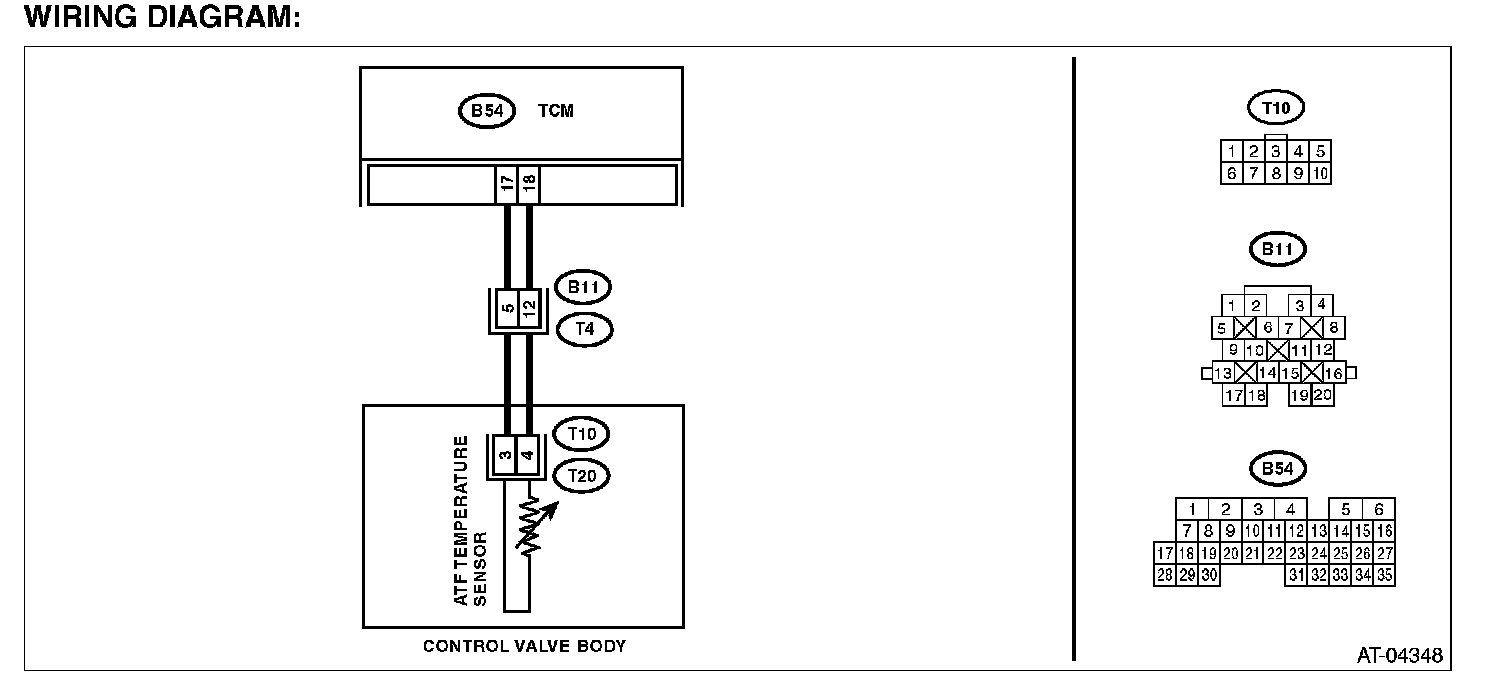

WIRING DIAGRAM:

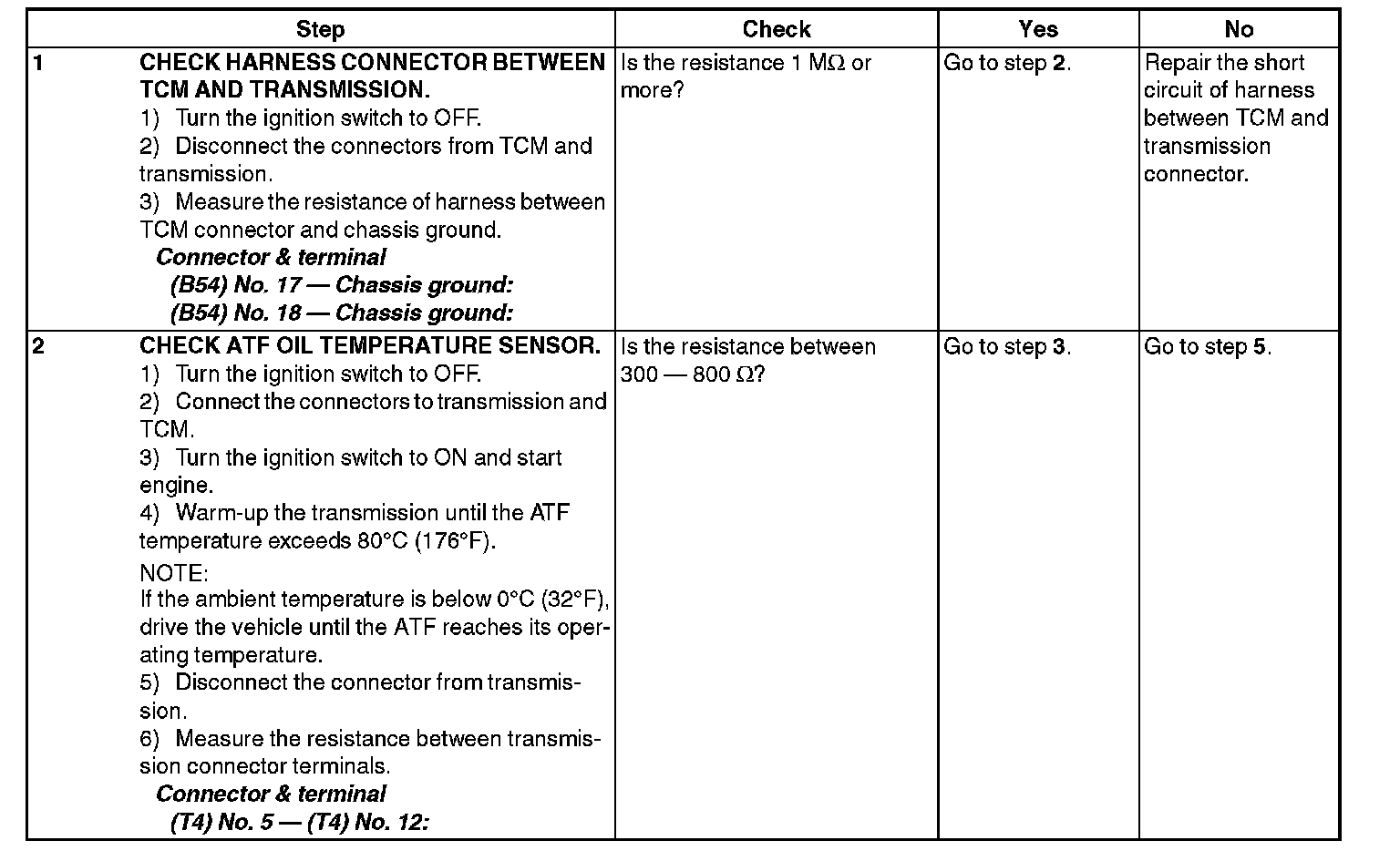

Step 1-Step 2:

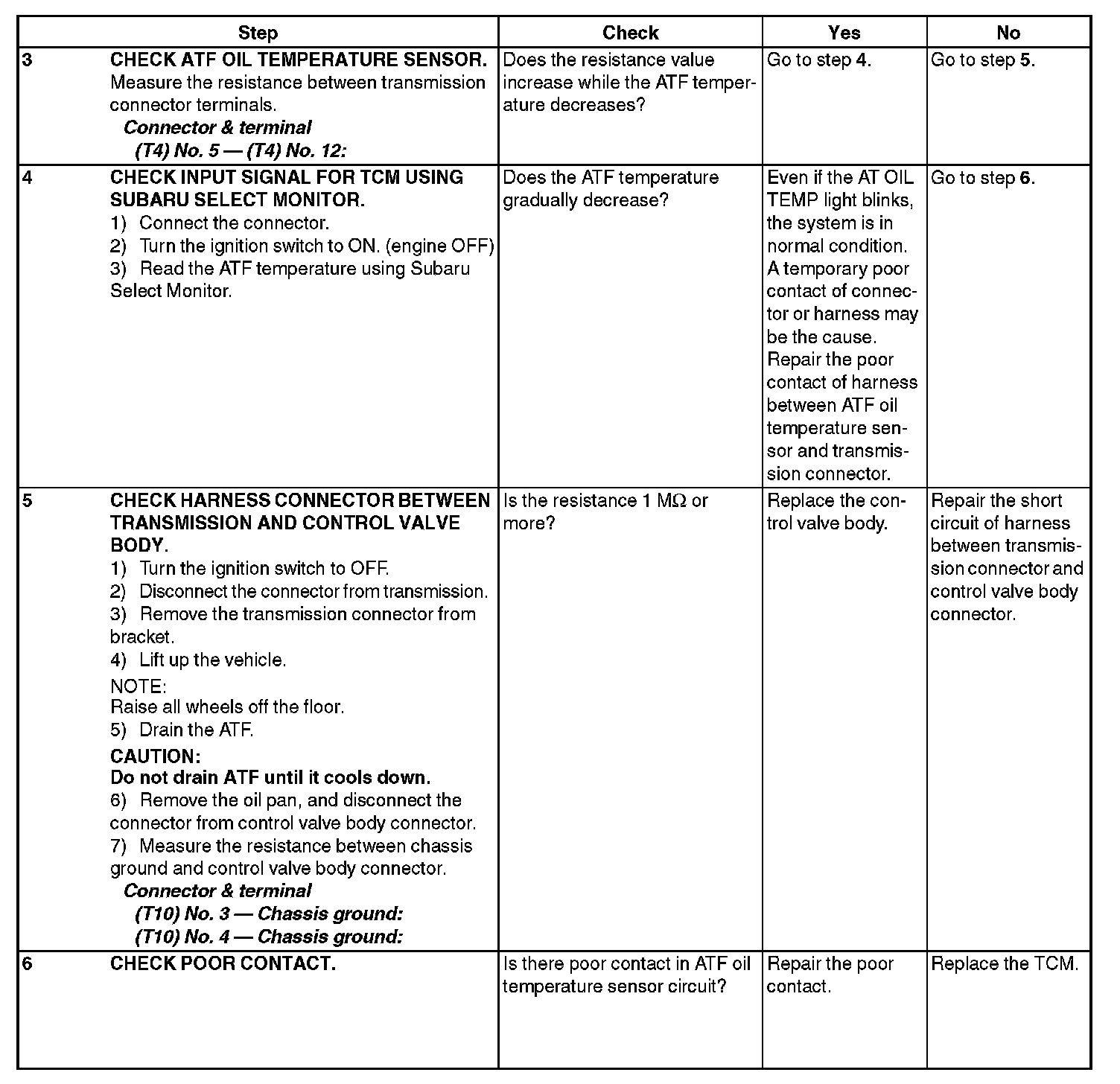

Step 3-Step 6:
