P0712

DTC P0712 TRANSMISSION FLUID TEMPERATURE SENSOR CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
Input signal circuit to ATF temperature sensor is open.

TROUBLE SYMPTOM:
Excessive shift shock

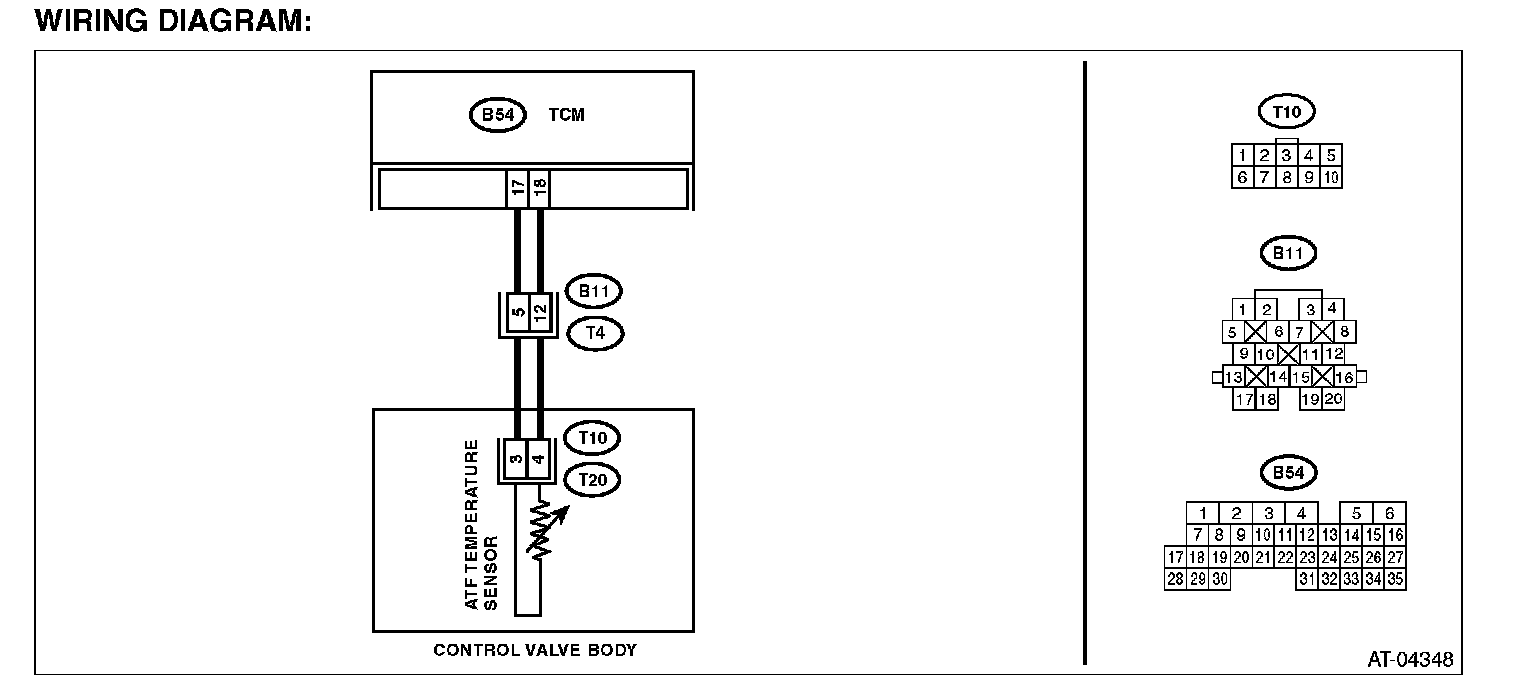

WIRING DIAGRAM:

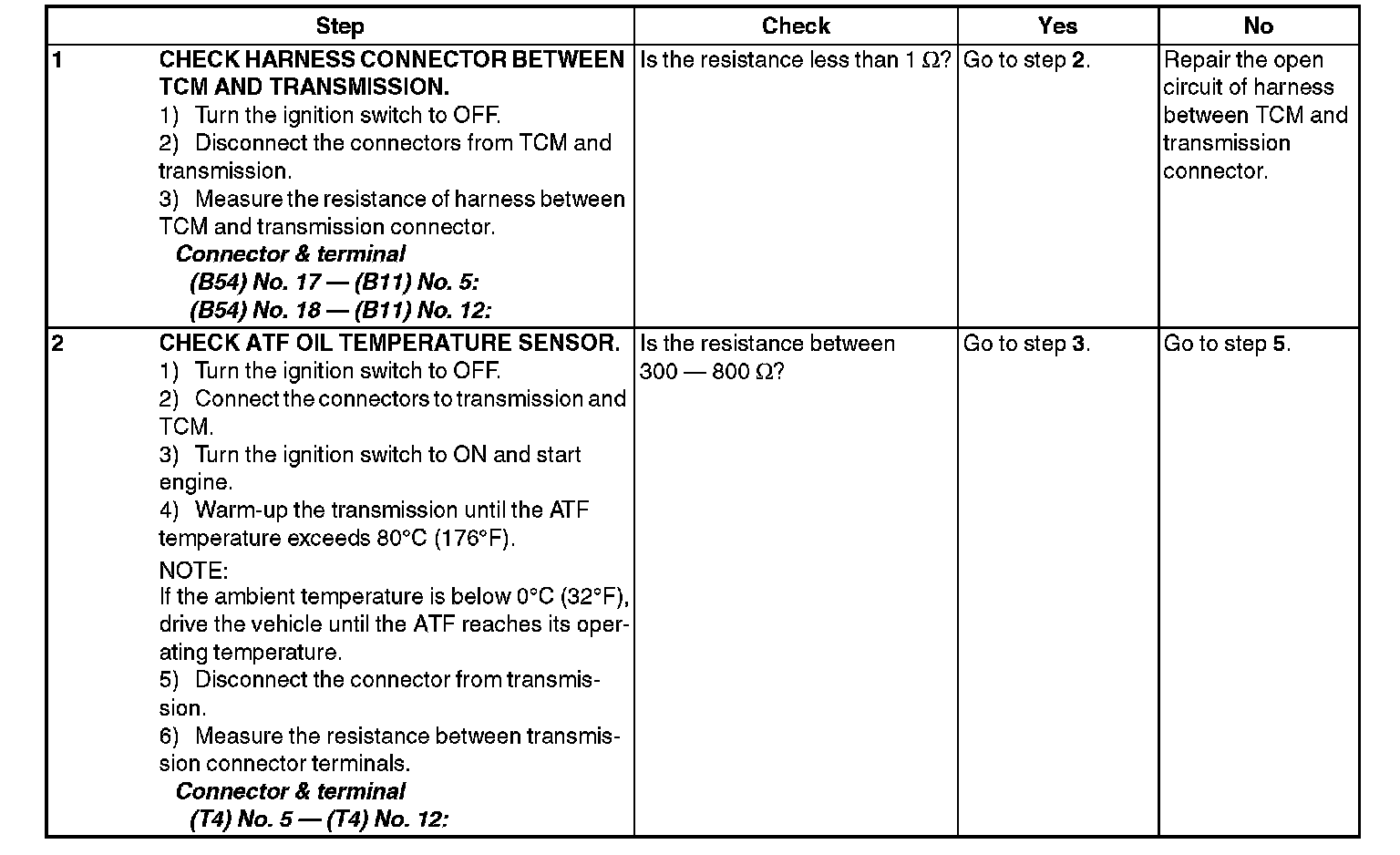

Step 1-Step 2:

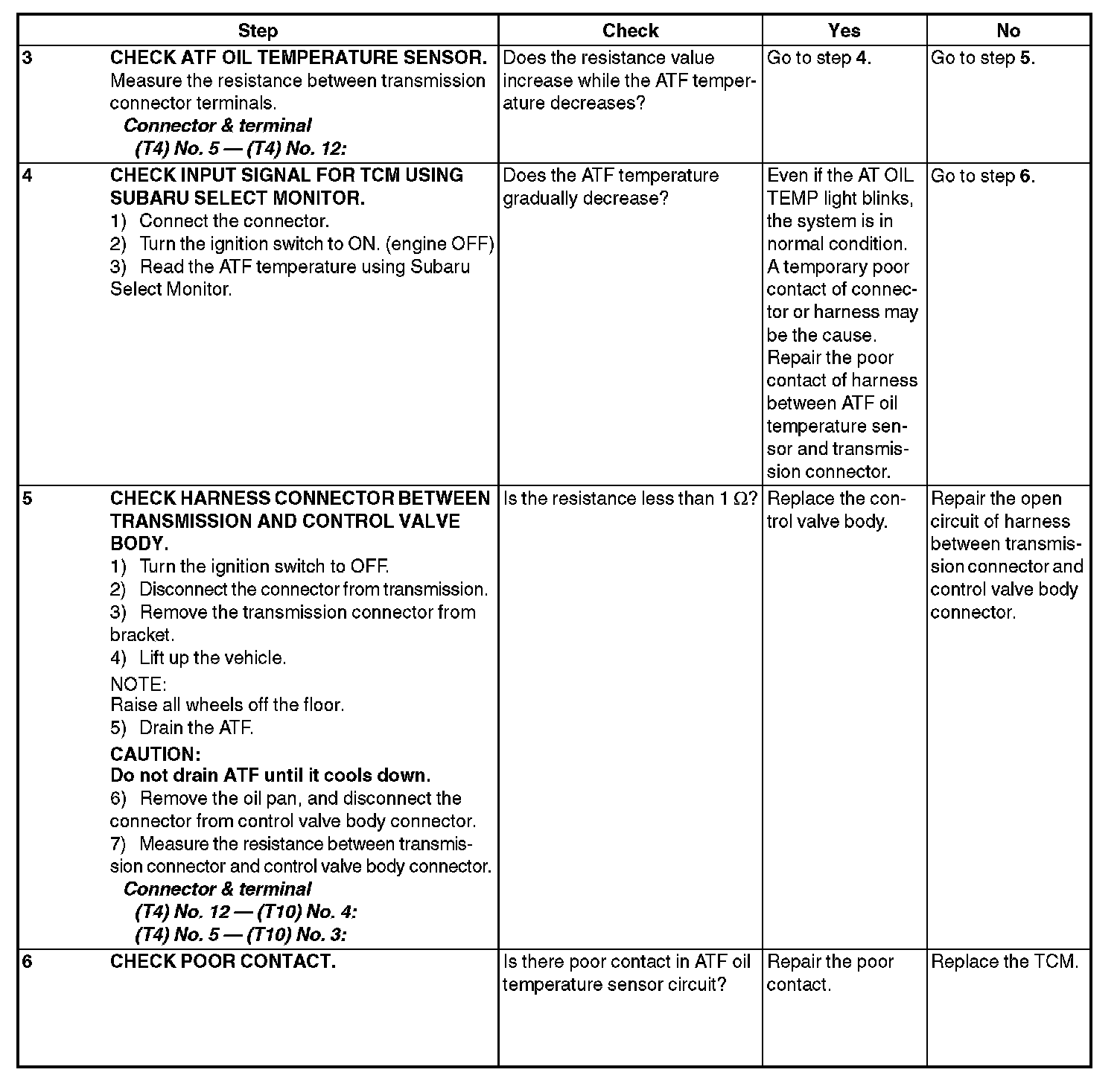

Step 3-Step 6:
