P0705

The content of this article / image reflects manual update #18-143-09 dated 09/21/09.

DTC P0705 TRANSMISSION RANGE SENSOR CIRCUIT (PRNDL INPUT)

DTC DETECTING CONDITION:
The inhibitor switch is open or short.

TROUBLE SYMPTOM:
^ Shift characteristics are erroneous.
^ Shift indicator light does not match with select lever.
^ Shift indicator light does not illuminate.
^ N-D, N-R shock occur.

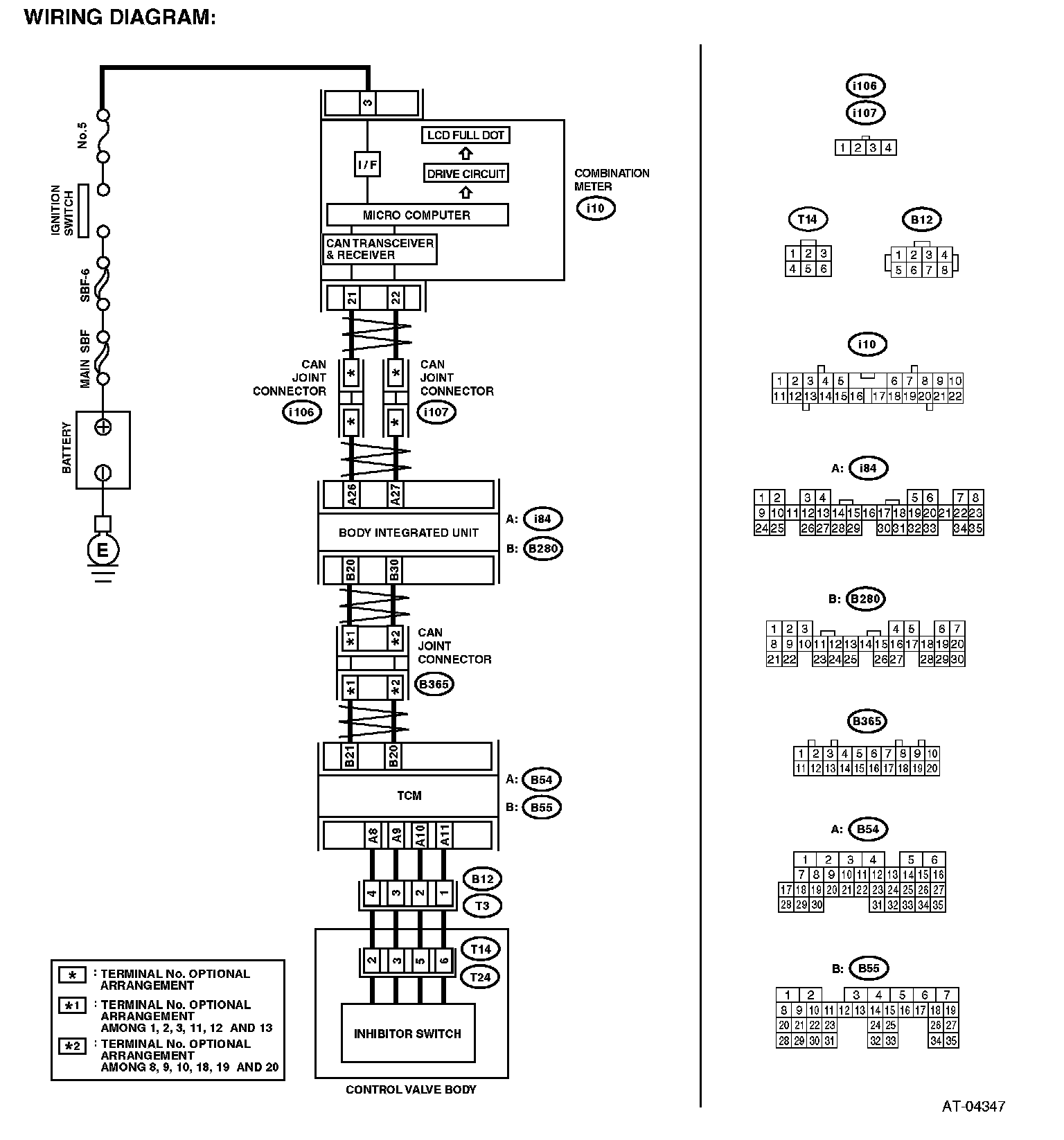

WIRING DIAGRAM:
