Engine - Diagnostics

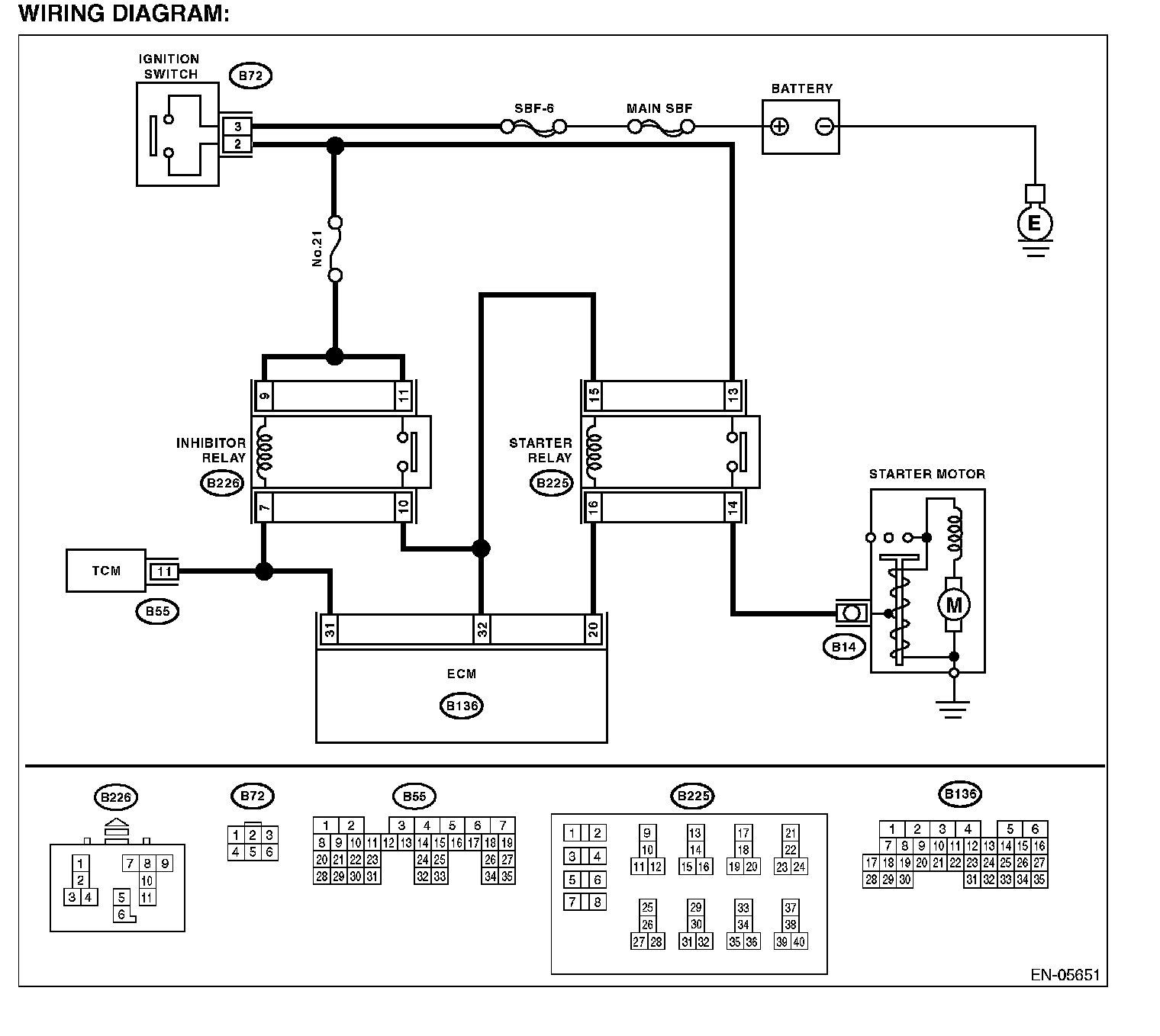

DTC P0512 STARTER REQUEST CIRCUIT

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
Failure of engine to start

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode
