Engine - Diagnostics

DTC P0458 EVAPORATIVE EMISSION SYSTEM PURGE CONTROL VALVE CIRCUIT LOW

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

TROUBLE SYMPTOM:
Improper idling

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

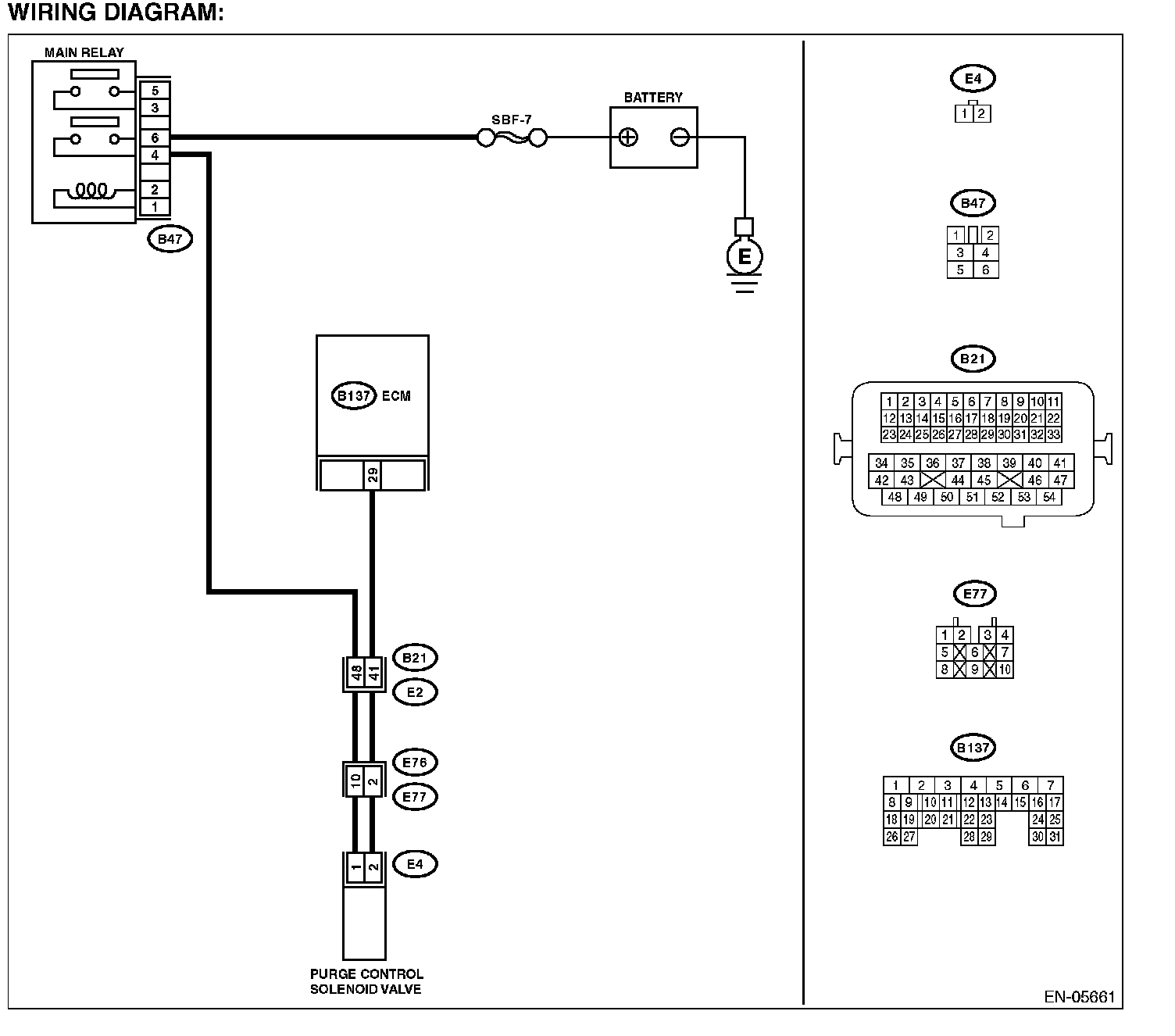

Wiring Diagram:

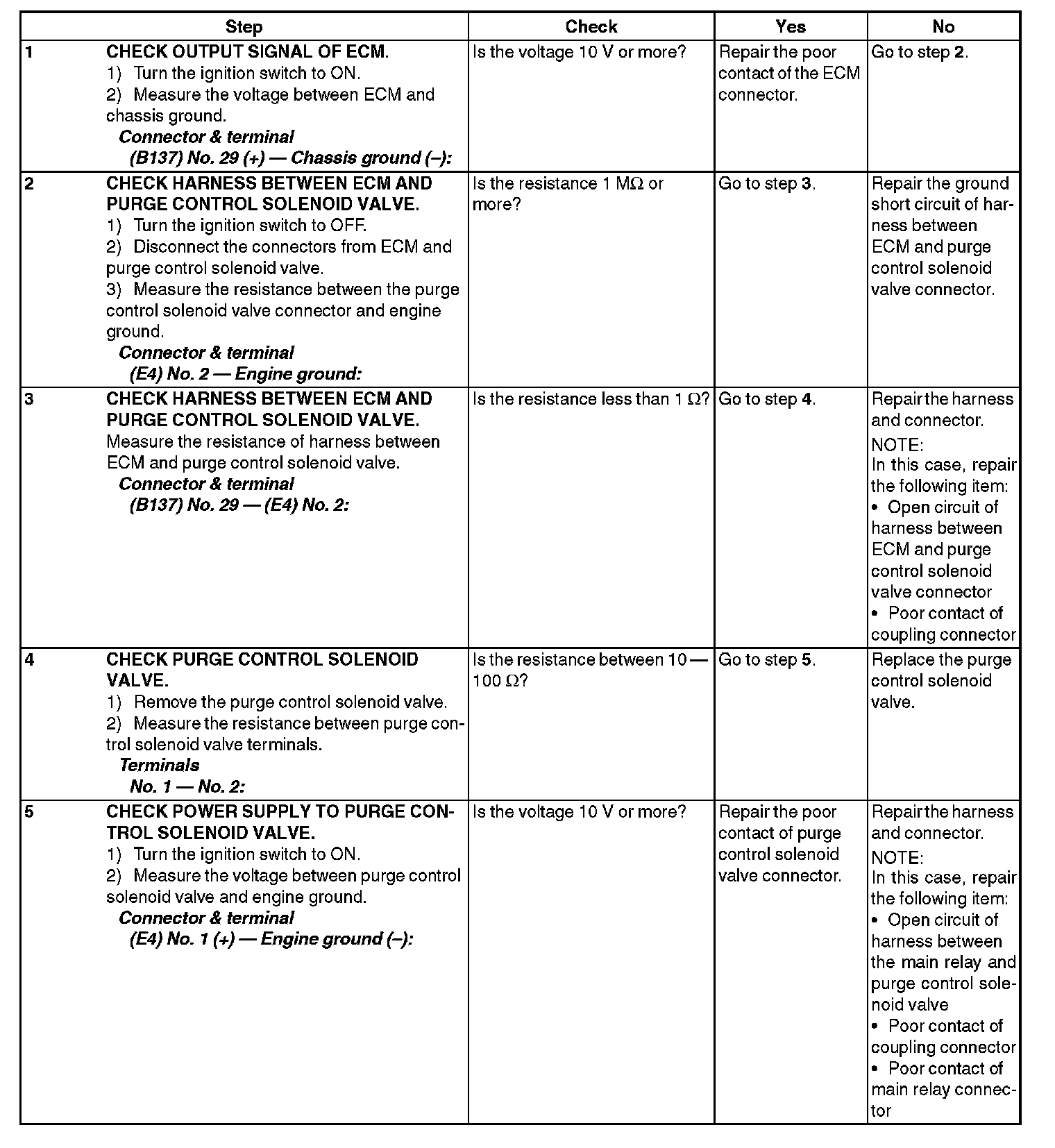

Step 1-5:
