Engine - Diagnostics

DTC P0196 ENGINE OIL TEMPERATURE SENSOR CIRCUIT RANGE/ PERFORMANCE

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

TROUBLE SYMPTOM:
- Hard to start
- Improper idling
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

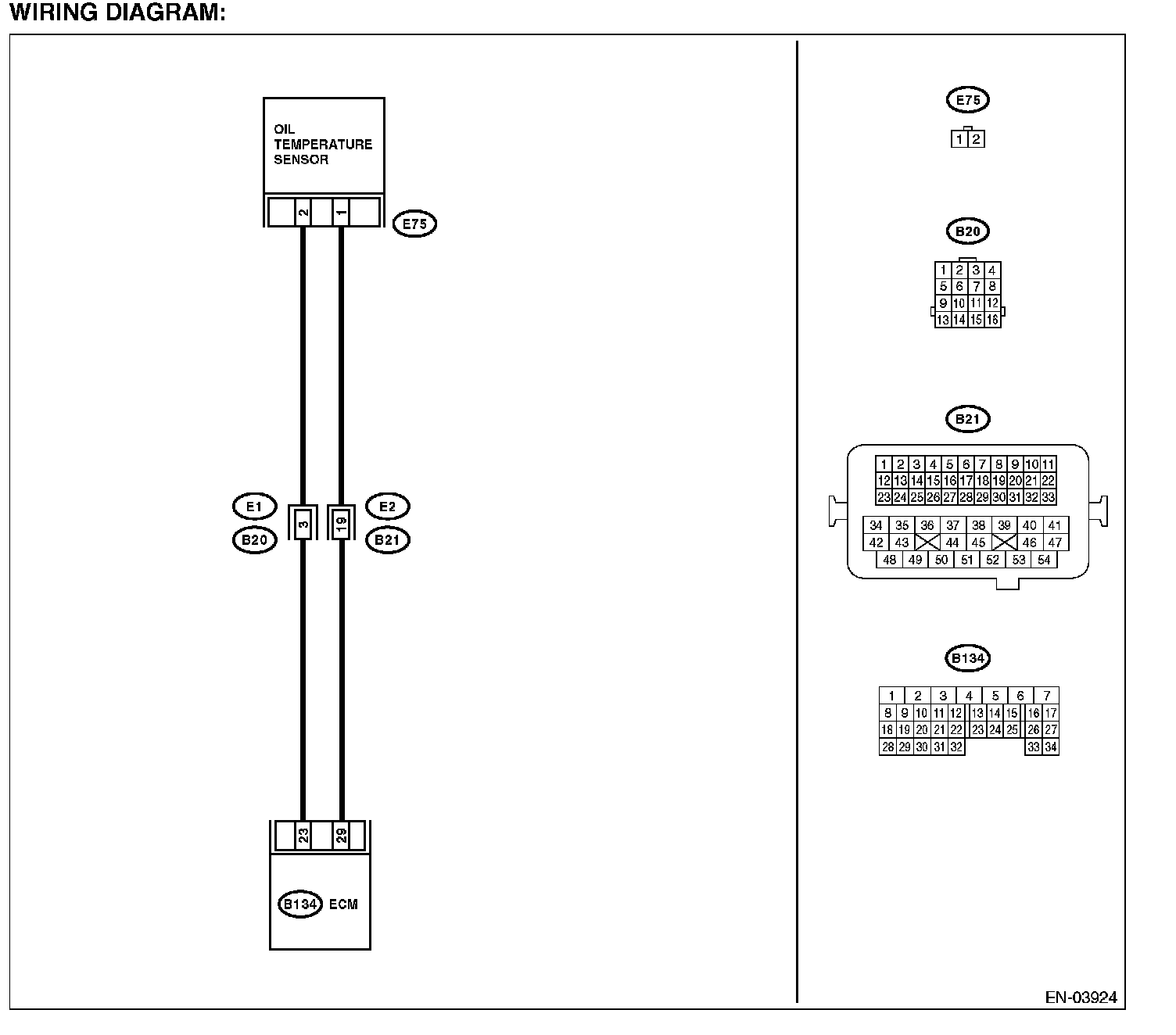

Wiring Diagram:

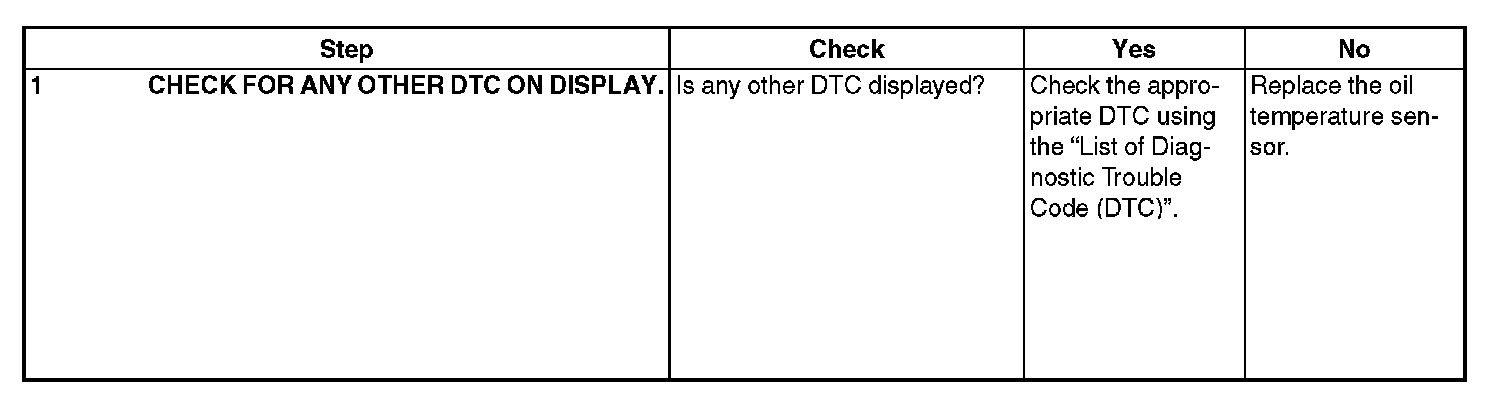

Step 1:
