Engine - Diagnostics

DTC P0183 FUEL TEMPERATURE SENSOR "A" CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

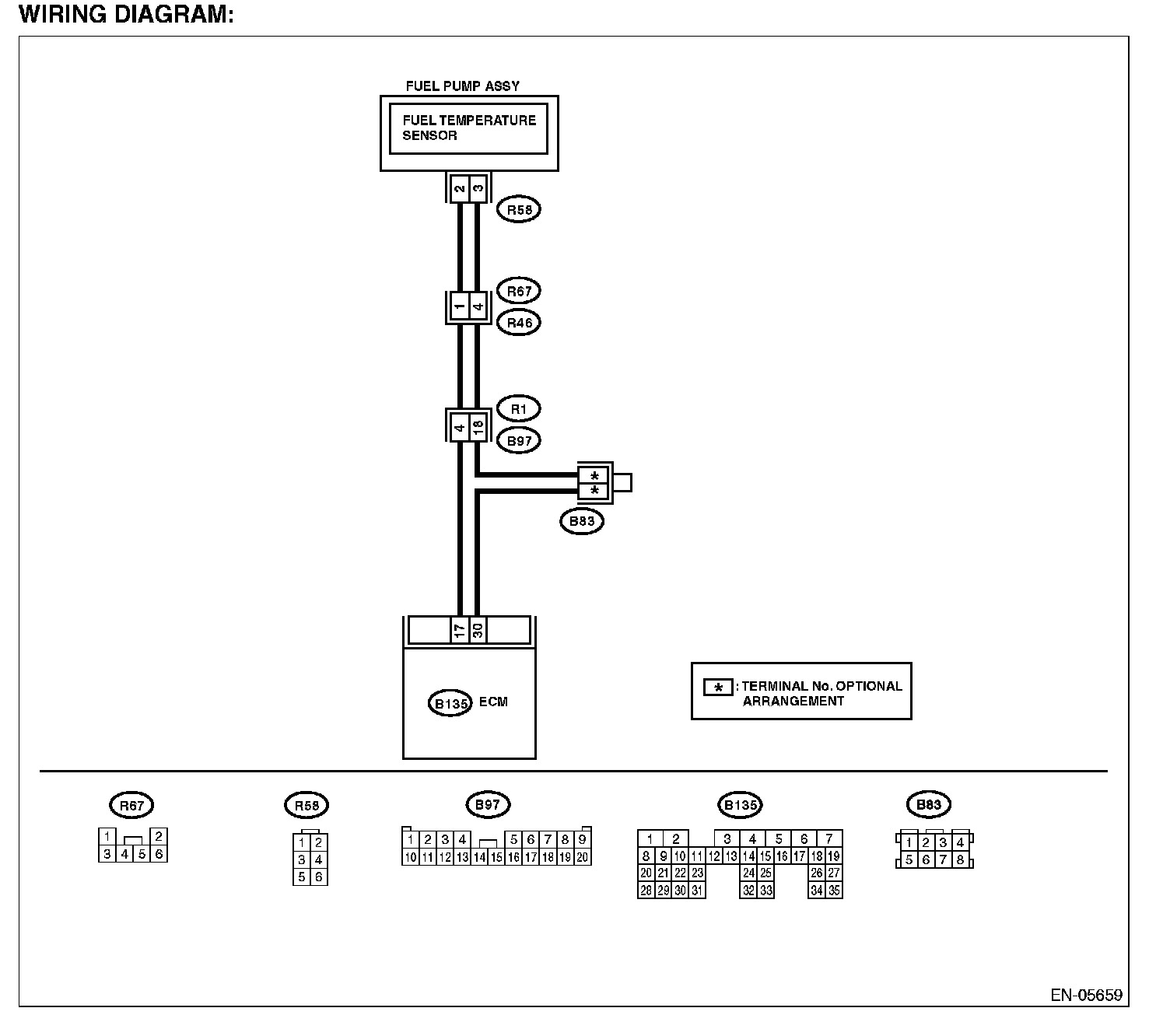

Wiring Diagram:






Step 1-4:
