Engine - Diagnostics

DTC P0182 FUEL TEMPERATURE SENSOR "A" CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

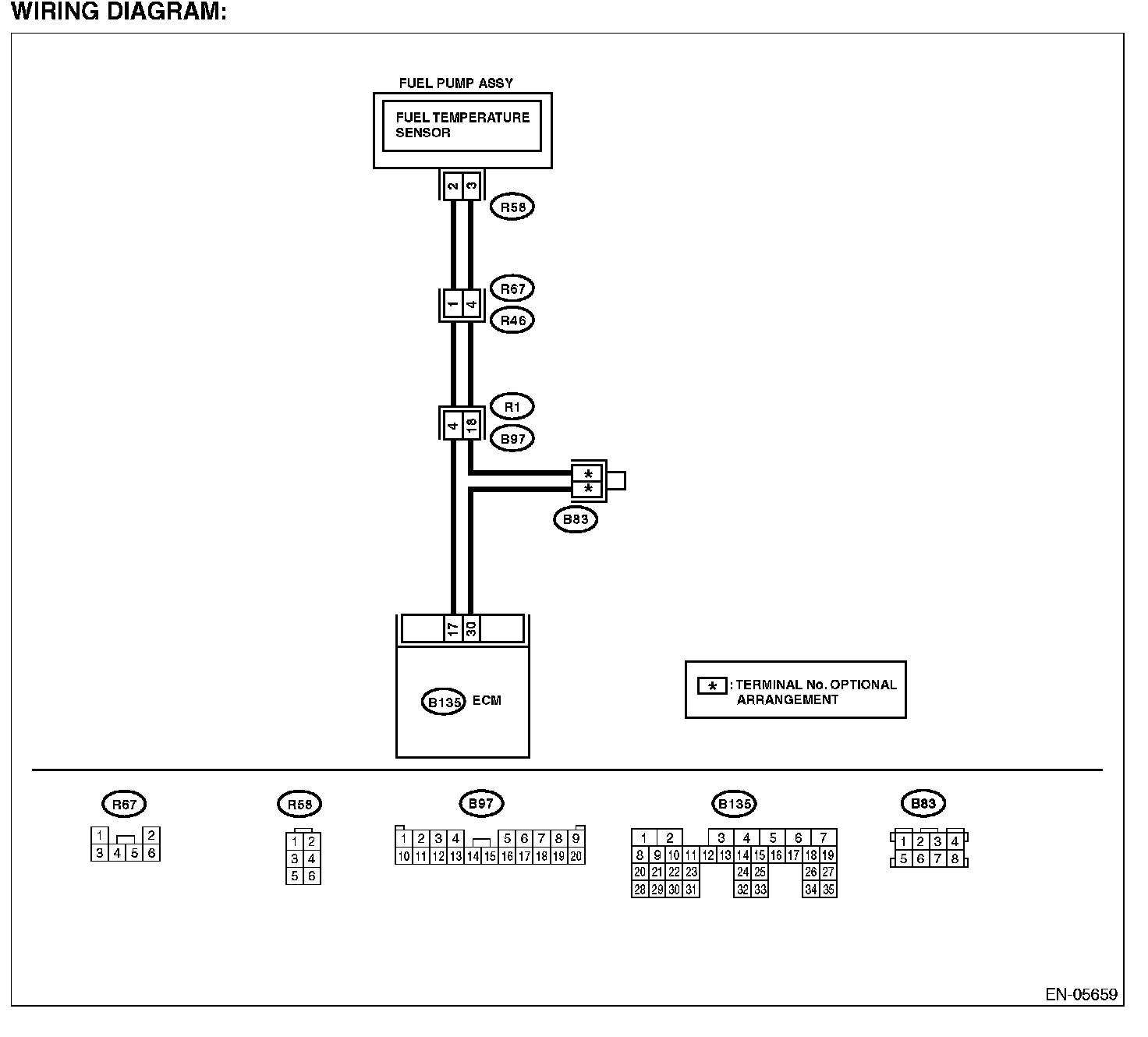

Wiring Diagram:

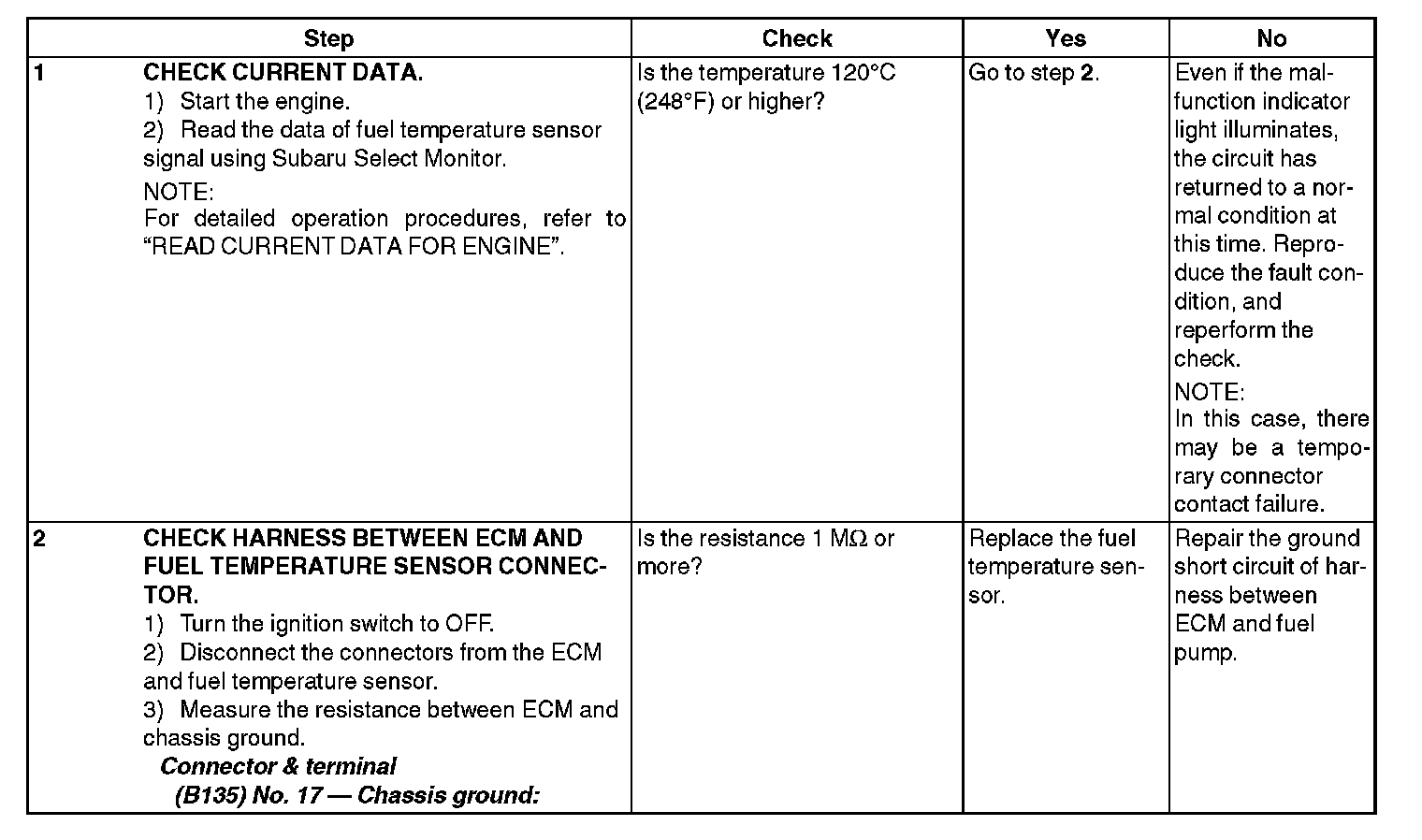

Step 1-2:
