DTC P0107 MANIFOLD ABSOLUTE PRESSURE/BAROMETRIC PRESSURE CIRCUIT LOW INPUT1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of intake manifold pressure sensor.
Judge as NG if out of specification.
2. COMPONENT DESCRIPTION

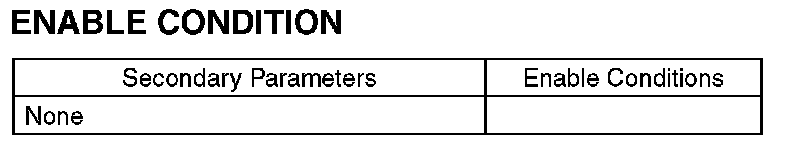

3. ENABLE CONDITION
4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
5. DIAGNOSTIC METHOD
- Abnormality Judgment

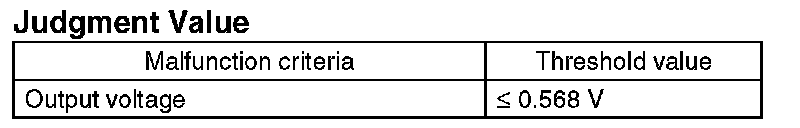

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.
Time Needed for Diagnosis: 500 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
- Normality Judgment

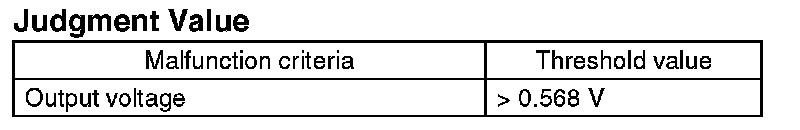

Judge as OK and clear the NG if the continuous time while the following conditions are established is more than the predetermined time.
Time Needed for Diagnosis: Less than 1 second
6. DTC CLEAR CONDITION
- When the OK idling cycle is completed 40 times in a row
- When "Clear Memory" is performed
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
- When the OK driving cycle is completed 3 times in a row
- When "Clear Memory" is performed
8. FAIL SAFE
- Intake manifold pressure sensor process: Estimate the pressure from the engine speed and size of the throttle opening. When the throttle opening is also NG, fix at 66.7 kPa (500 mmHg, 19.69 inHg).
- Heavy fuel judgment: Not allowed to carry out the heavy judgment.
- Fuel cut control: Fuel cut will operate at engine high speed.
- EVAP conc. learning (fuel): Not allowed to learn.
- Knocking compensation
When normal: Learning ignition advance angle value = knock F/B advance angle + entire learning advance angle value + portional learning advance angle value
Failure: learned ignition advance value = -6° CA. (6° CA retard)
Knock F/B advance angle value = 0° CA
Whole learning prohibited
Portional learning prohibited
- ISC control: ISC feedback amount calculation prohibited Amount of ISC open-loop compensation = Fixed at 6.82 %
- Purge control: Not allowed to purge.
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
