Engine - Diagnostics

DTC P0077 INTAKE VALVE CONTROL SOLENOID CIRCUIT HIGH (BANK 1)

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
Erroneous idling

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

Wiring Diagram:

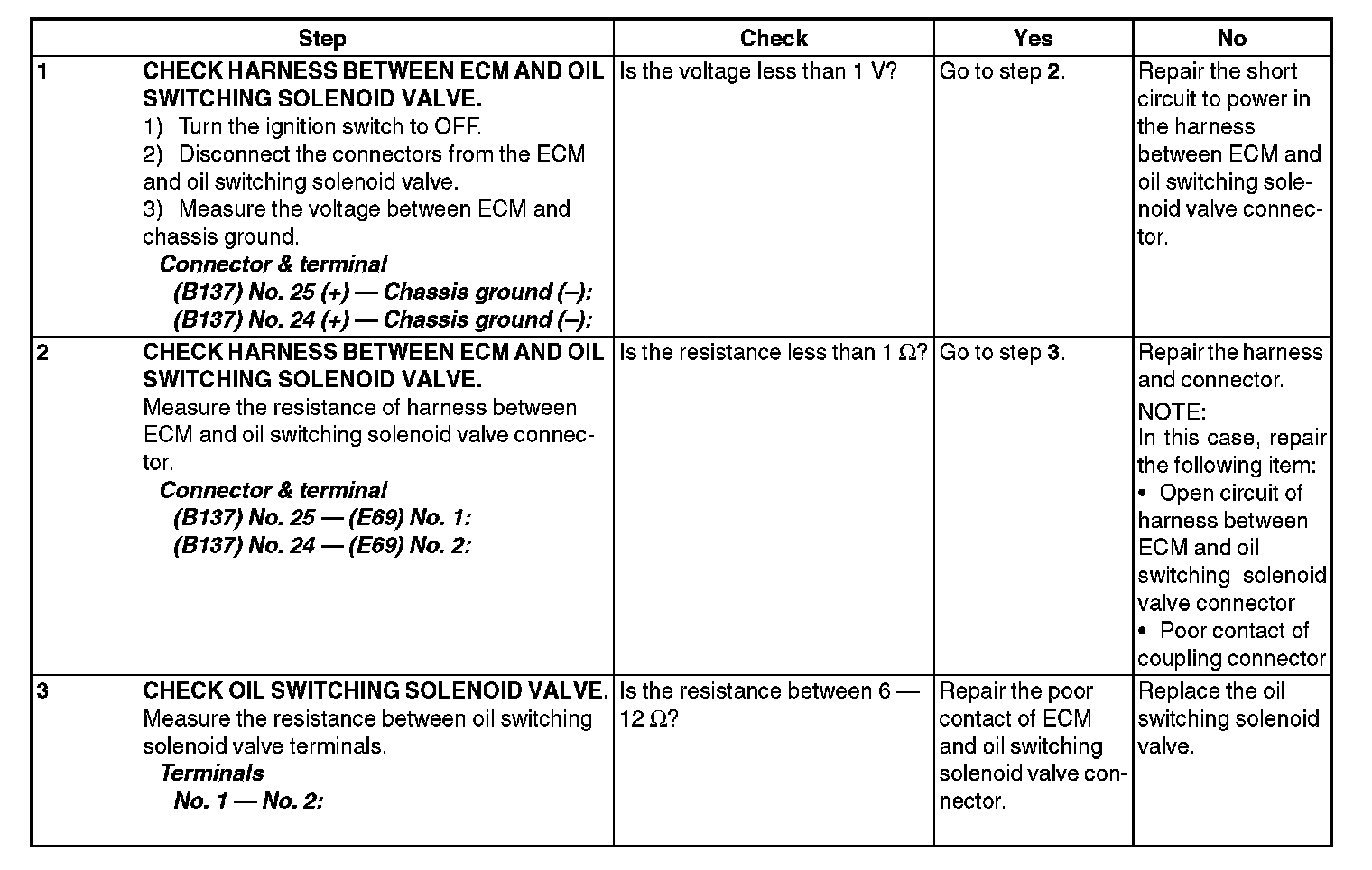

Step 1-3:
