Engine - Diagnostics

DTC P0028 INTAKE VALVE CONTROL SOLENOID CIRCUIT RANGE/ PERFORMANCE (BANK 2)

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
Improper idling

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

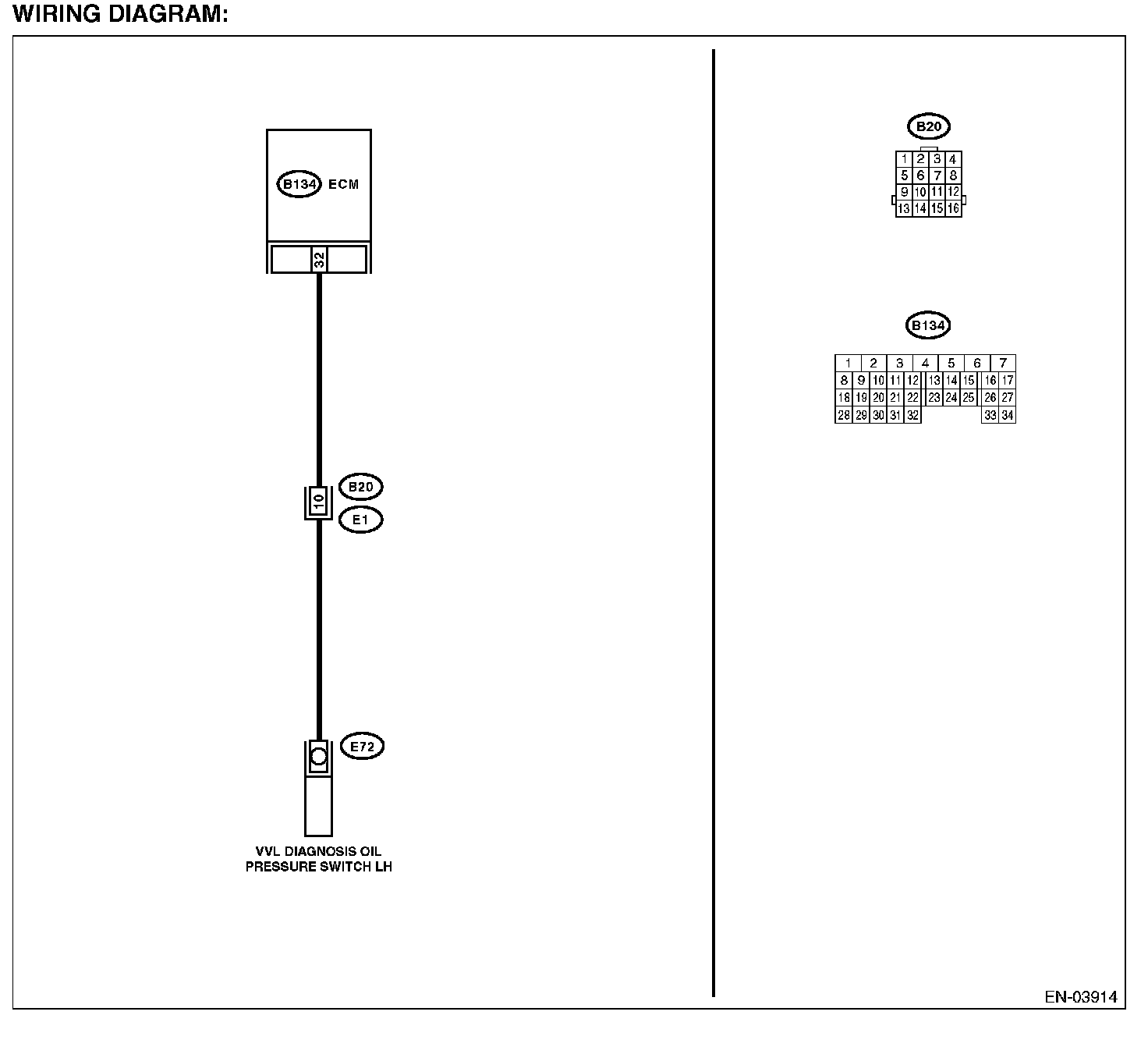

Wiring Diagram:






Step 1-5:
