Engine - Diagnostics

DTC P0026 INTAKE VALVE CONTROL SOLENOID CIRCUIT RANGE/ PERFORMANCE (BANK 1)

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
Improper idling

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

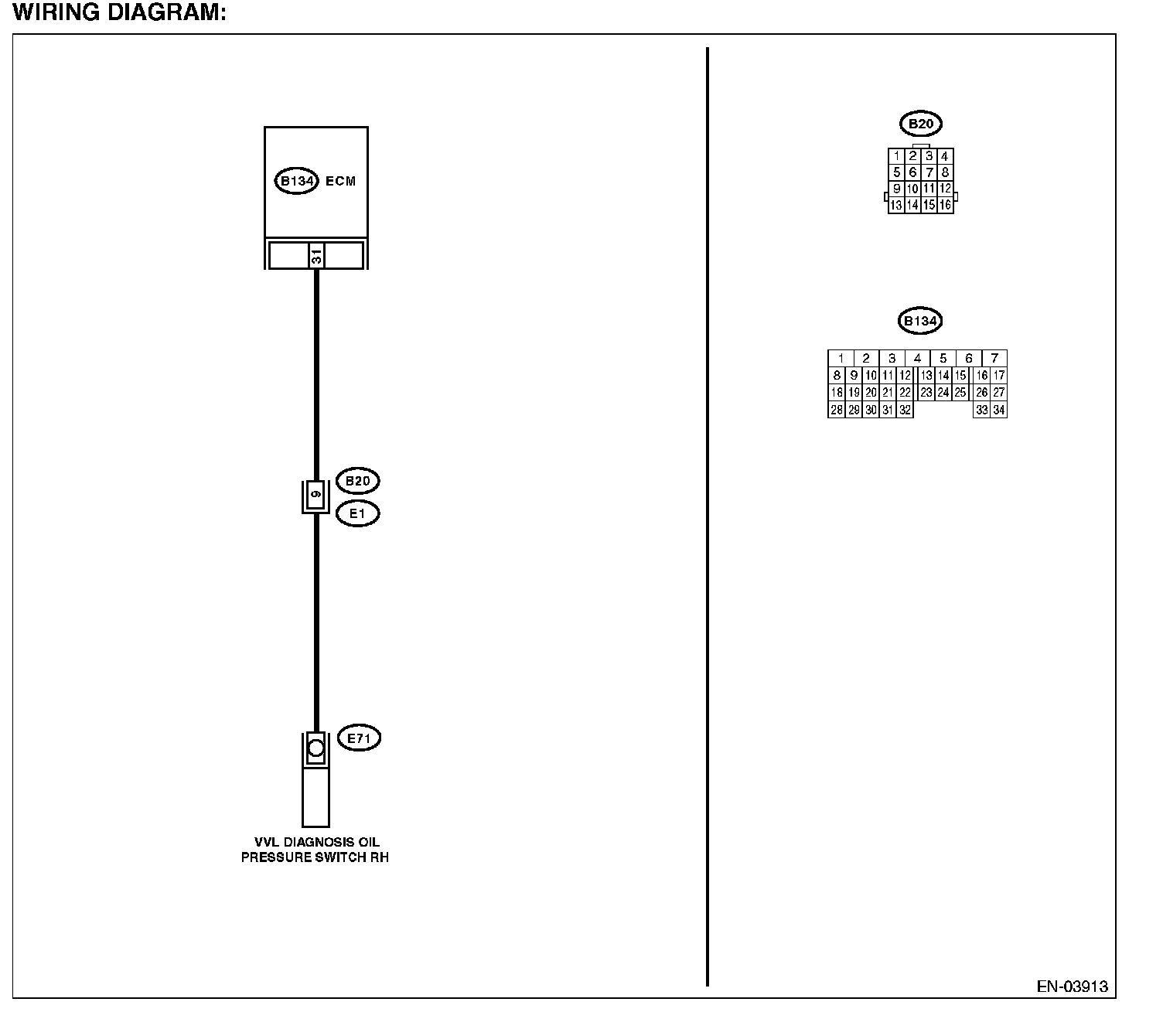

Wiring Diagram:

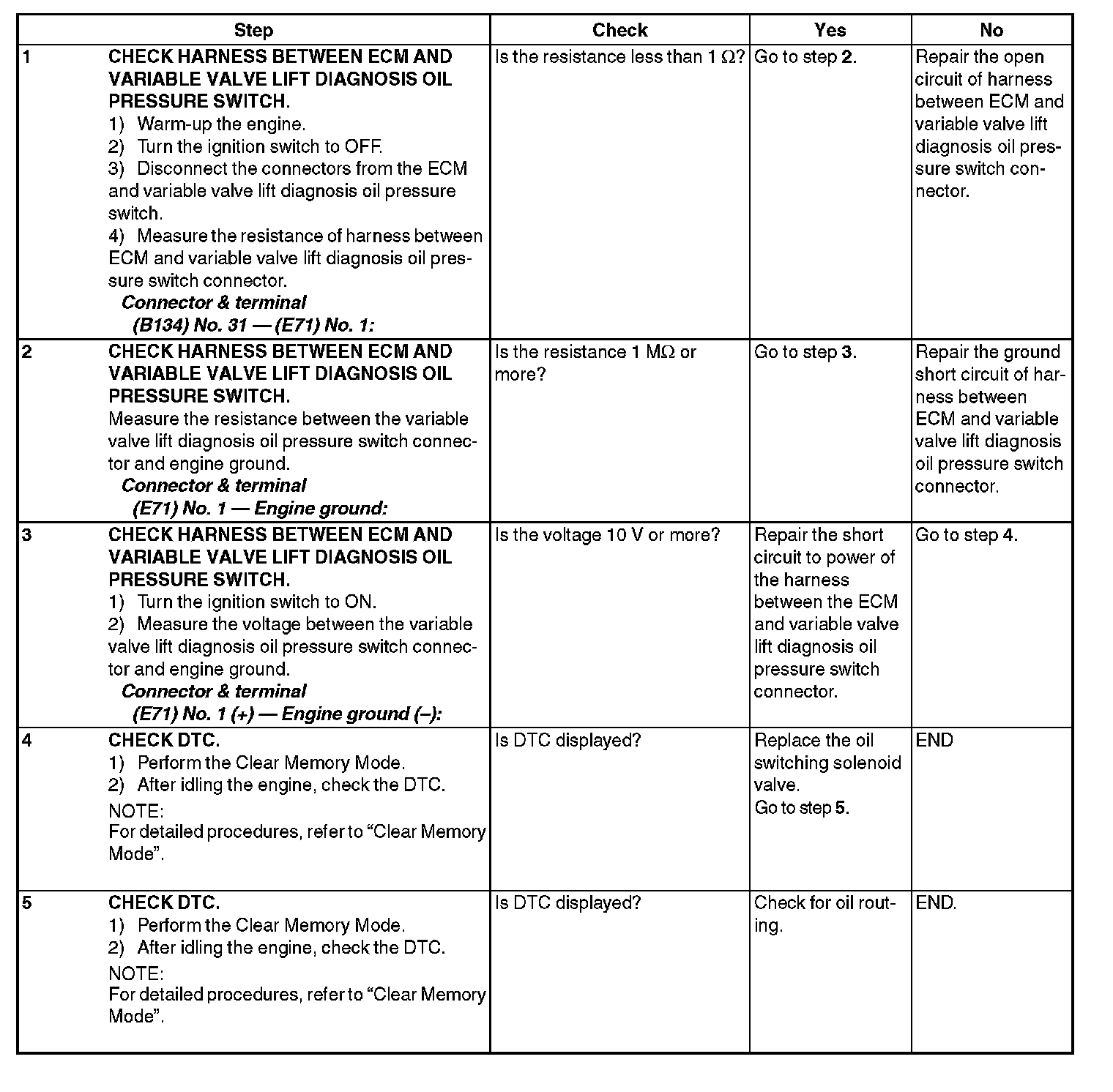

Step 1-5:
