Tire Pressure Monitoring System - Diagnosis
DTC 61 VEHICLE SPEED IS ABNORMALDTC DETECTING CONDITION:
Vehicle speed function codes were received from the transmitter, but the vehicle speed signal was not input to the module.
TROUBLE SYMPTOM:
Tire pressure warning light blinks 25 times and then illuminates.
WIRING DIAGRAM:
Wiring Diagram:

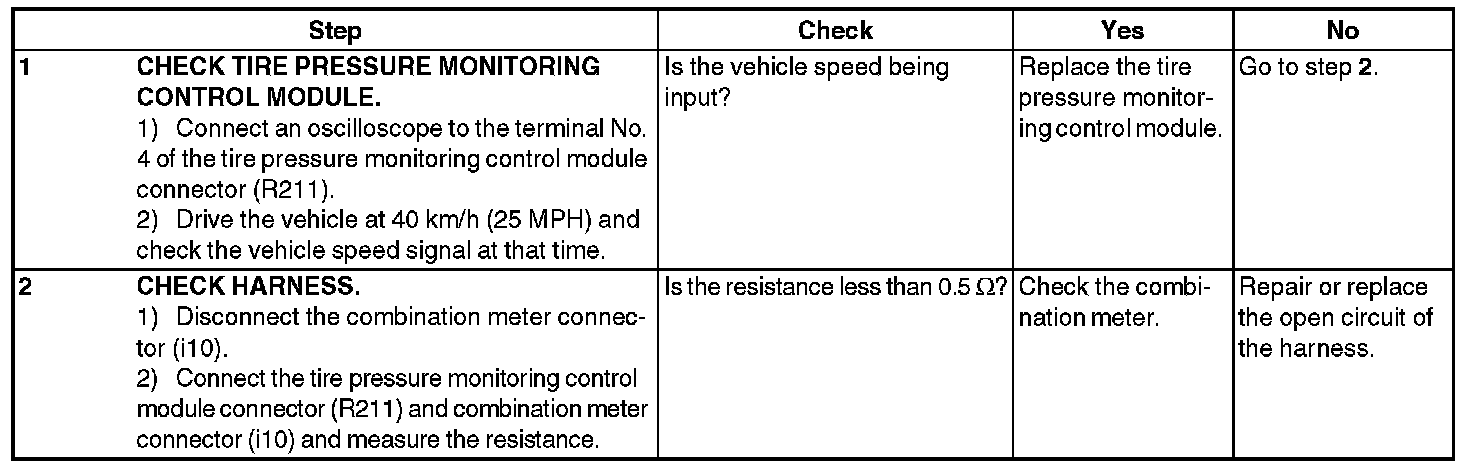

Step 1-2:
